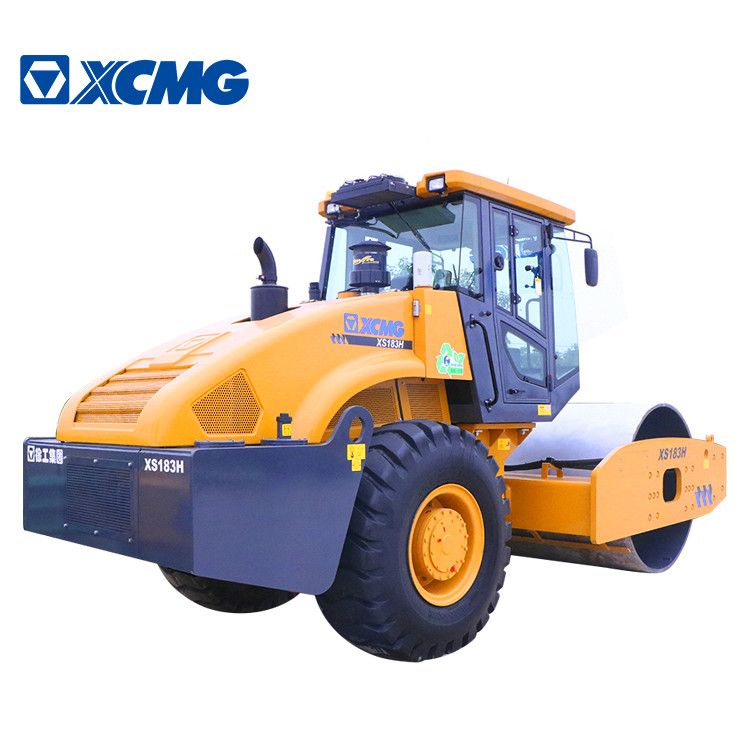

XCMG road equipment 18 ton vibratory roller XS183H single drum rollers compactor machine for sale
![](/app/topc/statics/images/close.png)
![XCMG road equipment 18 ton vibratory roller XS183H single drum rollers compactor machine for sale](http://www.machmall.com/images/store/357636/item/XS183H (6).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:18000kg
- Dimension(L*W*H):6220*2300*3200mm
- Power(W):140kW
- Model Number:XS183H
- Brand Name:XCMG
- Place of Origin:China
- Grade Ability:44%
- Travel Speed:0-8.5km/h
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- weight:18000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG road equipment 18 ton vibratory roller XS183H single drum rollers compactor machine.
XS183H vibratory
roller is a highly efficient and energy-saving super heavy machinery driven
single drum vibratory roller independently developed by XCMG. The overall
parameters of the product are reasonably matched. The applied China-IlI
Shangchai 7H electrically controlled high pressure common rail engine,
hydraulic damping control technology and hydrostatic transmission technology
are used to improve the operating comfort; The “three-in-one" combination
technology, optimized transmission system, so that the compaction performance
and efficiency can be effectively improved; Three-stage braking is adopted to
ensure the safety and reliability of the whole machine.
Performance Characteristics:
* Equipped with
China-III Shangchai high pressure common rail EFI diesel engine, achieves
optimal fuel consumption working area, reduces the comprehensive fuel
consumption by 10%, high power reserve.
* Reasonable
matched transmission system achieves the best compaction speed, the operating
efficiency is thus increased by 8%.
* The whole machine
adopts three level braking, service braking, parking braking and emergency
braking. After emergency braking, the engine will be flame out and the whole
machine is power off, safe and reliable.
* The vibration
damping device with combined stiffness is adopted in the cab and frame, which
significantly improves the working comfort of the operator.
Item |
Unit |
Parameter |
|
Work weight |
kg |
18000 |
|
Drive wheel distribution weight |
kg |
9000 |
|
Vibratory drum distribution weight |
kg |
9000 |
|
Static line load |
N/cm |
422 |
|
Vibration frequency |
Hz |
28/33 |
|
Theoretical amplitude |
mm |
1.9/0.95 |
|
Exciting force |
kN |
320/220 |
|
Speed range |
Ⅰ |
km/h |
0-5.5 |
Ⅱ |
km/h |
0-8.5 |
|
Wheelbase |
mm |
3180 |
|
Compaction width |
mm |
2130 |
|
Theoretical climbing ability |
% |
44 |
|
Minimum turning radius |
mm |
6500 |
|
Vibratory drum diameter |
mm |
1600 |
|
Minimum ground clearance |
mm |
440 |
|
Engine |
model |
- |
SC7H190G3 |
Rated speed |
r/min |
2200 |
|
Rated power |
kW |
140 |
|
Dimensions |
mm |
6220×2430×3200 |
|
Vibration system pressure |
MPa |
35 |
|
Steering system pressure |
MPa |
38 |
