XCMG new 14 ton single drum vibratory road roller XS143J China asphalt compactor equipment for sale
Summary
- Weight:14000kg
- Dimension(L*W*H):6010*2300*3200 mm
- Power(W):103kw
- Model Number:XS143J
- Brand Name:XCMG
- Place of Origin:China
- Grade Ability:30%
- Travel Speed:2-11km/h
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- Weight:14000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG new 14 ton
single drum vibratory road roller XS143J China asphalt compactor equipment.

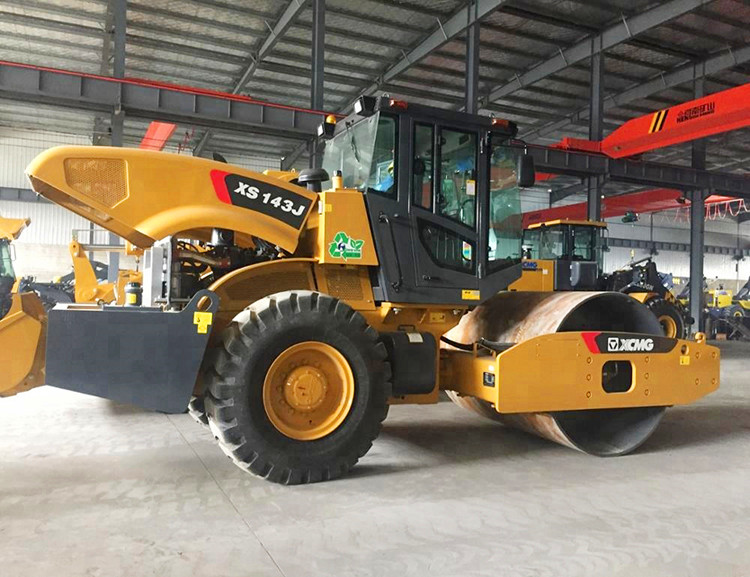

XS143J
Single drum vibratory roller has a very high static line load and exciting
force and is suitable to the compaction operation of pebbles, sandy soils,
moraine soil, blasting rock and clayey soil, etc. and it is also suitable to
the compaction of concrete and stabilized soil base materials in various large
projects; Thus, it is a kind of important compaction equipment in the
construction of large projects such as the expressway, railway, mine, port,
etc.
*
Use the H-series, water-cooling, fourcylinder four-stroke, direct injection
turbo charged and air-air intercooling low-speed diesel engine.
*
Rear drum hydraulic drive, adopt closed hydraulic drive system composed of
variable displacement piston pump and piston motor to ensure better drive
performance and gradeability.
*
Use the mechanical gear box with synchro mesh unit to realize convenient
operation.
*
Clutch is directly installed on the engine flywheel, and the operation
mechanism of main clutch is the air assisted mechanism which greatly reduces
the operating force.
*
Double frequency and double amplitude can meet the requirements of different
working conditions.
ltem |
Unit |
XS143J |
||
Service mass |
kg |
14000 |
||
Distributed mass of driving wheel |
kg |
7300 |
||
Distributed mass of vibration wheel |
kg |
6700 |
||
Static line load |
N/cm |
315 |
||
Vibration frequency |
Hz |
28/33 |
||
Theoretical amplitude |
mm |
1.9/0.95 |
||
Exciting force |
kN |
274/190 |
||
Range of speed |
Forward |
I |
km/h |
2.85 |
II |
km/h |
5.08 |
||
III |
km/h |
11.17 |
||
Backward |
I |
km/h |
2.88 |
|
II |
km/h |
5.02 |
||
Wheel base |
mm |
3040 |
||
Compaction width |
mm |
2130 |
||
Theoretical gradeability |
% |
30 |
||
Minimum turn radius |
mm |
6800 |
||
Diameter of vibration wheel |
mm |
1523 |
||
Minimum ground clearance |
mm |
431 |
||
Engine |
Model |
SC4H140.1G2 |
||
Rated speed |
r/min |
1800 |
||
Rated power |
kW |
103 |
||
Overall dimension (length x width x height) |
mm |
6150*2300*3200 |
