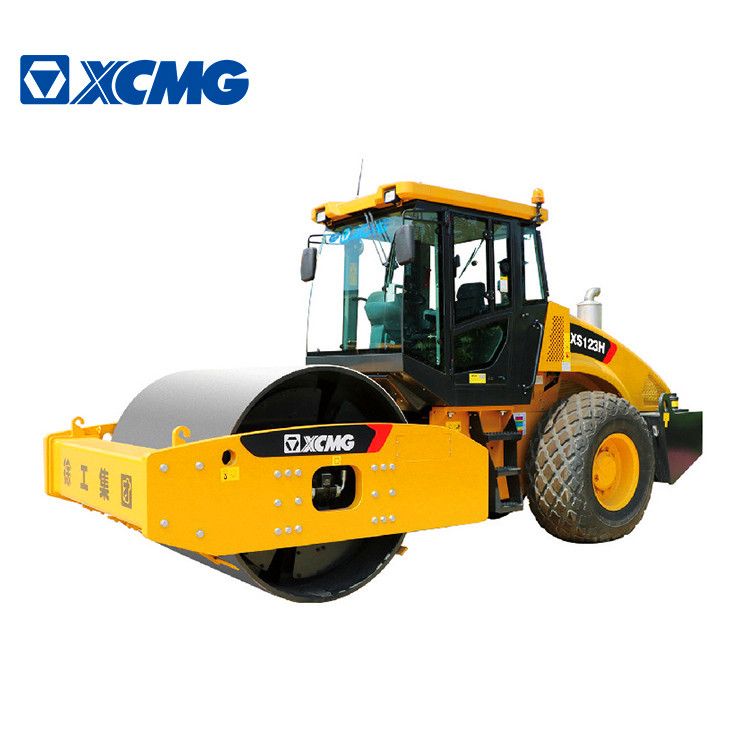

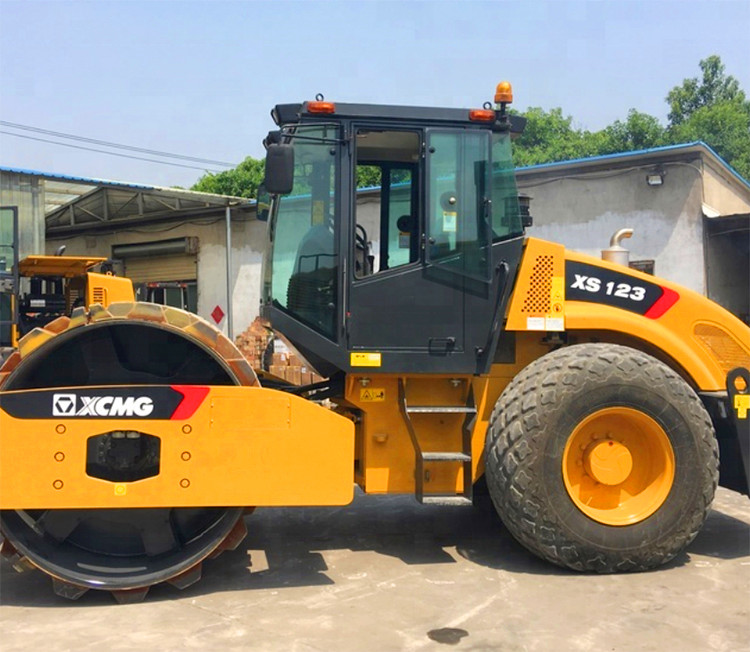

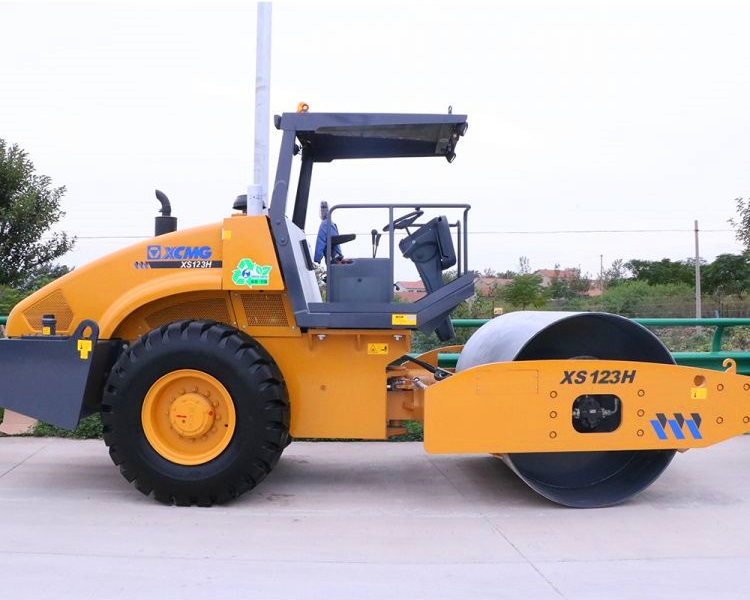

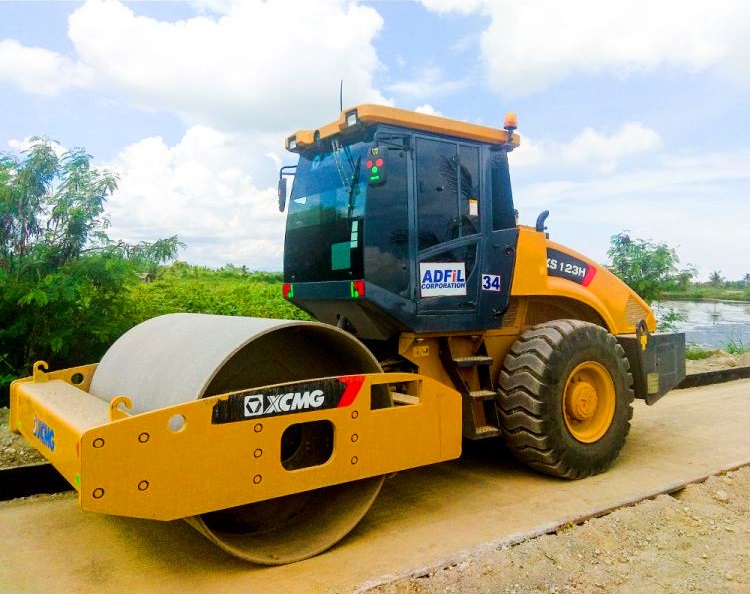

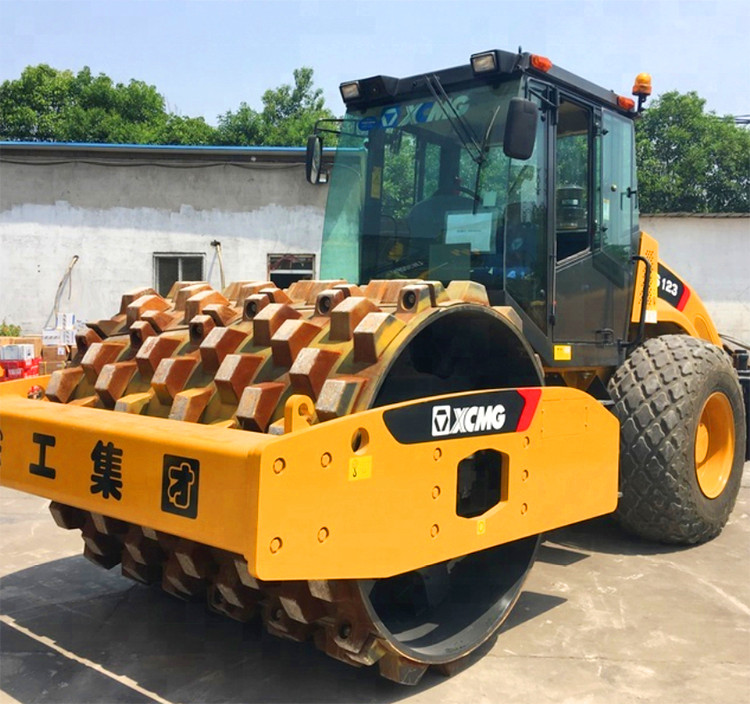

XCMG Official 12 ton vibratory road roller compactor XS123H new single drum vibration roller.

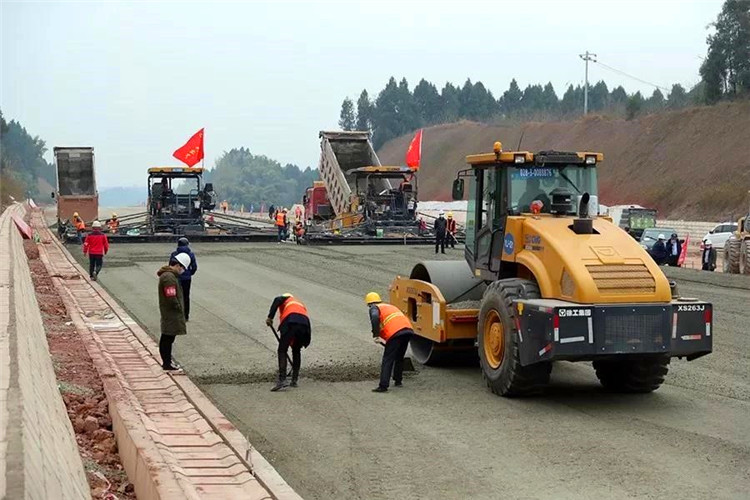

XH123H vibratory roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.

Performance Characteristics:
* Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.

* One gear infinitely variable speeds to ensure optimized working speed under different working conditions.

* Dual frequency and dual amplitude, meeting the requirements of different working conditions.

* Optimized vibration drum structure and vibration parameters to guarantee smoother compaction surface and higher compaction effnciency.

* Adopting the streamlined model, moderm and good appearance of driving cabin and broad visibility.

* With large opening angle, the hood is light and flexible, and can be safely parked in any position, which is very convenient for maintenance.

* Engine hood is the one piece metal structure with arc slope and uses the single- pole supported and electronically controlled liting device to guarantee convenient operation and stable lifting.

* Side plate of pressure wheel frame is connected by using the countersink method, which can effectively reduce the vehicle loading width and facilitate the container transportation.
