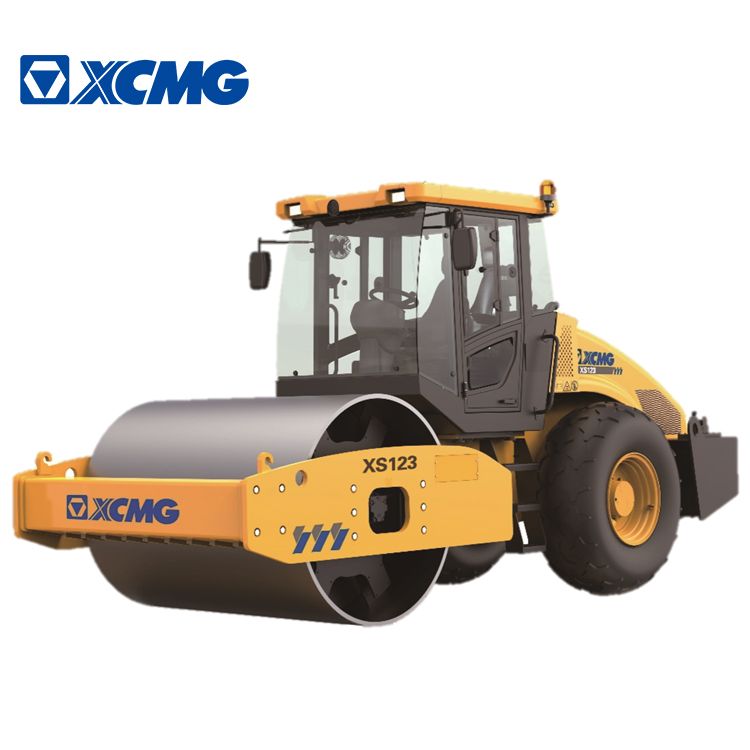

XCMG XS123 vibratory road roller 12 tons road roller machine price
![](/app/topc/statics/images/close.png)
![XCMG XS123 vibratory road roller 12 tons road roller machine price](http://www.machmall.com/images/store/357636/item/XS123H1 (9).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:12t
- Dimension(L*W*H):5940*2300*3150mm
- Power(W):97kw
- Model Number:XS123
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Grade Ability:45%
- Travel Speed:0-10.8km/h
- Static Linear Pressure:31.5 (175.8)kg/cm (pli)
- Type:Single Drum Roller
- Certification:CE/ISO9001
Specifications
- weight:12000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG XS123 vibratory road roller 12 tons road roller machine.
Main parameter:
Operating
weight :12 tons,
Drum width: 2130 mm,
Detailed configuration:
*
Cummins QSB4.5 engine 97kw,
*Rexroth
hydraulic system,
*
DANA axle
XS123
single drum roller is medium, self-propelled, full-hydraulic vibratory roller,
has the big exciting force, high compaction efficiency, good compaction
quality. Representing XCMG hydraulic vibratory compactors, the compacting
performance, driving performance, operating performance, reliability, and
maintenance performance represent the highest level of domestic compactors
It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil. It is an ideal compaction device for the construction of high-grade highways, airports, ports, and embankments.
Remarkable compacting performance
Dual
frequency and dual amplitude vibrating system and scientific and reasonable static
linear load and excitation force ensure the effective compaction of different
materials and layers with different thicknesses.
The welded convex block drum and fabricated expand the application range, realizing "one machine, two purposes".
Outstanding powertrain
Adopt
the imported CUMMIS water-cooled turbo-charged engine, features reliable
performance, large power reserve, low oil consumption, low noise, meeting the
standard of European II.
Adopt
imported heavy-duty drive axles with NO-SPIN Differential. The drive wheels
adopt wide base tyres which have large ground connection area, improving the
driving performance, and ensuring good trafficability in any case.
Hydraulic drive system: adopt the closed anti-slip hydraulic drive system composed by imported heavy-load variable pump and motor, ensuring the good driving performance and high gradeability.
Reliable Electrical System
The
electrical system adopts imported water-proof, dust-proof, vibration-resistant
electric connectors for increased reliability.
Imported
maintenance-free battery has high start-up current and good adaptability.
Comprehensive
safety protection
The
service brake, parking brake, and emergency brake ensure the travel safety.
The
ROPS cab guarantees the driver's safety.
Anti-slip
handrail and stairs and dapple rubber floor prevent the operator from slipping.
The
engine hood supporting system is equipped with safety protection device,
ensuring the maintenance technician's safety.
The rotating alarm lamp and reverse buzzer ensure the travel safety.
Excellent maintenance performance
The
alarm device on the instrument panel can supply maintenance information at any
time, avoiding the equipment damage, and shortening the downtime.
The
wide-opening tilt-forward engine hood makes the maintenance parts easy to
access to. The independent electrohydraulic supporting system controlled in the
cab makes the engine hood stop safely at any height, which is convenient for
the maintenance.
Item |
Unit |
Parameters |
Operating weight |
kg (lbs) |
12000 (26667) |
Weight at Drum |
kg (lbs) |
6700 (14889) |
Weight at axle |
kg (lbs) |
5300 (11778) |
Static linear load |
kg/cm (pli) |
31.5 (175.8) |
Driving speed ( gear I) |
km/h (mph) |
0-5 (0 -3.1) |
Driving speed ( gear II) |
km/h (mph) |
0-10.8 (0-6.75) |
Theoretical gradeability |
% |
45 |
Minimum turning radius |
mm (in) |
6800 (267.9) |
Tire specification |
23.1-26-12G23TL |
|
ply rating |
12 |
|
Air pressure |
kPa |
150-170 |
Engine manufacturer |
Cummins |
|
Type |
QSB4.5 |
|
Emission |
EURO III |
|
Rated power |
kW (hp) |
97 (130) |
Rated speed |
rpm |
2300 |
Voltage |
V |
24 |
Vibrational frequency |
Hz (vpm) |
30/35 (1800/2100) |
Nominal amplitude |
Mm (in) |
1.8/0.9(0.071/0.035) |
Exciting force |
kN (lbs) |
280/190(62944/42712) |
