XCMG Official 25 Meter Rotary Drilling Rig XRL100 China Truck Mounted Drilling Rig Machine Price
![](/app/topc/statics/images/close.png)
![XCMG Official 25 Meter Rotary Drilling Rig XRL100 China Truck Mounted Drilling Rig Machine Price](/images/store/357636/item/XRL100-1-1.jpeg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Weight:33t
- Power(W):116KW
- Model Number:XRL100
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Rotary Drilling Rig
Specifications
- weight:33000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

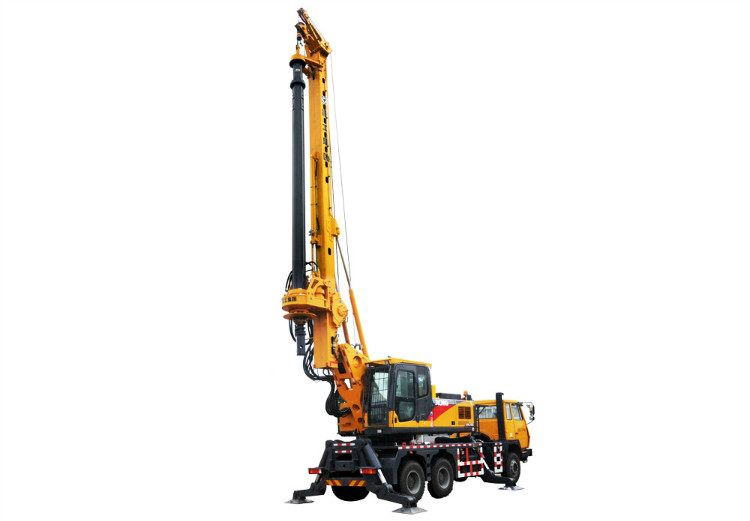

XCMG Official Truck Mounted Rotary Drilling Rig XRL100.
XR Series Rotary Drilling Rig stands for our company's achievement in many years' development and researches on piling machine, adopting the advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.

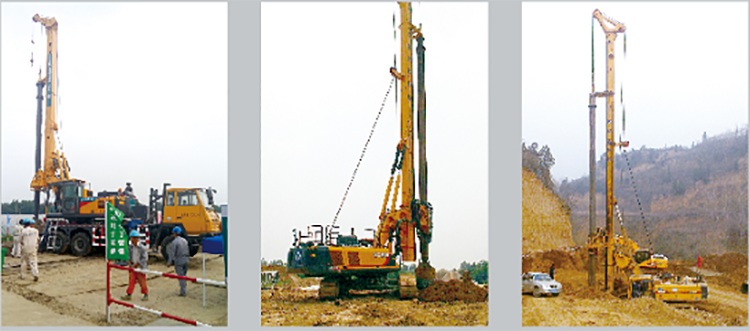

XR series is an ideal equipment widely applied in piling constructions, featuring reasonable design, compact structure, convenient operation, high reliability, powerful performance and wide application.
Performance Characteristics:
* The equipment adopts the wheel type chassis, can be transported with drill rod, made the transportation easily and economically;
* Cummins electronic control turbo supercharged engine meeting Euro Ill emission standard, saving energy, environmental protection and strong power;
* The patented parallelogram articulated structure actualizes a wider work rang-The highly strengthened box—type steel structure design makes the mast of highly—rigidity and anticontored, therefore the drill accuracy is heightened;
* The type A leg make the equipment operate easily, and improved the ability of anti-distortion;
* With the hydraulic pressure system adopted the technique of load sensor, which can increase the efficiency of hydraulic system and save energy;
* The double protection system of aboard rotary makes the construction safer;
* Standard centralized lubricating system, allowing easier maintenance.
Parameter |
|
Unit |
XRL100 |
Engine |
Model |
/ |
CUMMINS QSB4.5-C155 |
Rated power |
KW |
116 |
|
Rotary Drive |
Max. output torque |
kN·m |
100 |
Rotary speed |
r/min |
9~40 |
|
Max. Drilling Diameter |
mm |
Φ1400 |
|
Max. Drilling Depth |
m |
25 |
|
Crowd Cylinder |
Max. pull-down piston push |
kN |
100 |
Max. pull-down piston pull |
kN |
100 |
|
Max. pull-down piston stroke |
m |
2000 |
|
Main Winch |
Max. pulling force |
kN |
100 |
Max. line speed |
m/min |
70 |
|
Auxiliary Winch |
Max. pulling force |
kN |
60 |
Max. line speed |
m/min |
54 |
|
Mast Rake Side/forwards/backwards |
° |
±5/5/15 |
|
Rotary Table Slewing Angle |
° |
240 |
|
Traveling |
Max. traveling speed of the overall unit |
km/h |
80 |
Min. ground clearance |
mm |
340 |
|
Min. turning diameter |
m |
21 |
|
Approach angle |
° |
21 |
|
Departure angle |
mm |
18 |
|
Max. climbable gradient of the overall unit |
% |
30 |
|
Working Pressure of Hydraulic System |
MPa |
35 |
|
Overall Drilling Weight |
t |
33 |
|
Dimension |
Working condition |
mm |
9900×4600×14640 |
Transportation condition |
mm |
10740×2500×4380 |
