XCMG Official 92 Meter Crawler Rotary Drilling Rig XR360 China Drilling Rig Machine for Sale
Summary
- Certification:CE/ISO9001
- Weight:92t
- Model Number:XR360
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Rotary Drilling Rig
Specifications
- Weight:92000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

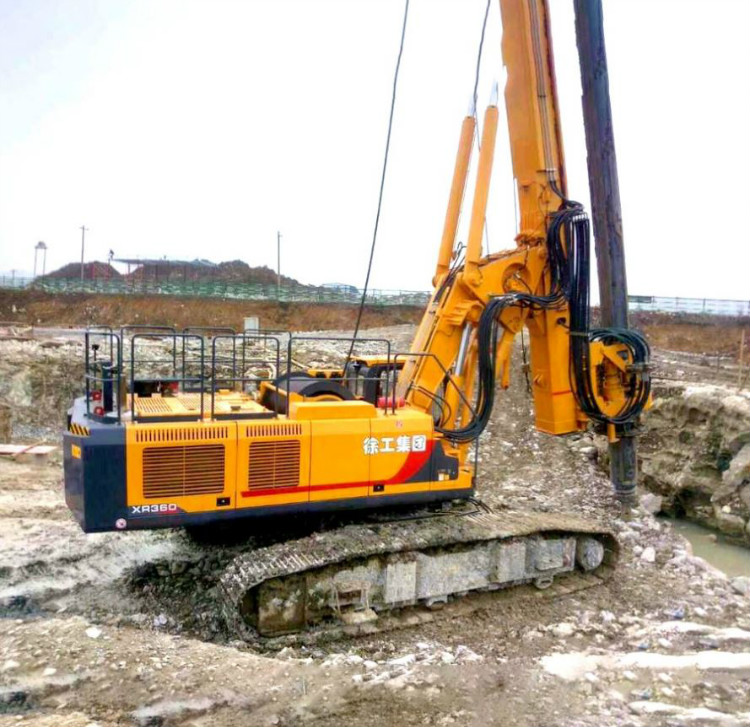

XCMG Official 92ton Crawler Rotary Drilling Rig XR360.
XR Series Rotary Drilling Rig stands for our company's achievement in many years' development and researches on piling machines, adopting advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.
Performance Characteristics:
* The special hydraulic chassis for the rotating drill with extensible crawler is provided with the excellent stability and is convenient to transport. The imported Cummins turbo-supercharged engine (meeting EUIII standard) is powerful, and has sufficient power reserve, which can be operated in plateau. Its noise and emission meet the national standards. The constant power and the best output enable the complete machine to function at its best.
* The main and auxiliary hydraulic systems are all adopt the technique of load sensor, which can increase the efficiency of hydraulic system and save energy. It uses heavy load hydraulic units to satisfy the all kinds operating status of drill.
* The patented parallelogram hinge mechanism enlarges the work area.
* Independent intellectual property rights of the intelligent control system, the application of CAN bus and the PLC control system, including the automatic and manual adjustment of the perpendicularity of the drill mast, the automatic display of the drilling depth, rotary automatic positioning control and the intellectual fault diagnosis control.
* Three speed reducers are used in the power head. It can output high torque. The drill mast, which is made of the materials with high strength, is designed to box structure. The higher rigidity and anti-distortion can ensure the drilling accuracy effectively. The hinge provided with the bearing exempt from lubrication can turn neatly. The slag can be discharged at any point of 360° rotation.
Description | Unit | Parameter value | |
Max. drilling diameter | mm | 2500 | |
Max. drilling depth | m | 92 | |
Working condition (L × W × H) | mm | 11000×4800×24586 | |
Transport condition (L × W × H) | mm | 17380×3500×3810 | |
Weight of overall unit (standard configuration, excluding drilling tool) | t | 92 | |
Engine | Model | CUMMINS QSM11-C400 | |
Rated power/speed | kW | 298 | |
Rotary drive | Max. torque | kN.m | 360 |
Rotational speed | r/min | 7~20 | |
Pull-Down Cylinder | Max. pull- down piston push | kN | 240 |
Max. pull- down piston pull | kN | 250 | |
Max. pull- down piston stroke | m | 6 | |
Main Winch | Max. pulling force | kN | 320 |
Max. line speed | m/min | 72 | |
Auxiliary Winch | Max. Pulling force | kN | 100 |
Max. line speed | m/min | 65 | |
Undercarrige | Max. traveling speed | km/h | 1.5 |
Max. grade ability | % | 35 | |
Min. Clearance | mm | 445 | |
Track shoe width | mm | 800 | |
Distance between tracks | mm | 3500 ~ 4800 | |
Hydraulic System | Working pressure | Mpa | 35 |
