XCMG Official 90 Meter Rotary Drilling Rig XR320D China Hydraulic Drill Machine for Sale
Summary
- Certification:CE/ISO9001
- Weight:92.8t
- Model Number:XR320D
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Rotary Drilling Rig
Specifications
- Weight:92800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

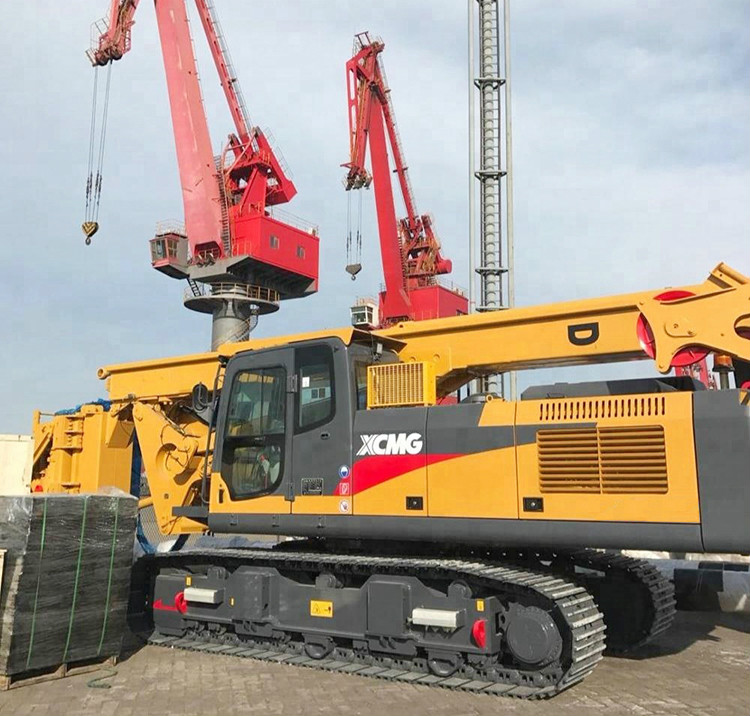

XCMG Official 92.8ton Rotary Drilling Rig XR320D.
XR Series Rotary Drilling Rig stands for our company's achievement in many years' development and researches on piling machines, adopting advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.

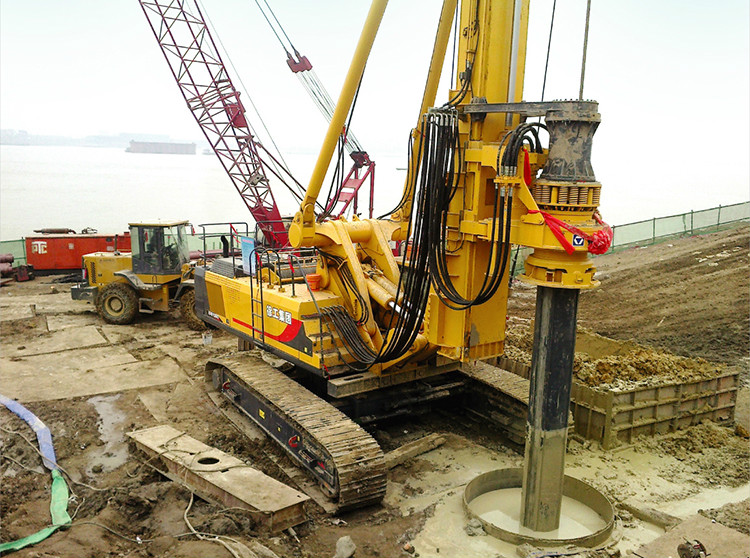

XCMG XR320D Rotary Drilling Rig widely used in the boring operation of the bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks, and high-rise buildings.
Performance Characteristics:
* It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.
* It adopts the luffing mechanism of large triangle form to ensure the stability of the construction of big holes and deep piles in hard formation.
* It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost.
* According to specific working conditions, the users can select a corresponding gear of the imported Cummins turbo-supercharged engine with three gears, getting the drilling rig working as three engines.
* Unit head can switch between Normal Mode and Rock Cracking Mode which are applicable for soil and rock excavation respectively, improving the efficiency.
* Winch pressurization and sleeve drive are both available for selection to meet users' various demands.
Description | Unit | Parameter value | |
Max. drilling diameter | mm | 2500 | |
Max. drilling depth | m | 90 | |
Allowable luffing scope (from center of drill rod to slewing center) | mm | 4100～4400 | |
Drilling rig dimension in working condition (L × W × H) | mm | 10480×4800×25155 | |
Drilling rig dimension in transport condition (L × W × H) | mm | 16550×3500×3500 | |
Weight of overall unit (standard configuration, excluding drilling tool) | t | 92.8 | |
Engine | Model | CUMMINS QSM11-C400 | |
Rated power/speed | kW | 298/（2100r/min） | |
Hydraulic system | Max. working pressure of main pump | Mpa | 35 |
Max. working pressure of auxiliary pump | Mpa | 30 | |
Rotary drive | Max. torque | kN •m | 320 |
Rotational speed | r/min | 5.5～21 | |
Crowd cylinder | Max. Pushing force | kN | 250 |
Max. Pulling force | kN | 250 | |
Max. stroke | mm | 6000 | |
Crowd winch | Max. Pushing force | kN | 330 |
Max. Pulling force | kN | 350 | |
Max. stroke | mm | 16000 | |
Main winch | Max. pulling force | kN | 280 |
Max. single-rope speed | m/min | 75 | |
Auxiliary winch | Max. pulling force | kN | 100 |
Crawler | Width of crawler plate | mm | 800 |
External width of crawler (min.-max.) | mm | 3500～4800 | |
Center distance between two longitudinal wheels of crawler | mm | 5175 | |
Average ground pressure | kPa | 122 | |
