XCMG Official XR280D Rotary Drilling Rig for sale
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Usage
Model Number
Brand Name
Place of Origin
Power Type
Type
Engineering & Construction Machinery
CE/ISO9001
10770×4800×23550mm
84000kg
298kW
220V/380V
Water Well
XR280D
XCMG
China
Electric
Rotary Drilling Rig
+ Add a Product
+ Add a Product
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):10770×4800×23550mm
- Weight:84000kg
- Power(W):298kW
- Voltage:220V/380V
- Usage:Water Well
- Model Number:XR280D
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Electric
- Type:Rotary Drilling Rig
Specifications
- Weight:84000.000kg
- Condition:New
- Moving Type:Crawler
- Max. Drilling Diameter:2500mm
- Max. Drilling Depth:88m
- Allowable luffing scope:4410-4950mm
- Max. working pressure of hydraulic system:35Mp
- Max. torque:280kN •m
- Rotational speed:6-22r/min
- Rotary table slewing angle:360°
- Max. traveling speed:1.5km/h
- Max. climbable gradient:0.35
- Width of crawler plate:800mm
- Engine model:CUMMINS QSM11-C400
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

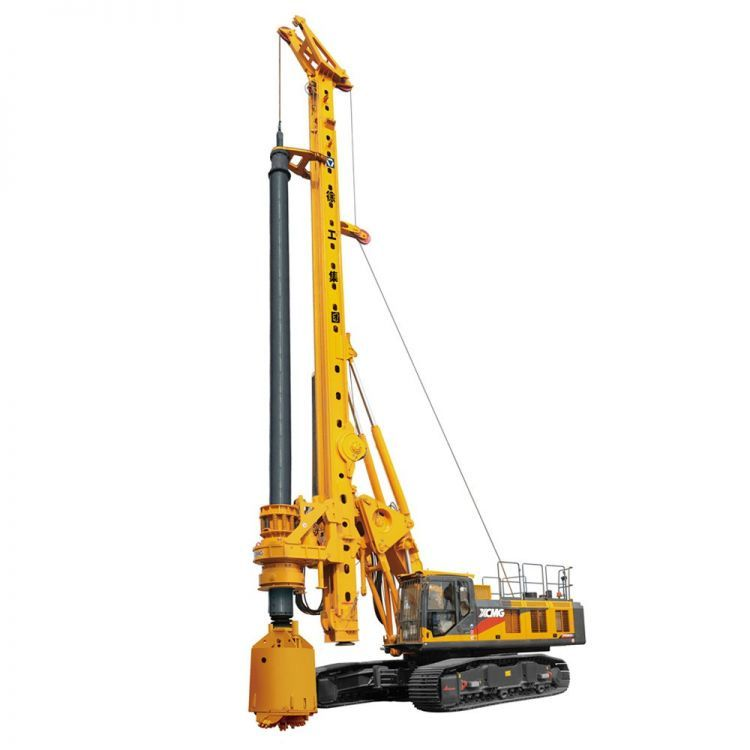

XR280D Rotary drilling rig:
1、With the special hydraulic telescopic crawler chassis (TDP series) of rotary drill rig and large diameter slewing bearing, it meets strong stability and easy transportation.2、With the electronically controlled and turbocharged engine of Cummins, which is powerful and emissions meet Euro Ⅲ standards.3、The hydraulic system adopts the limit of power control and positive flow control, that makes the hydraulic system more energy and efficient.4、With the single rope main winch, it efficiently solves the problem of wire rope wear, and improves the service life of wire rope; a detection device of drilling depth on the main winch, and single rope makes deep inspection more accuracy.5、The design of whole machine meets the requirements of the CE directive, that guarantees safety, and construction safer.6、Crowd winch、casing driver is Standard equipped，and multi-function such as and hydraulic casing oscillator is optional selected.7、Configure centralized lubrication system, which makes maintenance more convenient.8、Selection of a variety of specifications for kelly-bar, meeting the efficient construction of different strata.
Drilling rig dimension in transport condition (L × W × H) | mm | 17380×3500×3540 | |
Weight of overall unit (standard configuration, excluding drilling tool) | t | 84 | |
Engine | Model | CUMMINS QSM11-C400 | |
Rated power/speed | kW | 298/（2200r/min） | |
Rotary drive | Max. torque | kN •m | 280 |
Rotational speed | r/min | 6～22 | |
Crowd cylinder | Max. Pushing force | kN | 210 |
Max. Pulling force | kN | 220 | |
Max.stroke | mm | 6000 | |
Main winch | Max.pulling force | kN | 260 |
Max. single-rope speed | m/min | 60 | |
Auxiliary winch | Max.pulling force | kN | 100 |
Max. single-rope speed | m/min | 65 | |
Drilling mast | Left/right inclination of mast | ° | 4/4 |
Front/back inclination of mast | ° | 5/15 | |
Rotary table slewing angle | ° | 360 | |
Traveling | Max. traveling speed of the overall unit | km/h | 1.5 |
Max. climbable gradient of the overall unit | % | 35 | |
Crawler | Width of crawler plate | mm | 800 |
External width of crawler (min.-max.) | mm | 3500～4800 | |
Center distance between two longitudinal wheels of crawler | mm | 5175 | |
Average ground pressure | kPa | 102 | |
