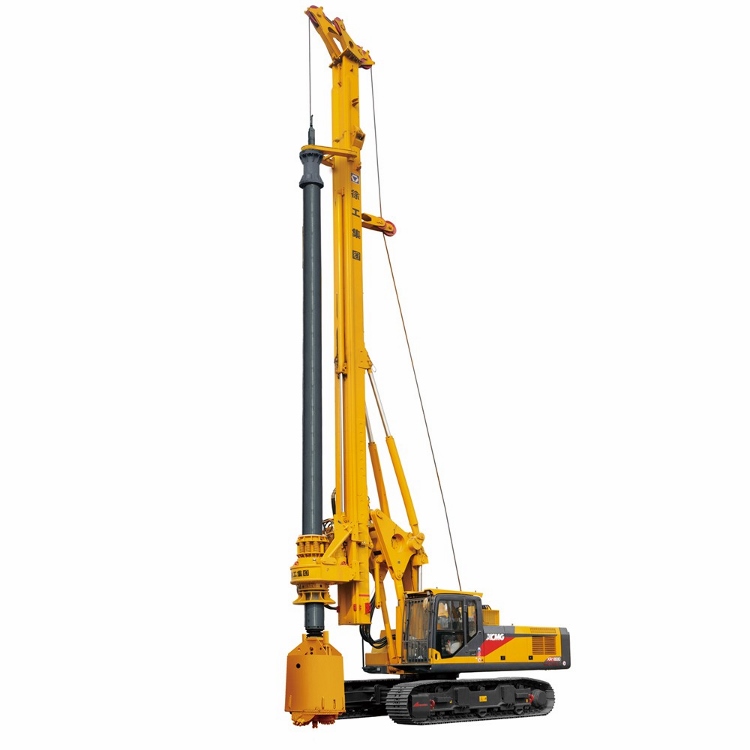

XCMG Official Hydraulic Rotary Drilling Rig Machine XR180DII.

XR Series Rotary Drilling Rig stands for our company's achievement in many years' development and researches on piling machine, adopting the advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.

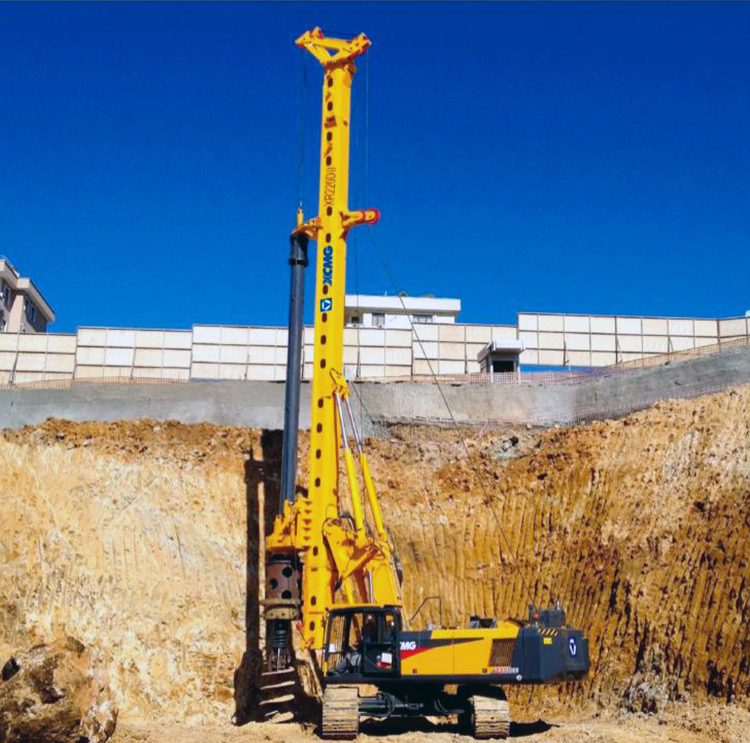

XCMG XR180DII Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.

Performance Characteristics:

* With the special hydraulic telescopic crawler chassis (TDP series) of rotary drill rig and large diameter slewing bearing, it meets strong stability and easy transportation.

* With the electronically controlled and turbocharged engine of Cummins, which is powerful and emissions meet Euro Ⅲ standards.

* The hydraulic system adopts the limit of power control and positive flow control, that makes the hydraulic system more energy and efficient.

* With the single rope main winch, it efficiently solves the problem of wire rope wear, and improves the service life of wire rope; a detection device of drilling depth on the main winch, and single rope makes deep inspection more accuracy.

* The design of whole machine meets the requirements of the CE directive, that guarantees safety, and construction safer.

* Configure centralized lubrication system, which makes maintenance more convenient.

* Selection of a variety of specifications for Kelly-bar, meeting the efficient construction of different strata.

* Multi-function such as crowd winch, spin-off of rotary drive, casing driver and hydraulic casing oscillator is optional selected.

* The removable type key of rotary drive makes maintenance and exchange more convenient.

Description	Unit		Parameter value
Max. drilling diameter	mm		1600
Max. drilling depth	m		60，Standard configuration (5-section friction Kelly bar) 46，optional configuration (4-section-locking Kelly bar)
Allowable luffing scope (from center of drill rod to slewing center)	mm		3560～3900
Drilling rig dimension in working condition (L × W × H)	mm		8350×4200×20480
Drilling rig dimension in transport condition (L × W × H)	mm		14380×3000×3490
Weight of overall unit (standard configuration, excluding drilling tool)	t		60
Engine	Model		CUMMINS QSB6.7
	Rated power/speed	kW	194/（2200r/min）
Max. working pressure of hydraulic system	MPa		35
Rotary drive	Max. torque	kN •m	180
	Rotational speed （Standard configuration）	r/min	7～27
	Rotational speed （Optional configuration）	r/min	6～25
		r/min	92（Spin-off）
Crowd cylinder	Max. Pushing force	kN	210
	Max. Pulling force	kN	210
	Max. stroke	mm	13000
Main winch	Max. pulling force	kN	180
	Max. single-rope speed	m/min	65
	Diameter of the steel wire rope	mm	28
Auxiliary winch	Max. pulling force	kN	50
	Max. single-rope speed	m/min	70
	Diameter of the steel wire rope	mm	16
Drilling mast	Left/right inclination of mast	°	3/3
	Front/back inclination of mast	°	5/15
Rotary table slewing angle	°		360
Traveling	Max. traveling speed of the overall unit	km/h	1.5
	Max. climbable gradient of the overall unit	%	35
Crawler	Width of crawler plate	mm	700
	External width of crawler (min.-max.)	mm	2960～4200
	Center distance between two longitudinal wheels of crawler	mm	4270
	Average ground pressure	kPa	94
