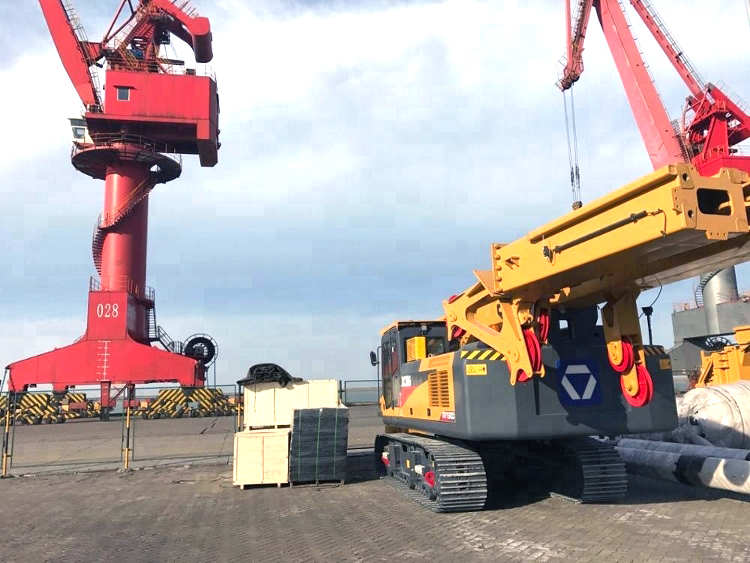

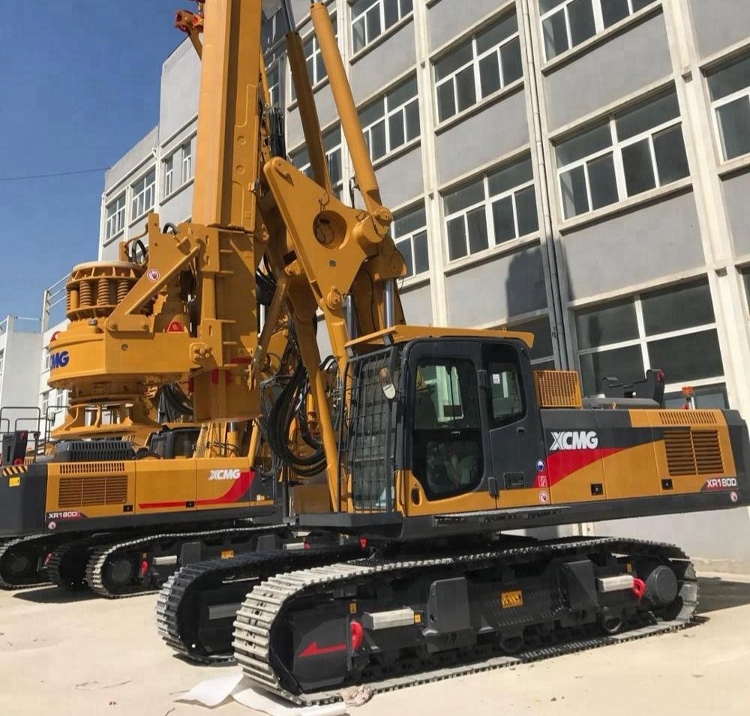

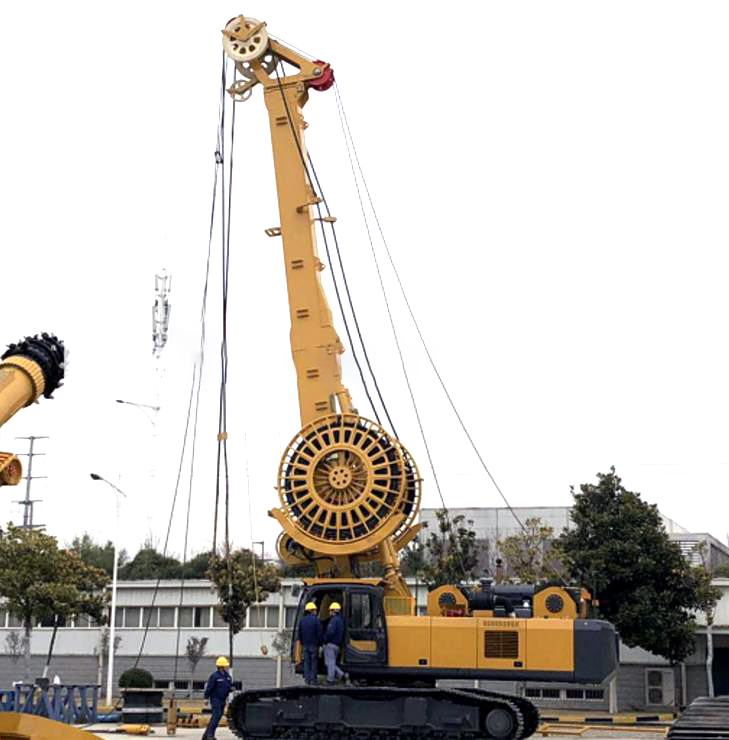

XCMG Official XR180D hydraulic rotary drilling rig.

1, It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability;

2, It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost;

3, Cummins electric control turbo-supercharged engine is used. It complies with Euro III emission standard, in addition, it has strong power, which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard;

4, Using full electronic control technology of CAN bus, Improves the reliability of the whole vehicle and simplify hydraulic line, fully reflects the people, machine, electricity and liquid integration;

5, Winch-crowd and sleeve-driven functions are available for selection to CFA, hydraulic casing oscillator, DTH hammer satisfy various needs of the users;

6, It is equipped with a centralized lubrication system as standard configuration; maintenance is easier;

7, The machine obtains CE certification of TüV Rheinland group.

8, The main parts are imported from international manufactures: Rexroth A8V0 constant power series with double pumps, motor, pilot proportional control valve, reducer, imported controller, which guarantees its reliability.

I Host machine: 1800mm of drilling diameter, 60m of drilling depth, 180kN.m of Max. torque. Imported Cummins (194kW) turbo charging engine, imported hydraulic and electrical components, telescopic tracks chassis, and single layer main winch. Meet the requirements of the European Union CE directive.

II Drill rod: choose one drill rod from standard configuration (φ406) 5-section frictional drill rod (60m) or 4-section mechanical interlock drilling rod (46m).

III Bit: one standard configuration bucket teeth sand drill rigs (each one for φ600mm~ φ1800mm).
