XCMG Official 56m Rotary Drill Rig XR150DIII China Drilling Rig For Sale
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):13610*2960*3040mm
- Weight:48000kg
- Power(W):133kw
- Voltage:220V/380V
- Model Number:XR150DIII
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Rotary Drilling Rig
Specifications
- Weight:49000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

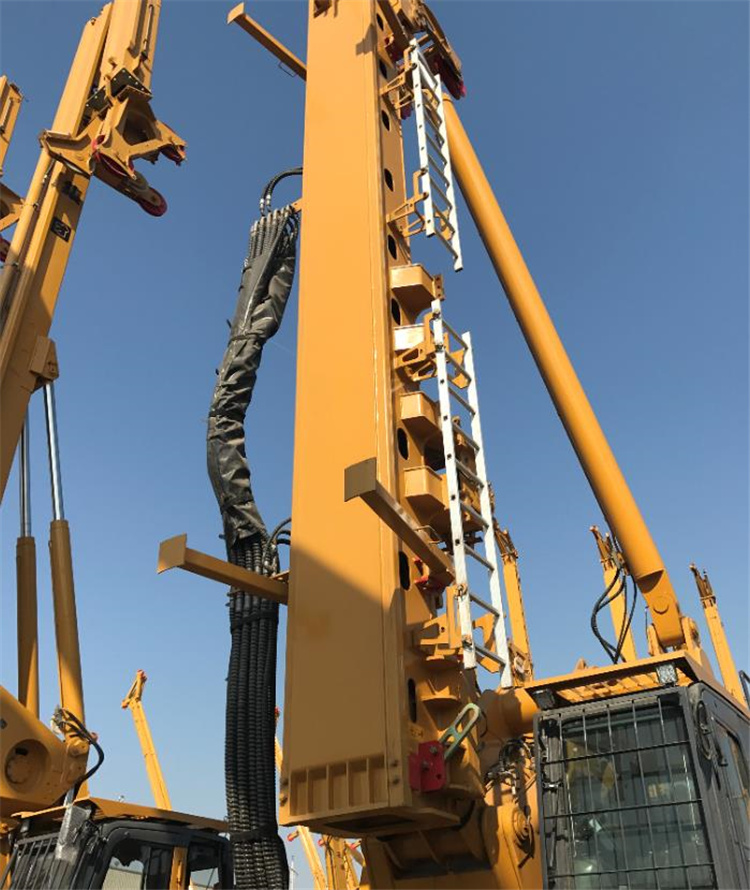

XCMG Official 49ton Hydraulic Rotary Drilling Rig Machine XR150DIII.
XR Series Rotary Drill Rig stands for our company's achievement in many years' development and researches on piling machine, adopting the advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.
XR series is an ideal equipment widely applied in piling constructions, featuring reasonable design, compact structure, convenient operation, high reliability, powerful performance and wide application.
Performance Characteristics:
* It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
* It adopts the Cummins electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
* With the hydraulic pressure system adopted threshold power control and negative flow control, the system acquired high efficiency and higher energy conservation.
* Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is settled in main winding, single rope to make deep inspection more accurate.
* The whole machine design meets the requirements of the CE directive, safety guarantee, construction safer.
|
Parameter |
Unit |
XR150DIII |
|
|
Max. drilling diameter |
mm |
1500 |
|
|
Max. drilling depth |
m |
56 |
|
|
Allowable luffing scope (from center of drill rod to slewing center) |
mm |
3250～3650 |
|
|
Drilling rig dimension in working condition (L × W × H) |
mm |
7550×4200×19040 |
|
|
Drilling rig dimension in transport condition (L × W × H) |
mm |
13150×2960×3140 |
|
|
Weight of overall unit (standard configuration, excluding drilling tool) |
t |
49 |
|
|
Engine |
Model |
CUMMINS QSB7 |
|
|
Rated power/speed |
kW |
150/（2050r/min） |
|
|
Max. working pressure of hydraulic system |
MPa |
35 |
|
|
Rotary drive |
Max. torque |
kN •m |
150 |
|
Rotational speed |
r/min |
7～33 |
|
|
Crowd cylinder |
Max. Pushing force |
kN |
120 |
|
Max. Pulling force |
kN |
160 |
|
|
Max.stroke |
mm |
3500 |
|
|
Main winch |
Max.pulling force |
kN |
160 |
|
Max. single-rope speed |
m/min |
72 |
|
|
Diameter of the steel wire rope |
mm |
26 |
|
|
Auxiliary winch |
Max.pulling force |
kN |
50 |
|
Max. single-rope speed |
m/min |
60 |
|
|
Diameter of the steel wire rope |
mm |
16 |
|
|
Rotary table slewing angle |
° |
360 |
|
|
Traveling |
Max. traveling speed of the overall unit |
km/h |
2.1 |
|
Max. climbable gradient of the overall unit |
% |
40 |
|
|
Crawler |
Width of crawler plate |
mm |
700 |
|
External width of crawler (min.-max.) |
mm |
2960～4200 |
|
|
Center distance between two longitudinal wheels of crawler |
mm |
4310 |
|
|
Average ground pressure |
kPa |
83 |
|
