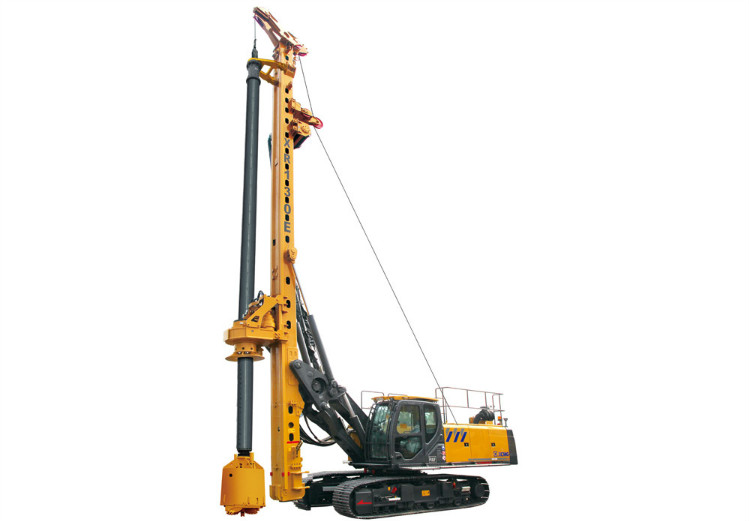

XCMG Official 45ton Crawler Rotary Drilling Rig XR130E.

XR Series Rotary Drilling Rig stands for our company's achievement in many years' development and researches on piling machine, adopting the advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.

XR series is an ideal equipment widely applied in piling constructions, featuring reasonable design, compact structure, convenient operation, high reliability, powerful performance and wide application.

Performance Characteristics:

* It adopts dedicated TDP series hydraulic retractable chassis and large—diameter slewing bearing and has high stability and convenience of transport It has long wheel base which makes it very adaptable to the terrain.

* Transportation of the machine includes a drilling bar. Transportation width is only 2.5m and transportation height is only 3.5 m. Light transport weight makes easier to load and unload.

* Rotary drive, main winch and auxiliary winch have high output speed, which develops the efficiency of work.

* It adopts guangxi cummins turbocharged engine with electro—control which provides strong power and meets the requirements of EU3 emission standard, can select imported engine of cummins.

* It adopts imported Kawasaki hydraulic system with high reliability and a lot of technology of XCMG.

* It adopts the technology of CAN electronic control and simplify the hydraulic plumbing system which improves the reliability of the machine.

* A variety of specifications configuration of drilling bars are available which meets the needs of different working conditions.

* Cylinder crowded, winch crowded, drive of casing pipe, CFA, spin—off type function are optional.
