XCMG XQY805 Grab bucket garbage truck
Summary
- Certification:CE/ISO9001
- Model Number:XQY805
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Rated Loading Capacity:2000(3.5m) / 900(6m)kg
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

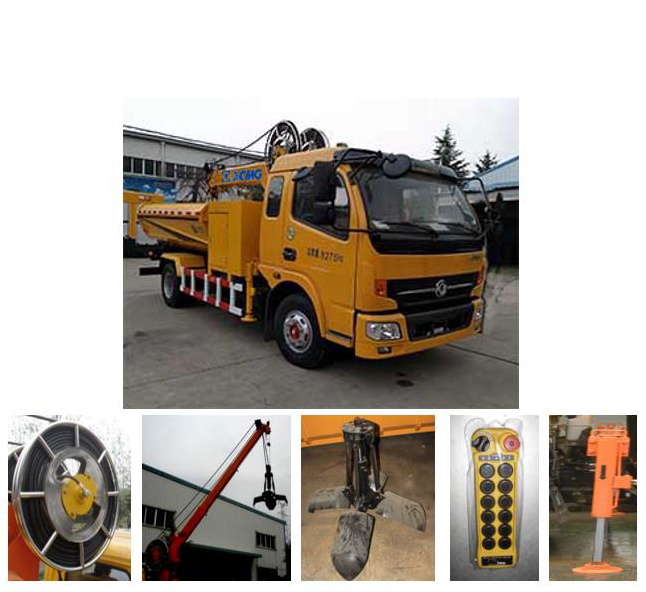

XCMG XQY805 Grab bucket garbage truck.
Combined with the advanced technology of similar products at home and abroad, this vehicle makes full use of hydraulic, humanized technology and reliability design and mature production process, so that the vehicle design structure is reasonable, high safety, excellent performance, flexible and simple operation.
The vehicle is mainly used for municipal departments to remove sludge from urban sewers. The vehicle is equipped with sludge tank, which is automatically installed into the compartment by hydraulic lifting and dumping mechanism.
This vehicle is a dump truck, which has provided an effective means to improve the working efficiency and reduce the unloading labor under the premise of guaranteeing the technical performance of the dump truck chassis.
Features of the machine are as below:
* The whole truck is made of stainless steel, corrosion-resistant and long life.
* Movable round sludge tank, easy to move;
* Double row cab can take enough workers to carry out long-distance construction, no need to send vehicles to carry workers.
|
Item |
Unit |
Parameter |
|
Type |
—— |
XQY805 |
|
Chassis model |
|
EQ1095SJ8CD2 |
|
Emission standard |
|
CN-6 |
|
Cab capacity |
m³ |
4.5 |
|
Grab bucket type |
|
Round grab bucket（30L、50L) |
|
Bucket capacity |
m³ |
0.03 / 0.05 |
|
Maximum depth |
m |
15 |
|
Max. tilt angle |
° |
50 |
|
Max. lifting torque |
kN•m |
70 |
|
Max. lifting mass |
kg |
2000 (3.5m) /900( 6m ) |
|
Max. lifting angle |
° |
60 |
|
Angle of horizontal swing |
° |
180 |
|
Max. working radius |
m |
6 |
|
Control type |
|
Wireless remote control + manual control |
