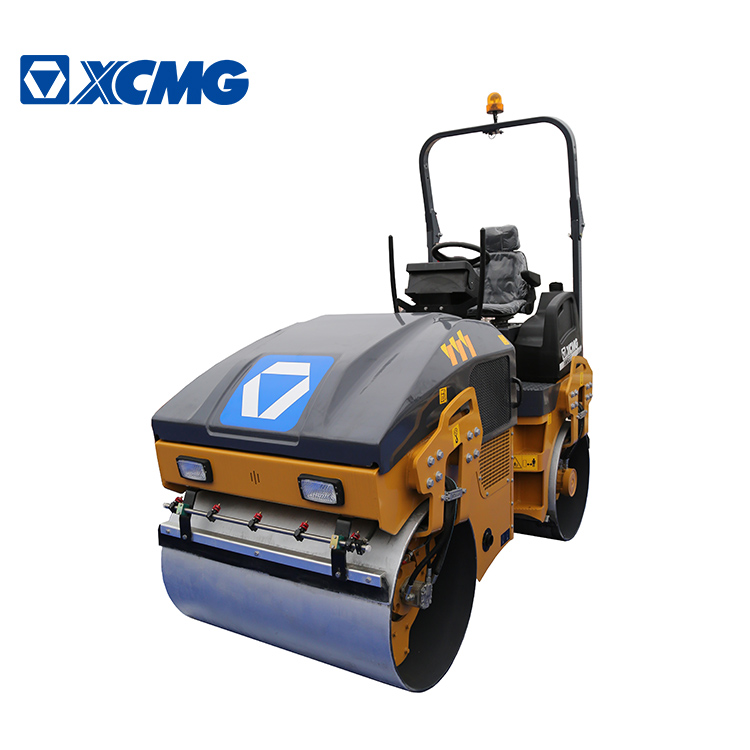

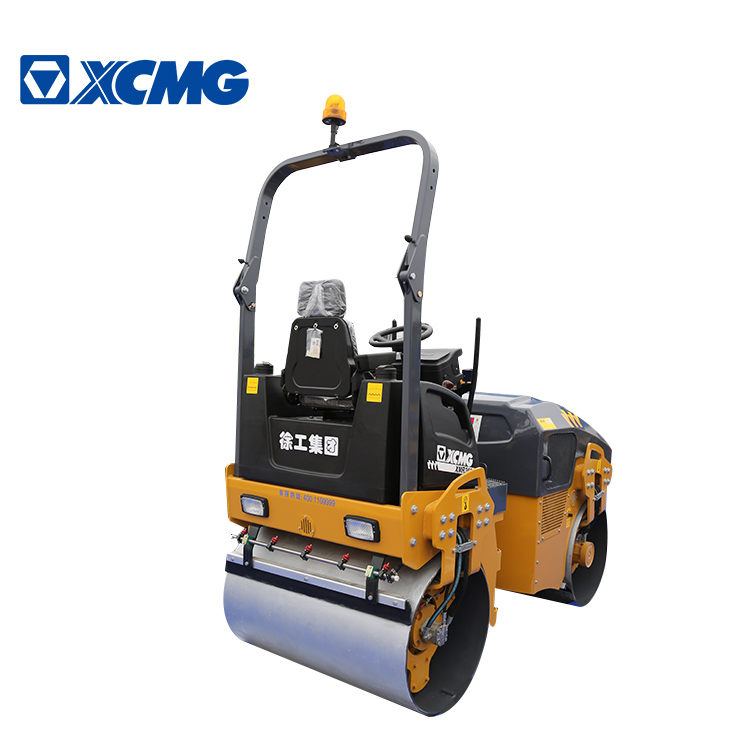

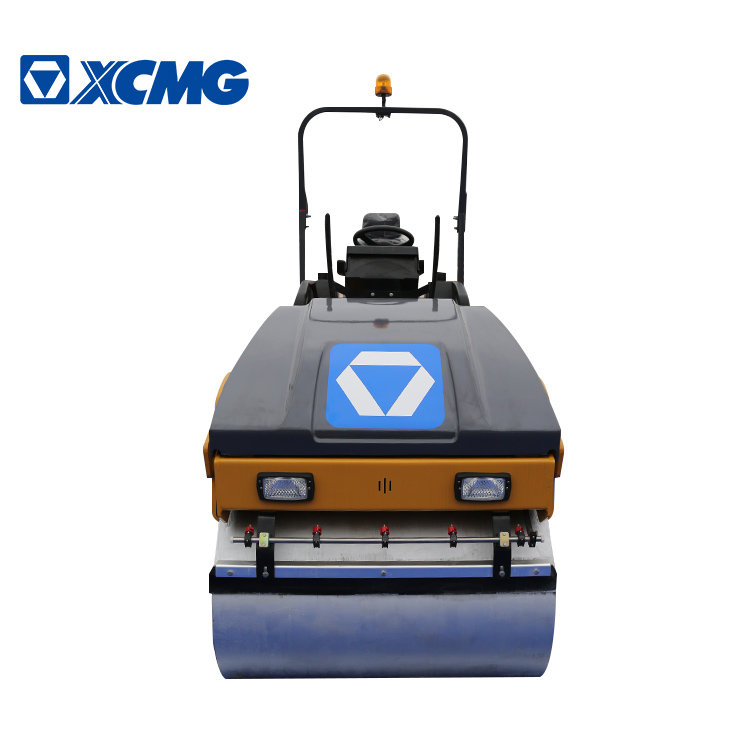

XCMG 3 ton Mini Double Vibratory road Roller XMR303 Light Compactor Equipment for sale
Summary
- Weight:3100KG
- Dimension(L*W*H):2675*1318*2680 mm
- Power(W):28.5kW
- Model Number:XMR303
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Grade Ability:30%
- Travel Speed:0-9.5km/h
- Static Linear Pressure:129N/cm
- Type:Vibratory Roller, Double Drum Roller
- Certification:ISO/CE
Specifications
- Weight:3011.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 3 ton Mini Double Vibratory road
Roller XMR303 Light Compactor Equipment.
Main
parameter:
Operating weight :3.1 tons ,
Vibration frequency :60 Hz,
Drum width:1200 mm,
Detailed configuration
* F2L2011 engine ,
* Hydraulic double drive,
*Single vibratory drums for XMR303, Double vibratory drums for XMR303S .,
Advantages
Adopt good brand engine , pump ,vibratory bearing .Great working performance .
Easy for compaction even on road side .High working efficiency .
Equip large capacity water tanks.
XMR303 light
double drum vibratory roller is suitable for surface compaction of compaction
works such as asphalt engineering and cement engineering and compaction of
curbs. It is also suitable for compaction of base and base layers, sand and
gravel materials.
|
Type |
Unit |
XMR303 |
|
Operating weight |
kg |
3100 |
|
Static linear load(front/rear) |
N/cm |
129/129 |
|
Travel Speed |
km/h |
0-9.5 |
|
Theoretical agreeability |
% |
30 |
|
Min. turning radius(Inner/Outer) |
mm |
2890/4090 |
|
Min ground clearance |
mm |
310 |
|
Steering angle |
± ° |
30 |
|
Swing angle |
±° |
10 |
|
Vibration frequency |
Hz |
60 |
|
Vibrating system-max.pressure |
Mpa |
20 |
|
Steering system-max.rressure |
Mpa |
14 |
|
Nominal amplitude |
mm |
0.46 |
|
Exiting force |
kN |
32 |
|
Compacting width |
mm |
1200 |
