XCMG official concrete paver XMC-6500 slip form versatile road paving machinery price
Summary
- Dimension(L*W*H):1830*300*670mm
- Model Number:XMC-6500
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Paving Width:2500mm -4500mm
- Max. Paving Thickness:1500mm
- Power(W):132kW/2200r/min
- Production Capacity:120m3/h
- Certification:CE/ISO9001
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
- Crawler spec.:1830*300*670mm
- Paving radius:60cm(side mold)
- Leveling width:480~1600mm
- Leveling depth:0~150mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG official concrete paver XMC-6500 slip form versatile
road paving machinery.

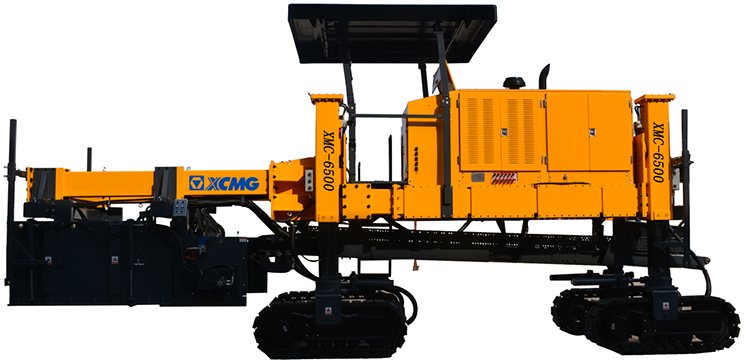

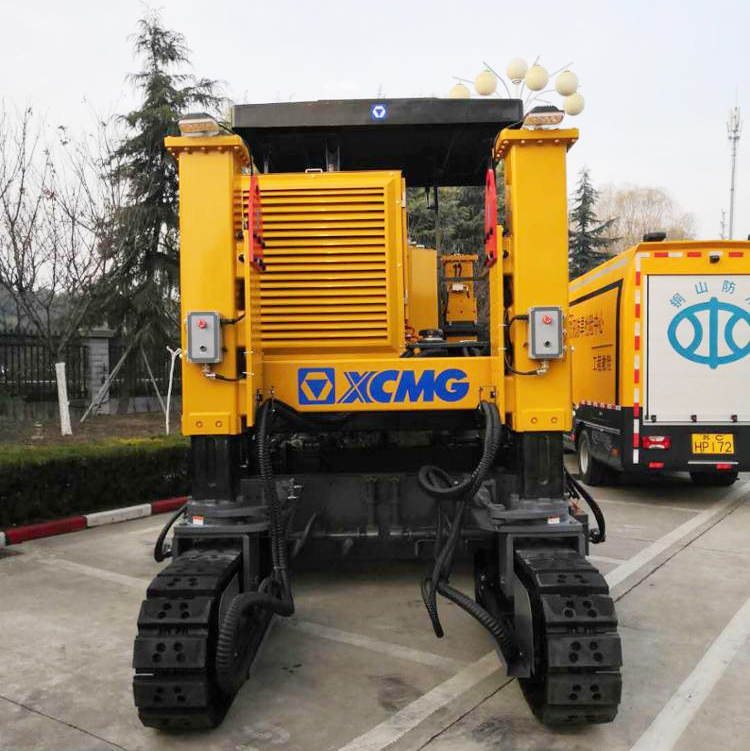

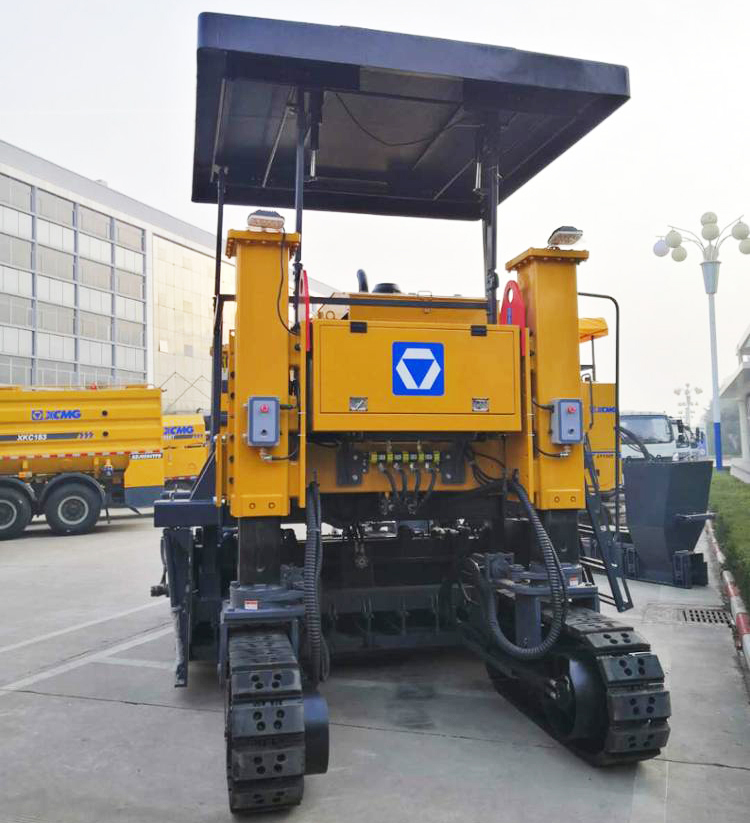

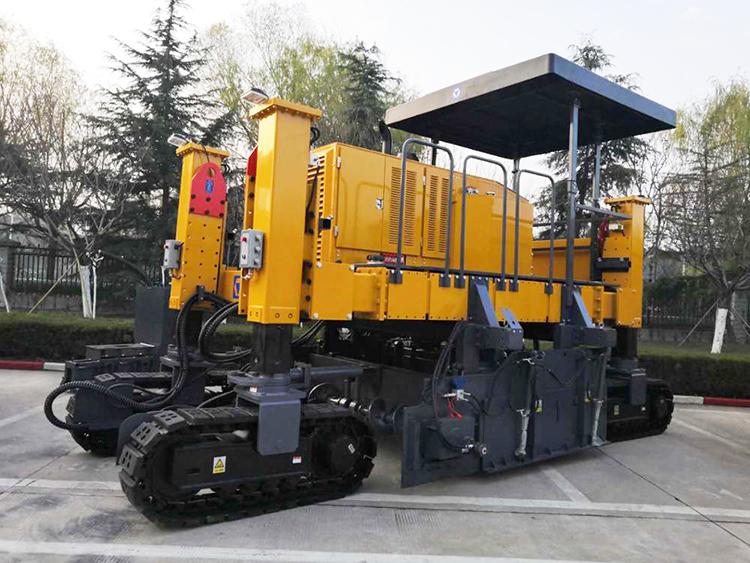

XMC-6500 Slip Form Paver features high power reserve,
full electronic control, full hydraulic drive, four crawler propelling,
automatic steering and automatic leveling. It is able to complete whole working
processes from conveying, tamping, paving, extrusion forming to leveling,
meeting the demands for railway and highway construction of our country while
improving the construction quality of concrete structure and construction
speed.
1. Reliability and stability
* Crawler drive system: four-crawler drive system, each
has big ground contact area to provide enough traction adhesion.
* Smart cylinder technology: easy for steering control
and perfect synergy and coordination.
* Multi-controller layout, CAN bus communication,
centralized management of the actuator, simple external connection.
2. Easy operation, high productivity
* Full track steering system and full track positioning
enables a variety of steering modes. Machine can be positioned simply and
quickly for various working conditions.
* Wide screen LCD, friendly human-machine interface, easy
to operate.
3. Diversified configuration and versatility
* The central-positioned molding is used for the concrete
structure of grade roads and squares.
* The side-positioned molding is used for curbs, side
ditch and anti-collision walls. 3. The rear positioned molding realizes
negative gap paving, which is used for country roads and roads without
shoulders.
4. Energy saving and environmentally friendly
* Engine: Shangchai 6-cylinder engine, electric
preheating, high power, suits construction in high altitude areas; high
pressure common rail control, complies with China-III emission standards and
easy upgraded to China-IV.
* High power, low fuel consumption: comprehensive fuel
consumption is 18.8l/h, full load fuel consumption is 30.3l/h.
|
Configuration type |
Central-positioned |
Side-positioned |
Rear-positioned |
|
Paving width |
2500mm -4500mm |
100mm -2500mm |
2500mm -3000mm |
|
Paving thickness |
100mm -300mm |
100mm -1500mm |
100mm -300mm |
|
Paving capacity |
120m3/h |
90m3/h |
90m3/h |
|
Paving radius |
60cm(side
mold) |
||
|
Crawler spec. |
Four or three, dimension (length × width × height) : 1830X300X670mm |
||
|
Tank capacity |
Fuel tank:
320L, hydraulic tank: 320L, water tank: 550L |
||
|
Propel performance |
Paving speed: 0-15 m/min, driving speed: 0-30m/min |
||
|
Engine power |
132kW/2200r/min |
||
|
Automatic control |
Two circuits for steering, and two for longitudinal gradient and one for
transverse gradient (side-position molding); Four |
||
|
Vibration system |
Hydraulic
drive, up to 12 independent control circuits, continous adjustable frequency. |
||
|
Leveler/optional |
Leveling width 480～1600mm, depth
0～150mm. |
||
|
Belt conveyor |
/ |
Hydraulic
drive, continuous adjustable speed, reversible. Belt length 5.6m, width
600mm, max. speed 110m/min. |
|
|
Auger |
Blade diameter 350mm, speed 0-33r/min |
/ |
Blade diameter 350mm, speed 0-33r/min |
|
Tamper |
Hydraulic
drive, stepless adjustable frequency |
/ |
Hydraulic
drive, stepless adjustable frequency |
