XCMG Official XM200KII Pavement Milling Machine for sale
Summary
- Dimension(L*W*H):7650 x 2580 x 3000mm
- Weight:34000kg
- Power(W):470kW
- Model Number:XM200KII
- Brand Name:XCMG
- Place of Origin:China
- Milling width (mm):2000
- Milling depth (mm):320
Specifications
- Weight:34000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
|
Item |
Unit |
XM200KII |
|
|
Maximum milling width |
mm |
2000 |
|
|
Maximum milling depth |
mm |
320 |
|
|
Milling Wheel |
Interval between |
mm |
15/18 |
|
Amount of tools |
168/146 |
||
|
Diameter of milling wheel(with tool) |
mm |
980 |
|
|
Maximum dip angle of milling wheel |
° |
5 |
|
|
Diesel engine |
Manufacturer |
USA Cummins |
|
|
Cooling type |
Water cooling |
||
|
Model |
QSX15 |
||
|
The quantity of cylinder stator |
6 |
||
|
Related power |
kw |
470 |
|
|
Engine speed |
rpm |
2100 |
|
|
Oil consumption: Full load |
l/h |
125 |
|
|
Speed/gradeability |
Working speed |
m/min |
0-85 |
|
Walking speed |
km/h |
0-5 |
|
|
Theoretical gradeability(working gear) |
% |
80 |
|
|
Interval to the ground |
mm |
320 |
|
|
Weight/load |
Shipping weight |
kg |
30000 |
|
Working weight |
kg |
34000 |
|
|
Crawler belt device |
Front crawler belt |
mm |
1720 x 300 x 620 |
|
Rear crawler belt |
mm |
1720 x 300 x 620 |
|
|
Tank volume |
Fuel tank |
L |
1400 |
|
Hydraulic fuel tank |
L |
300 |
|
|
Water tank |
L |
3400 |
|
|
Electric system |
F |
24 |
|
|
Conveyor belt device |
Width of material collection conveyor belt |
mm |
850 |
|
Width of material unloading conveyor belt |
mm |
850 |
|
|
Delivery capacit of conveyor belt |
≤m3/h |
375 |
|
|

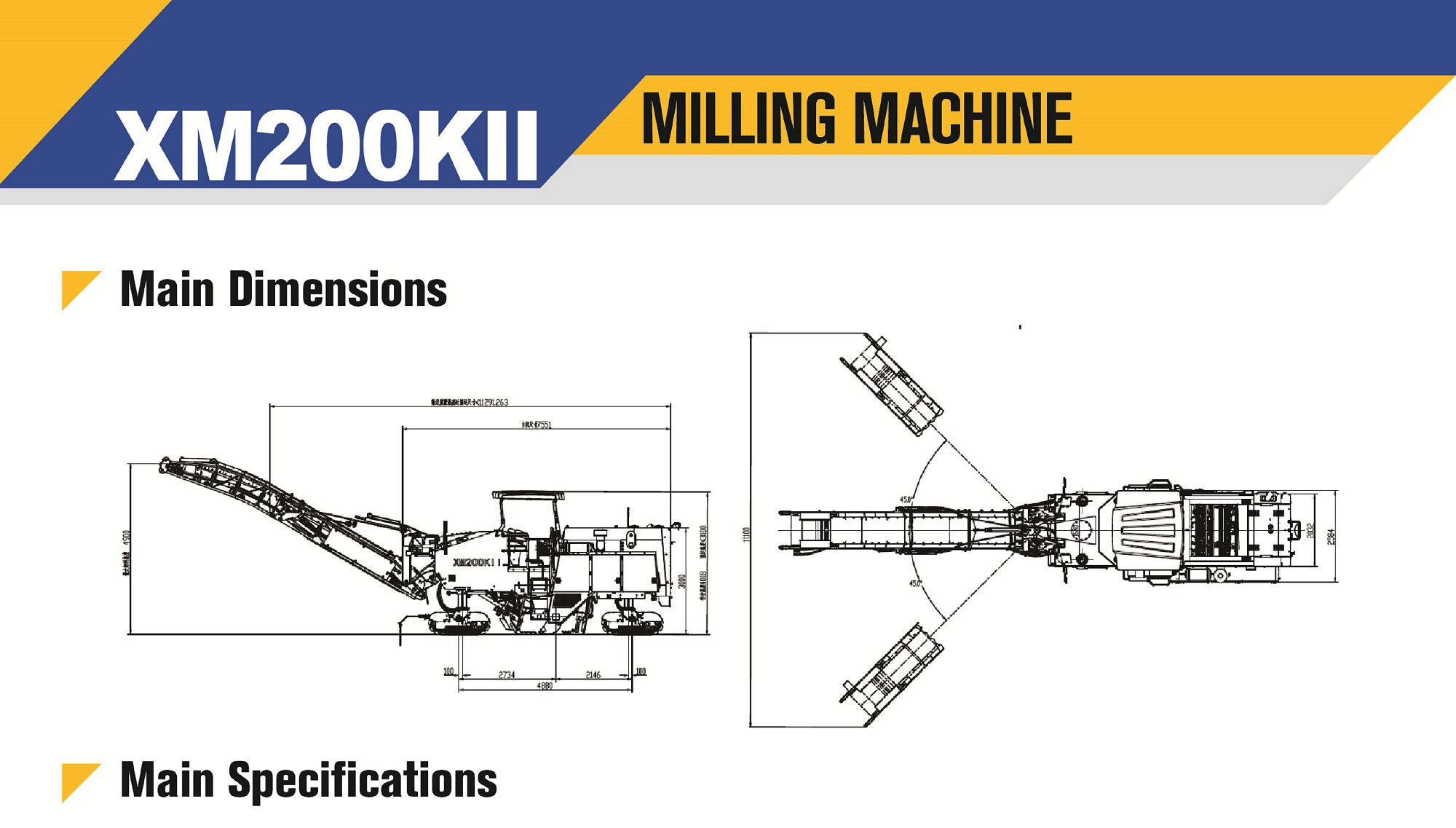

Overall dimension of shipping |
Machinery(length x width x height) |
mm |
7650 x 2580 x 3000 |
|
Belt conveyor(length x width x height) |
mm |
8060 x 1150 x 1500 |
|
