XCMG cold milling planer machine XM200K high quality 2m mini asphalt concrete road milling for sale
Summary
- Dimension(L*W*H):7650*2580*3000mm
- Weight:34000kg
- Power(W):447kw
- Model Number:XM200K
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Milling width (mm):2m
- Milling depth (mm):320mm
- Certification:CE/ISO9001
Specifications
- Weight:34000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
cold milling planer machine XM200K high quality 2m mini
asphalt concrete road milling.

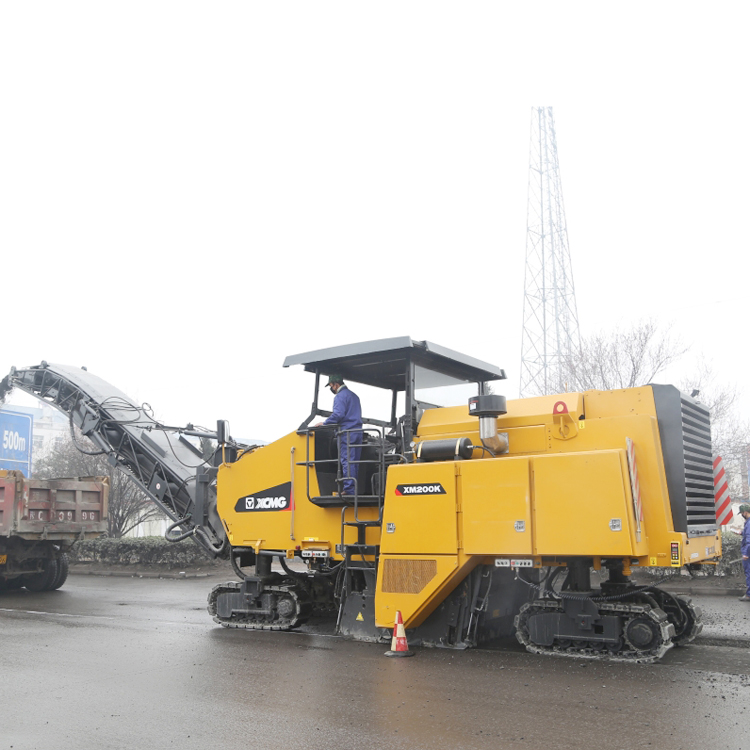

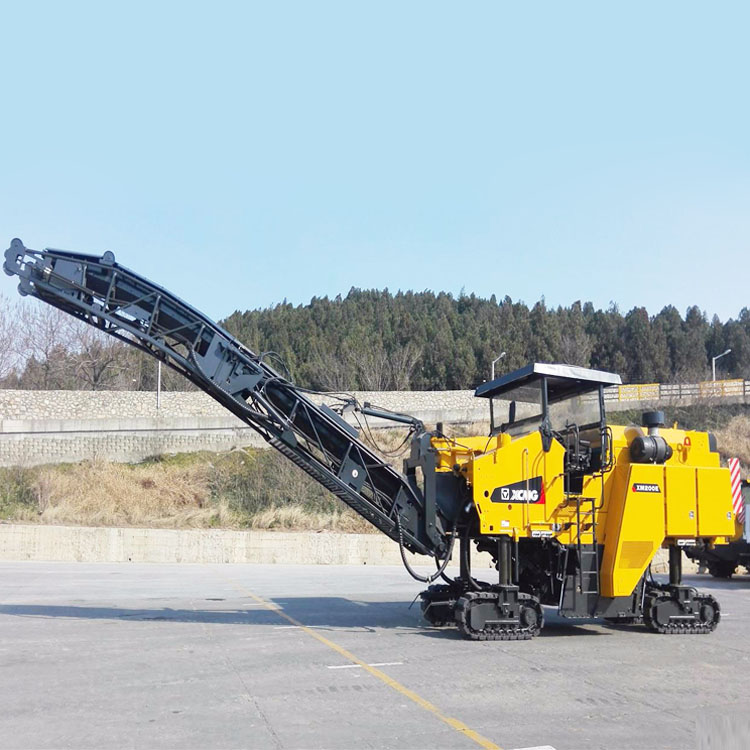

XCMG XM200K road milling machine is for maintaining the
asphalt concrete pavement and mainly applied to the excavation and
refurbishment of large areas of highways, roads of cities and towns, airports,
goods yards and parking lots etc.
Performance Characteristics:
1.The XM200K road milling machine is mainly composed of
milling rotor driven by machinery and two groups of belt conveyors.
2.The full automatic power regulator can make the engine
load automatically realize the mutual matching between the milling and driving
power.
3.Can effectively clean the dust and cool the milling
tools to extend its service life.
4.The machine is equipped with the standard sound-proof
device to prevent environment from the noise.
5.The working efficiency of this equipment is high, and
it is easy to control the milling depth, and has good maneuvering
characteristics.
6.The used materials of milling can be recycled directly
and widely applied to the repair, refurbishment and maintenance of asphalt
pavement.
|
Item |
Unit |
XM200K |
|
|
Maximum milling width |
mm |
2000 |
|
|
Maximum milling depth |
mm |
320 |
|
|
Milling wheel |
Tool spacing |
mm |
15/18 |
|
Number of
tools |
168/146 |
||
|
Milling wheel diameter (with tool) |
mm |
980 |
|
|
Milling wheel
maximum inclination |
° |
5 |
|
|
Diesel engines |
Cooling method |
Water cooling |
|
|
Model |
QSX15 |
||
|
Number of cylinders |
6 |
||
|
Rated power |
kw |
447 |
|
|
Engine speed |
rpm |
2100 |
|
|
Fuel
consumption: full load |
l/h |
120 |
|
|
Speed/grade ability |
Working speed |
m/min |
0-84 |
|
Walking speed |
km/h |
0-5 |
|
|
Theoretical Gradeability (Working Blocks) |
% |
80 |
|
|
Ground
clearance |
320 |
||
|
Weight / load |
Shipping weight |
kg |
30000 |
|
Working weight |
kg |
34000 |
|
|
Track device |
Front track |
mm |
1720×300×620 |
|
Rear crawler |
mm |
1720×300×620 |
|
|
Box volume |
Fuel tank |
L |
1400 |
|
Hydraulic tank |
L |
300 |
|
|
Water tank |
L |
3400 |
|
|
Electrical
system |
V |
24 |
|
|
Conveyor belt device |
Aggregate conveyor belt width |
mm |
800 |
|
Discharging
conveyor width |
mm |
800 |
|
|
Conveyor belt conveying capacity |
≤m3/h |
330 |
|
|
Shipping dimensions |
Machinery
(length×width×height) |
mm |
7650×2580×3000 |
|
Belt conveyor (length × width × height) |
mm |
8060×1150×1500 |
|
