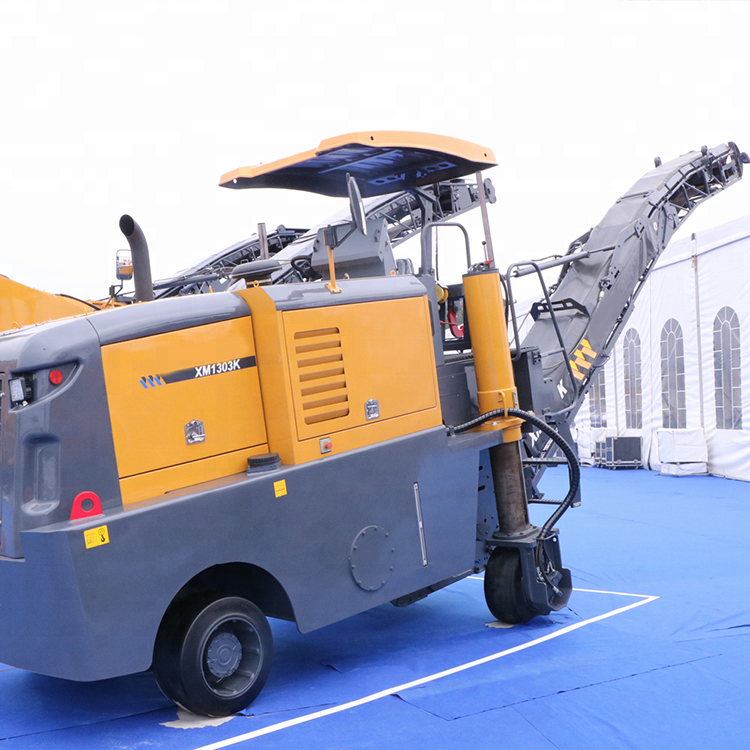

XCMG road milling machine XM1303K 1.3m road cold planer construction road milling machine for sale
Summary
- Dimension(L*W*H):4837*2846*3280mm
- Weight:16800kg
- Power(W):177kw
- Model Number:XM1303K
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Milling width (mm):1300mm
- Milling depth (mm):300mm
- Certification:CE/ISO9001
Specifications
- Weight:16800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
road milling machine XM1303K 1.3m road cold planer
construction road milling machine.
XCMG XM1303K road milling machine is a high-performance
maintaining the asphalt concrete pavement, and 1.3m-wide milling machine mainly
used for the digging and renovation of asphalt concrete pavements in highways,
downtown roads, airports, cargo yards, and parking lots.
Performance Characteristics:
1.With higher working power, and higher milling depth.
2.This engine features lower fuel consumption and better
operation economy.
3.Achieve the 300mm maximum milling depth and remove the
whole asphalt concrete pavement by single cycle.
4.The working speed is higher than the like products.
Achieve more accurate matching between working speed and working load.
5.Achieve higher drive efficiency than hydraulic drive,
longer continuous working time and reduce the down time.
6.Adopts intelligent sprinkling control technology.
|
Model |
|
XM1303K |
|
|
Max. milling with |
mm |
1300 |
|
|
Max. milling depth |
mm |
300 |
|
|
Milling wheel |
Number of tools |
119 |
|
|
Drum diameter with tools |
mm |
930 |
|
|
Engine |
Model |
Shangchai ,SC9DK240G3 |
|
|
Rated power |
kW |
177 |
|
|
Rated speed |
rpm |
2200 |
|
|
Specifications |
Operating speed |
m/min |
45 |
|
Travel speed |
km/h |
8 |
|
|
Ground clearance |
% |
75 |
|
|
Ground clearance |
mm |
180 |
|
|
Operating weight |
kg |
16800 |
|
|
Volume |
Fuel tank |
L |
450 |
|
Hydraulic oil tank |
L |
130 |
|
|
Water tank |
L |
860 |
|
|
Measurement |
Overall machinery L*W*H |
mm |
4837*2846*3280 |
|
Travel mode |
Tire |
||
