XCMG milling machine 1m XM1003K mini cold planer asphalt road milling machine with part for sale
Summary
- Dimension(L*W*H):4837*2546*3750mm
- Weight:16800kg
- Power(W):165/2200kw/rpm
- Model Number:XM1003K
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Milling width (mm):1000mm
- Milling depth (mm):300mm
- Certification:CE/ISO9001
Specifications
- Weight:16800.000kg
- Condition:New
- Moving Type:Other
- Travel speed:0-8km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
milling machine 1m XM1003K mini cold planer asphalt road
milling machine with part.

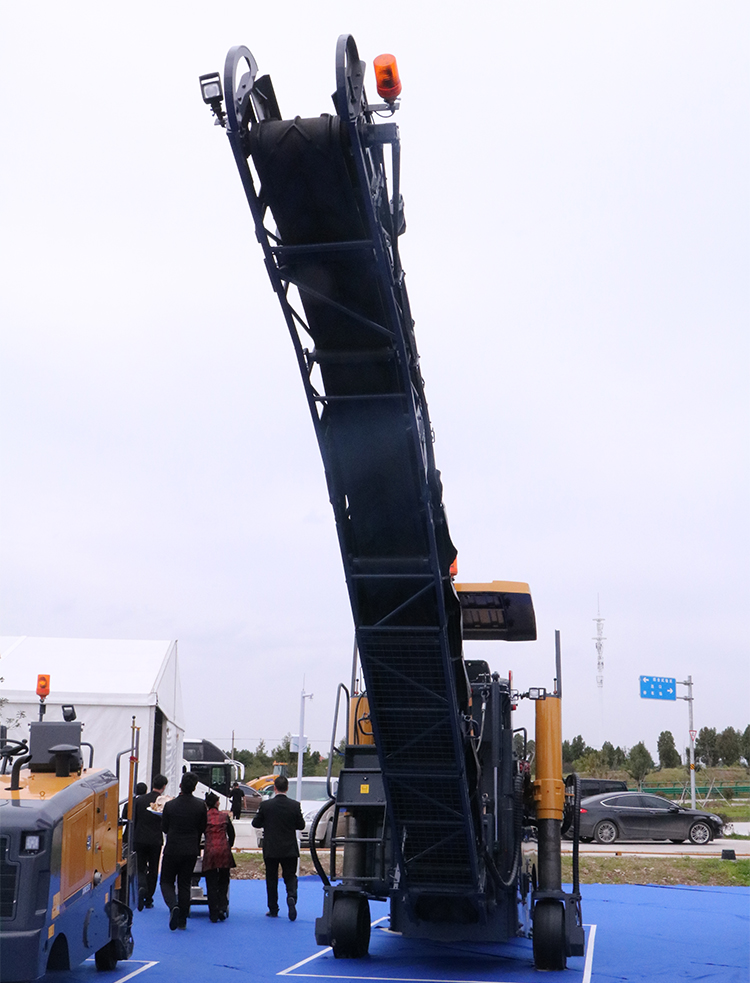

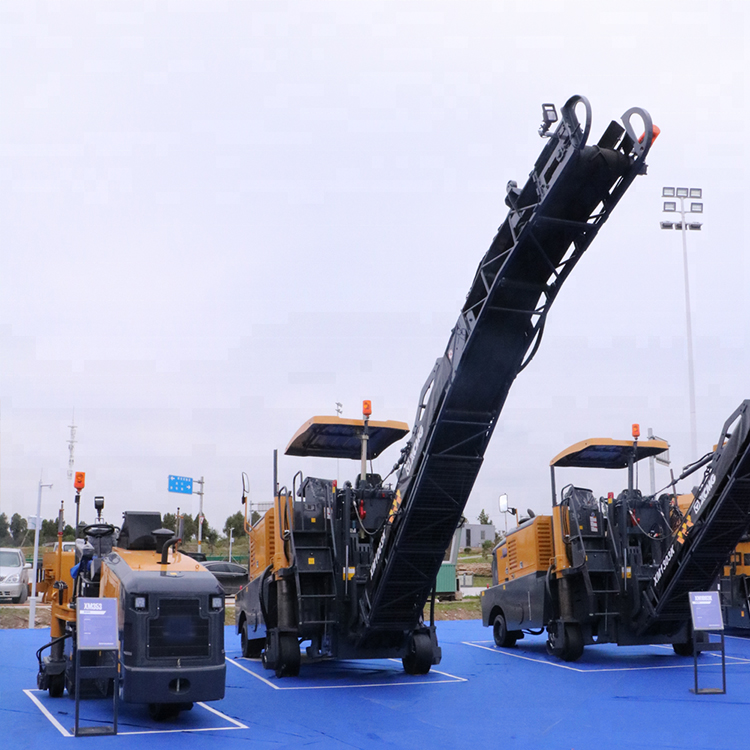

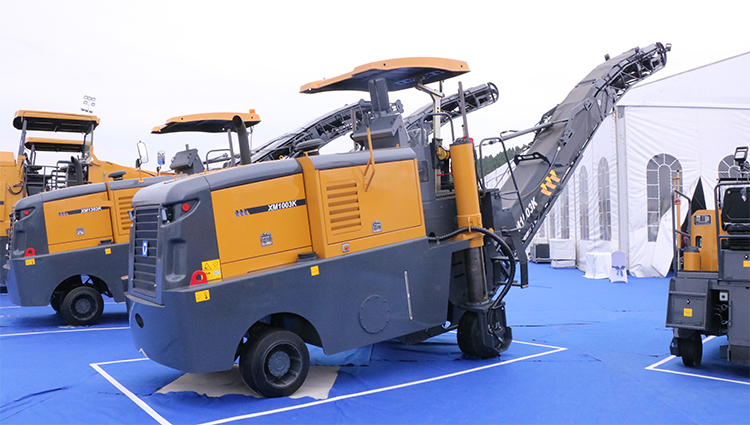

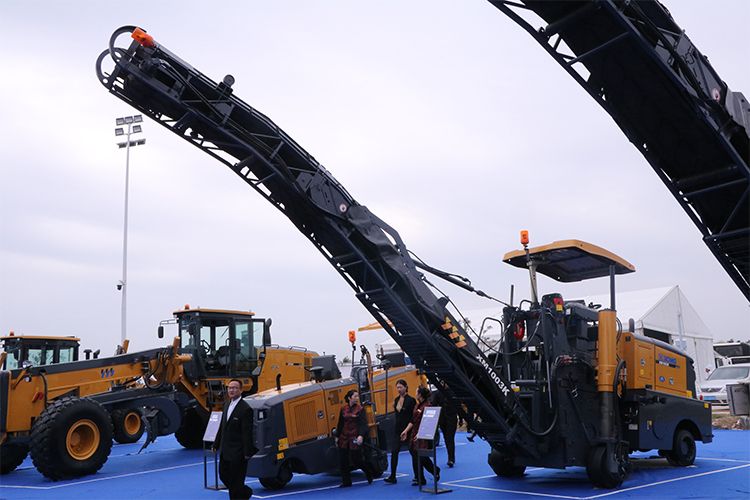

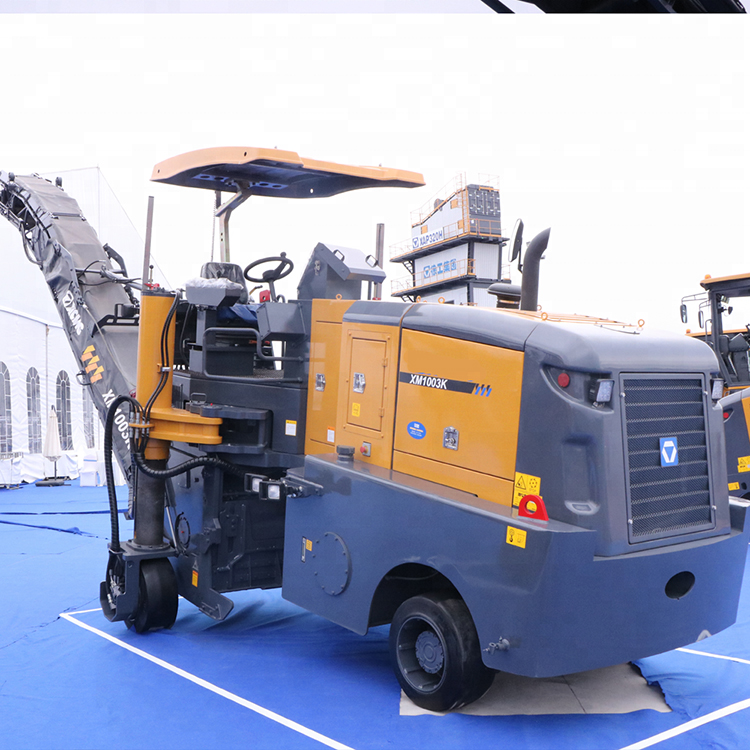

XCMG XM1003K road milling machine is a high-performance
1m-wide milling machine mainly used for the digging and renovation of asphalt
concrete pavements in highways, downtown roads, airports, cargo yards, and
parking lots.
Performance Characteristics:
1.With higher working power and higher effectively handle
the working conditions.
2.This engine features lower fuel consumption and better
operation economy.
3.Achieve the 300mm maximum milling depth and remove the
whole asphalt concrete pavement by single cycle.
4.The working speed is higher than the like products.
Achieve more accurate matching between working speed and working load.
5.The milling drum is driven by mechanical belt to
achieve higher drive efficiency than hydraulic drive.
6.Longer continuous working time and reduce the down
time.
7.Adopts intelligent sprinkling control technology.
|
Item |
Unit |
XM1003K |
|
|
Milling drum |
Milling drum Milling width |
mm |
1000 |
|
Milling depth |
mm |
300 |
|
|
Tool spacing |
mm |
15/18 |
|
|
Number of
tools |
100/82 |
||
|
Rotor diameter with tool |
mm |
930 |
|
|
Engine |
Model |
SC9DK220G3 |
|
|
Cooling method Water cooling |
Water cooling |
||
|
Number of
cylinders |
6 |
||
|
Rated power/speed |
kW/rpm |
162/2200 |
|
|
Displacement |
L |
8.8 |
|
|
Rated power consumption |
L |
36.7 |
|
|
Comprehensive
fuel consumption |
L |
12.3 |
|
|
Emission Standard |
National Ⅲ |
||
|
Electrical
system |
V |
24 |
|
|
Box capacity |
Box capacity Fuel tank |
L |
450 |
|
Hydraulic oil
tank |
L |
130 |
|
|
Water tank |
L |
860 |
|
|
Driving performance |
Driving
performance Maximum operating speed |
m/min |
45 |
|
Maximum speed |
km/h |
8 |
|
|
Theoretical
climbing ability |
% |
75 |
|
|
Ground clearance |
mm |
180 |
|
|
Tire |
Tire Tire Form
Solid Rubber Tire |
Solid Rubber
Tire |
|
|
Front tire size |
mm |
645×300 |
|
|
Rear tire size |
mm |
645×300 |
|
|
Milling material conveying |
Milling material conveyor Belt width |
mm |
500 |
|
Theoretical
feeding capacity |
m3/h |
127 |
|
|
Transport size |
Shipping Size Host Size (L×W×H) |
mm |
4837×2546×3745 |
|
Host size
(right leg swings into the frame) (L×W×H) |
mm |
4837×2057×3745 |
|
|
Folding conveyor size |
mm |
7300×1085×980 |
|
|
Machine weight |
Machine
Quality Work |
kg |
16800 |
|
Front axle load (under working quality) |
kg |
6000 |
|
|
Rear axle load
(under working quality) |
kg |
10800 |
|
