XCMG Brand Road Construction Machines Chinese Soil Stabilizer Cold Asphalt Recycler XLZ2303S Price
Summary
- Rated Power:390kw/2100rpm
- Model Number:XLZ2303S
- Place of Origin:Jiangsu, China
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Brand Road Construction
Machines Chinese Soil Stabilizer Cold Asphalt Recycler XLZ2303S Price.

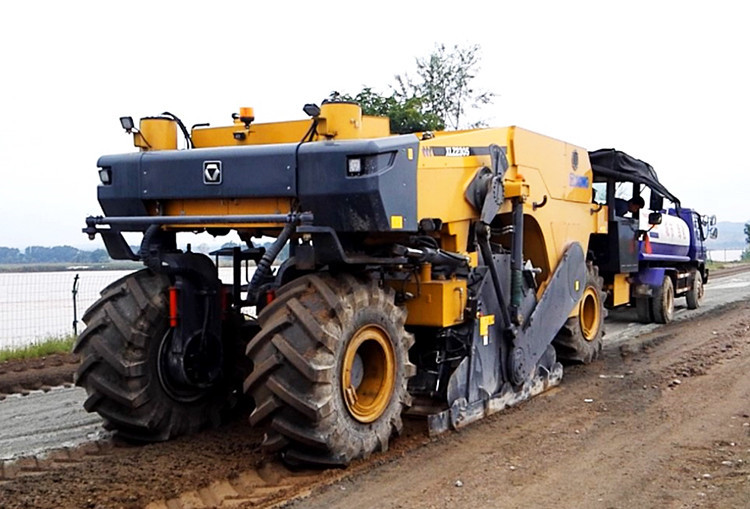

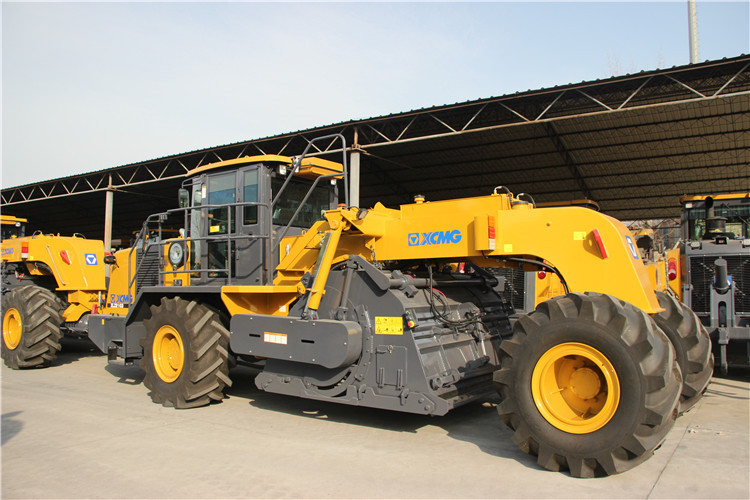

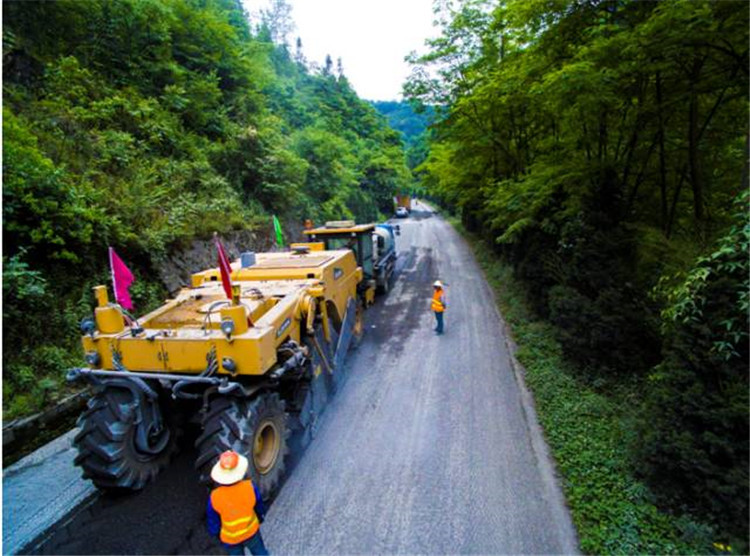

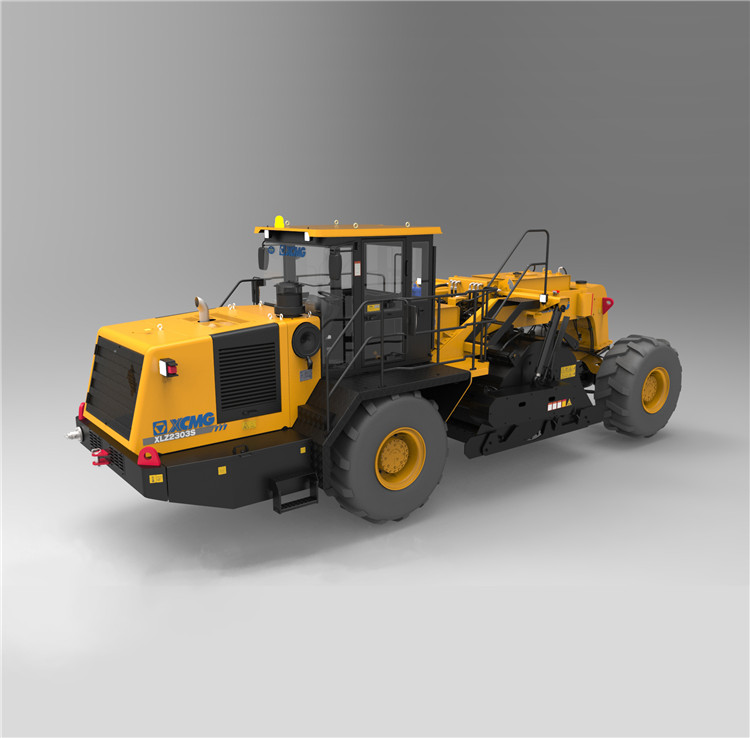

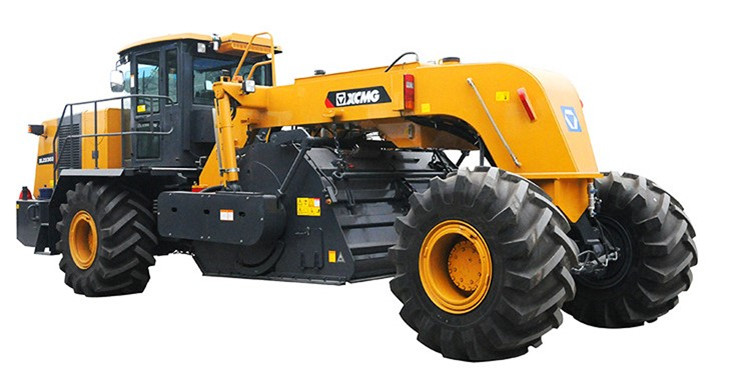

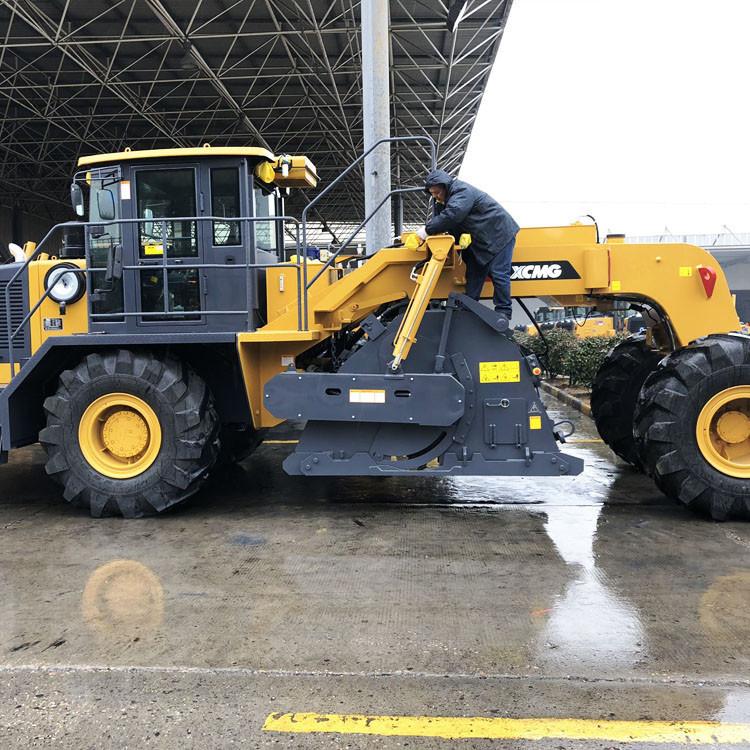

XLZ2303S road cold recycling machine is a multifunctional
road maintenance machine mainly used for the upgrade operations of the used
asphalt county and township roads as well as the in-site stabilized soil mixing
operations. XLZ2303S road cold recycling machine is applicable for the mixing
of natural soil with fller, cement, and lime to improve the mechanical and
physical performances of the soil and for the milling operations of damaged
asphalt or asphalt concrete roads in thickness of no higher than 150mm. In
addition, it's also applicable for the in-situ stabilized soil mixing
operations for the substrates and roadbeds of the highway, urban road, square,
harbor, and parking lot projects.
* The milling width of this machine is 2,300mm and the
optional 2,100mm rotor is available. The maximum milling depth is 400mm and the
cutter spacing is 18mm.
* With XCMG's rotor technology, the XCMG's milling
cutters and cutter holders feature reasonable design and high milling accuracy.
* The milling rotor is driven by high- speed variable
motor and reducer.
* The traveling system includes two speed modes, namely
high speed mode and low. speed mode. The front/rear axles are steering drive
axles (Optional rear steering axle is available) to realize four wheel steering
and the installed low-pressure wide-base isolated-pattern tires feature stable
operation and high adhesion.
* The sprinkler system includes the sprinkling function.
* The steering system incorporates the crabwalk function.
* The engine includes advanced functions, including
online display, malfunction diagnosis, and malfunction warning. In addition,
the data can be more directly read by the installed display.
|
Item |
Unit |
XLZ2303S |
|
|
Operating parameters |
Milling width |
mm |
2300/2100 |
|
Maximum milling
depth |
mm |
0-400 |
|
|
Milling rotor |
Cutter spacing |
mm |
18 |
|
Number of
cutters |
|
162/144 |
|
|
Diameter of
milling wheel(with cutter) |
mm |
1380 |
|
|
Diesel engine |
Manufacturer |
|
Weichai Power
Co.,Ltd |
|
Cooling type |
|
Water-cooled +
air-air inter-cooled |
|
|
Model |
|
WP13G530E310 |
|
|
The quantity of
cylinder stator |
|
6 |
|
|
Related power |
kW |
390 |
|
|
Engine speed |
rpm |
2100 |
|
|
Oil consumption:
Full load |
kg/h |
69.86 |
|
|
Speed/gradeability |
Working speed |
km/h |
0-3.2/4 |
|
Traveling speed |
km/h |
0-22.8/29 |
|
|
Theoretical
gradeability(working gear) |
% |
20 |
|
|
Ground clearance |
mm |
350 |
|
|
Weight/load |
Front axle load |
kg |
17000 |
|
Rear axle load |
kg |
9500/5500 |
|
|
Shipping weight |
kg |
26500/22500 |
|
|
Working weight |
kg |
26500/22500 |
|
|
Tank volume |
Fuel tank |
L |
650 |
|
hydraulic oil
tank |
L |
380 |
|
|
Water tank |
L |
1000 |
|
|
|
Voltage of
electric system |
v |
24 |
|
Overall dimension of shipping |
Machinery(length*width*height) |
mm |
9232 x 3262 x
3450 |
