XCMG XLZ2303K Asphalt Road Cold Recycler for Sale
Summary
- Rated Power:515kw
- Model Number:XLZ2303K
- Place of Origin:Jiangsu,China
- Rated Speed:2100rpm
- Paving Width:2300mm
- Paving Thickness:430mm
- Certification:CE/ISO9001
Specifications
- Weight:33500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

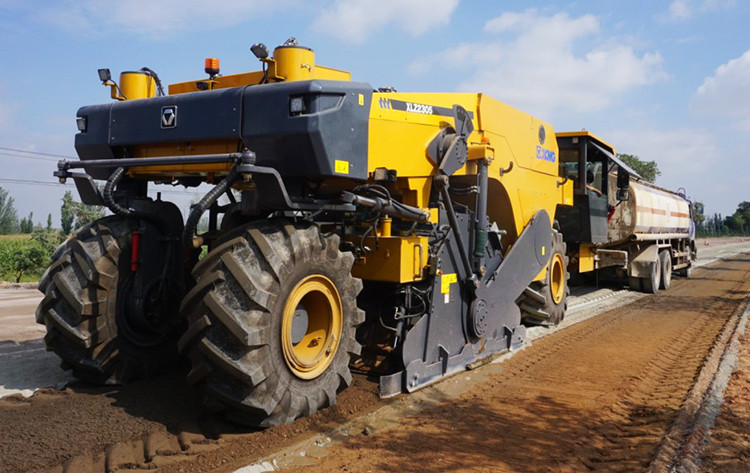

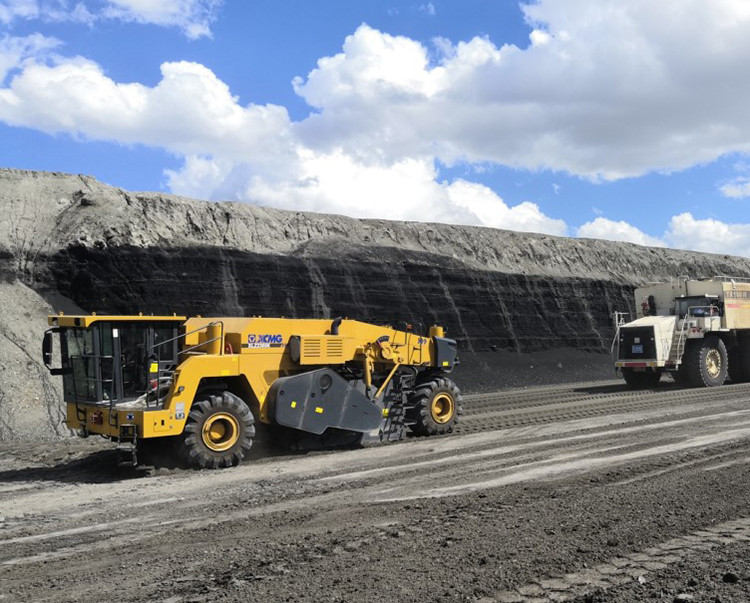

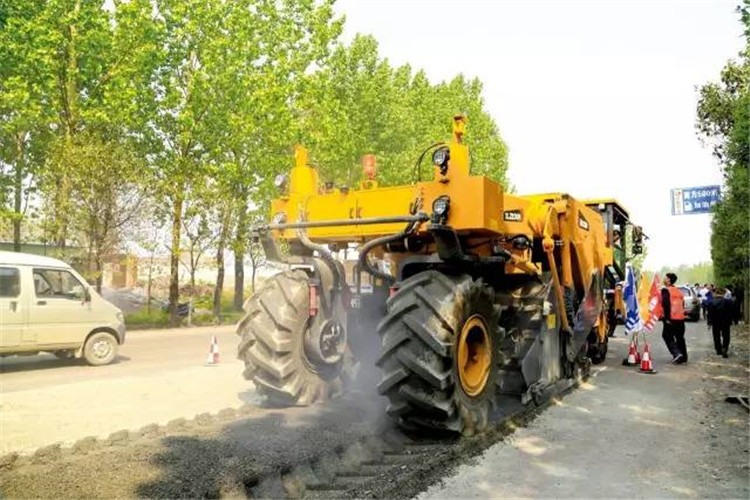

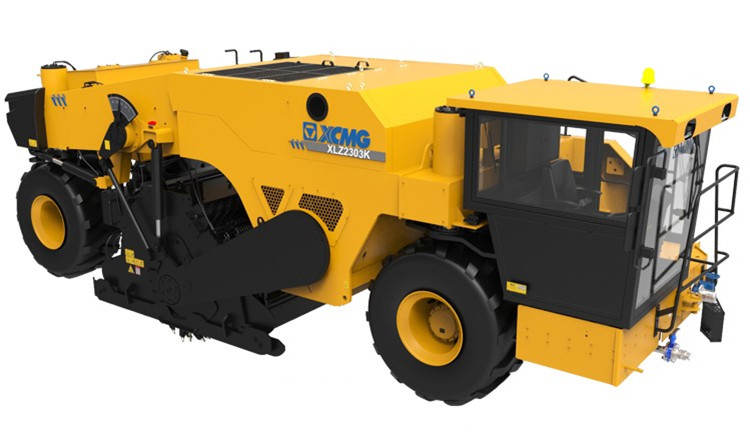

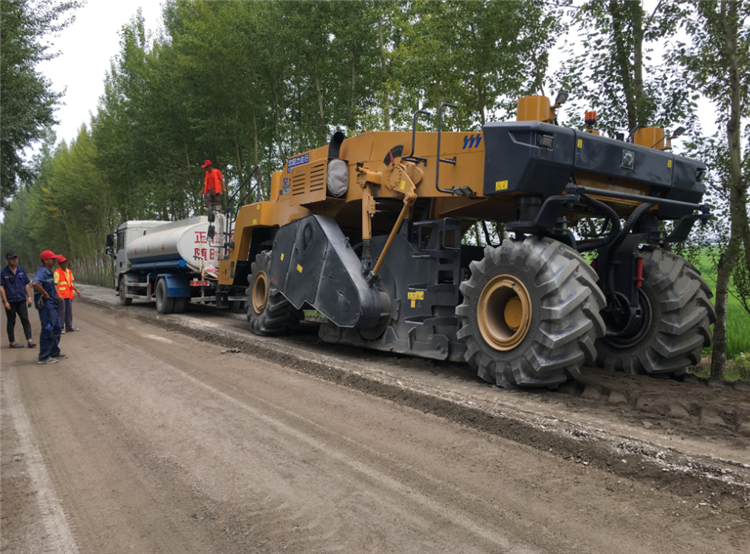

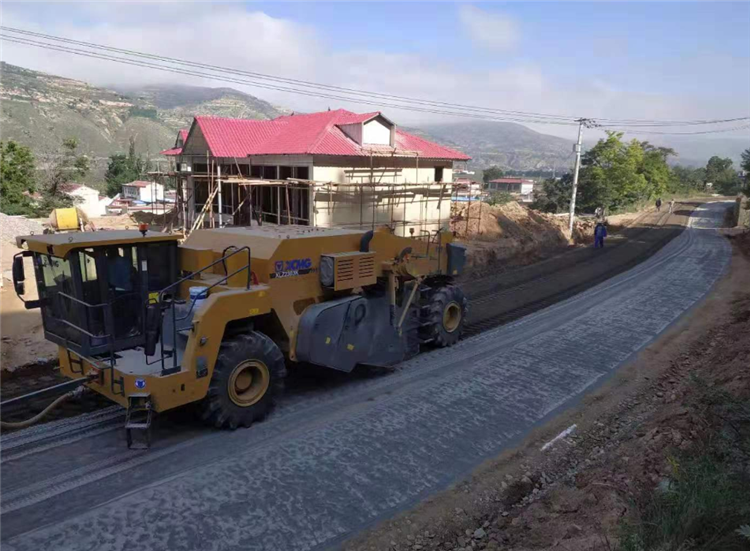

XCMG XLZ2303K Asphalt Road
Cold Recycler.
XLZ2303K road reclaimer is a
set of multi-functional road maintenance equipment. It is mainly used for
upgrading and reconstruction of old asphalt pavement. It is mainly used for
mixing fillers, cement, limes and other objects with natural soil, so as to
improve mechanical and physical properties of soil. It can be also used for
milling damaged asphalt or asphalt concrete pavement with the thickness of
250mm and below.
* The milling width of the road reclaimer is 2300mm; generally, the maximum
milling depth is 430mm.
* Milling rotor will be
driven by two groups of (13) belts of automatic tightening devices,
quick-change tool apron rotor getting Xugong patent technology guarantee cutter
can be installed and disassembled conveniently, so a worn cutter can be quickly
changed, thereby greatly lowering the cutter changing labor intensity,
extending the effective working time of the machine and improving working
efficiency.
* Running system has 4 speed
governing gears. It has four wheels for running and steering; their low-pressure
wide-base big pattern tyres can run stably, with big adhesive force.
* Sprinkling system has water
spraying function; and it can manually and intelligently control the medium
spraying volume.
* Automatic depth control:
built-in sensor of hydraulic cylinder is used for detection, and milling depth
can be displayed on display.
|
Item |
Unit |
XLZ2303K |
|
Milling width |
mm |
2300 |
|
Maximum milling
depth |
mm |
430 |
|
Cutter spacing |
mm |
18 |
|
Diameter of
milling wheel (with cutter) |
mm |
1480 |
|
Manufacturer |
Weichai |
|
|
Cooling type |
Water-cooling |
|
|
Model |
WP17G700E302 |
|
|
The quantity of
cylinder stator |
8 |
|
|
Rated power |
kW |
515 |
|
Engine speed |
rpm |
2100 |
|
Oil
consumption: Full load |
kg/h |
111.4 |
|
Working speed |
km/h |
0-3 |
|
Traveling speed |
km/h |
0-12 |
|
Theoretical
gradeability (working gear) |
% |
50 |
|
Ground
clearance |
mm |
350 |
|
Front axle load |
kg |
19500 |
|
Rear axle load |
kg |
14000 |
|
Shipping weight |
kg |
33500 |
|
Fuel tank |
L |
1500 |
|
Hydraulic oil
tank |
L |
320 |
|
Water tank |
L |
200 |
|
Voltage of
electric system |
V |
24 |
|
Machinery(length*width*height) |
mm |
9340x3218x3197 |
