XCMG Road Construction Machine Soil Recycling 2.3 Meter Cold Asphalt Recycler XLZ2303 For Sale

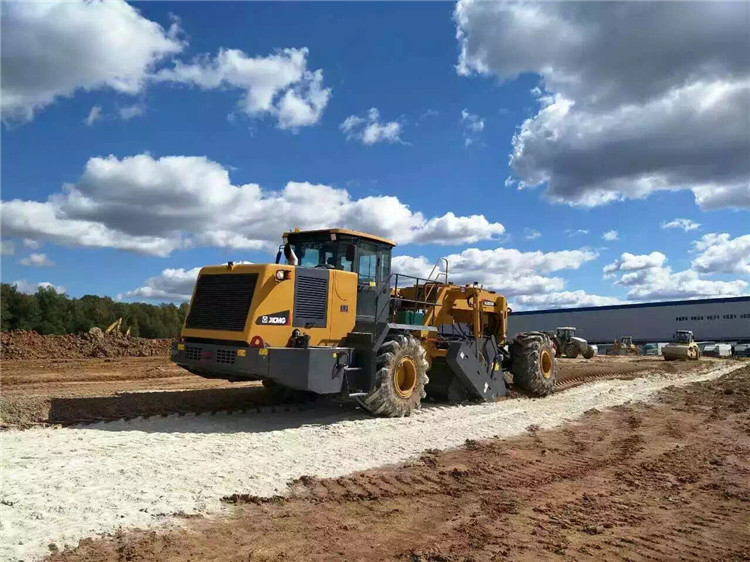

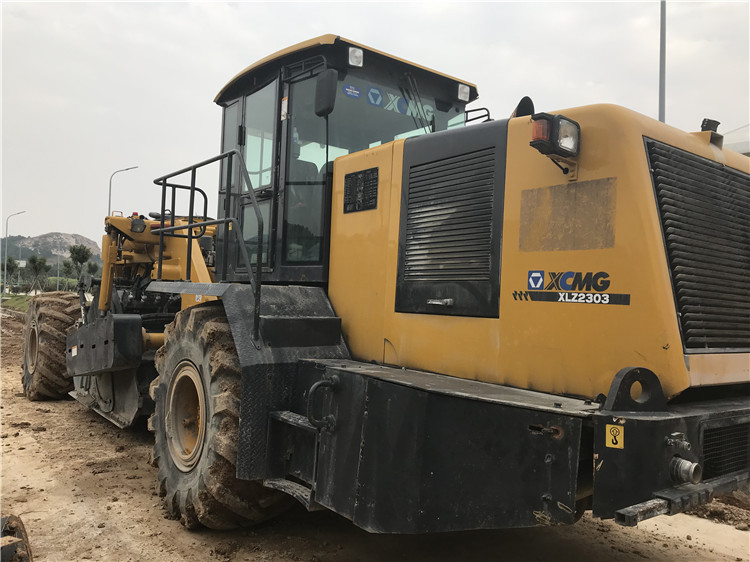

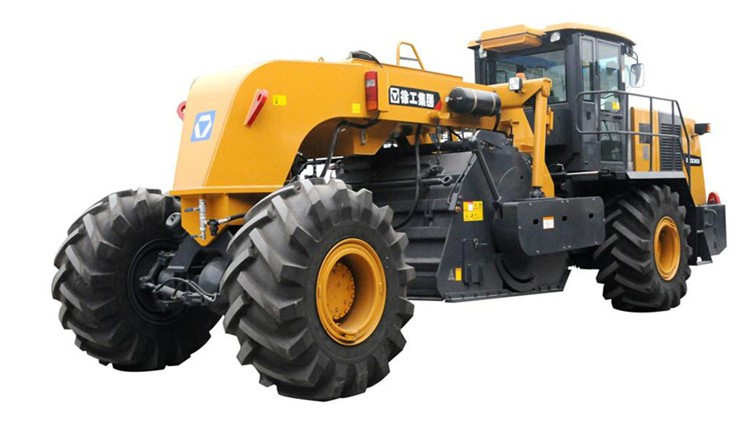

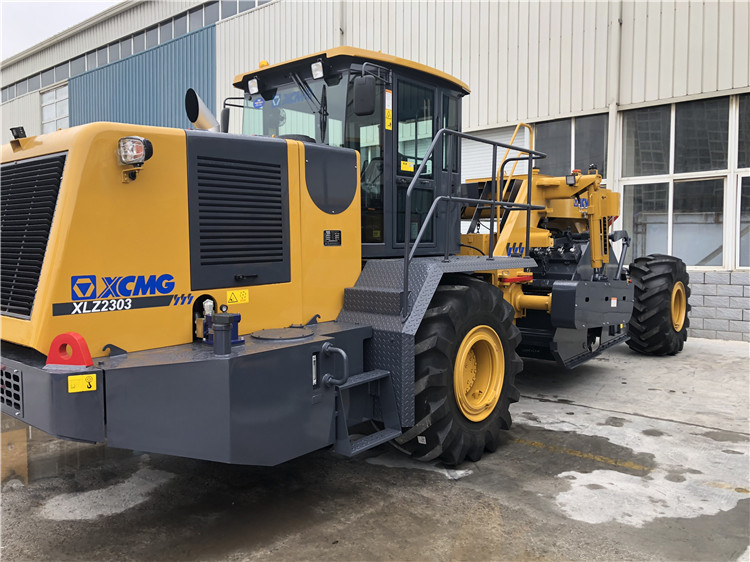

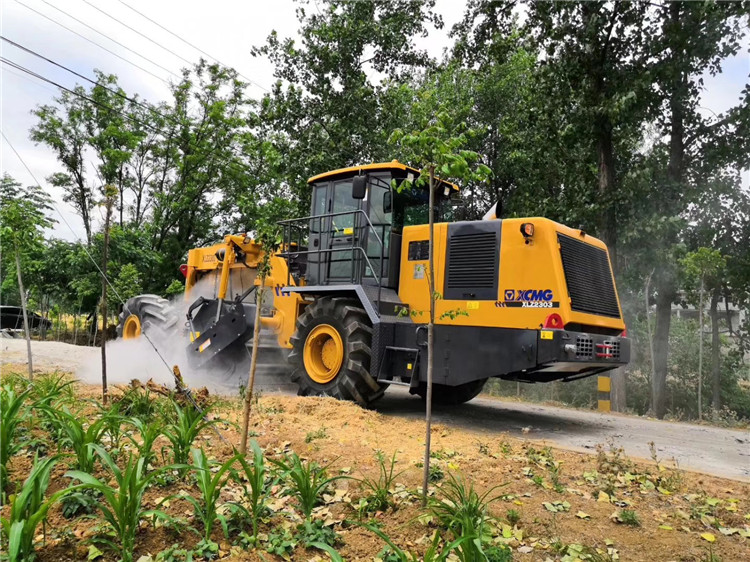

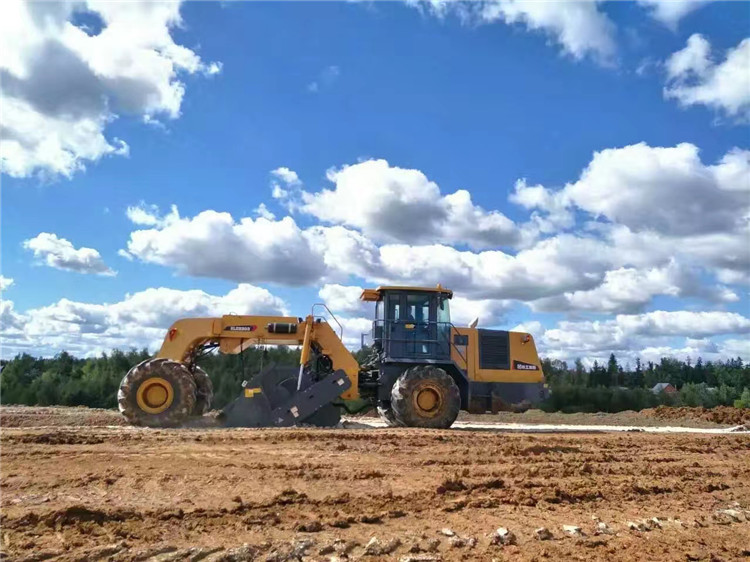

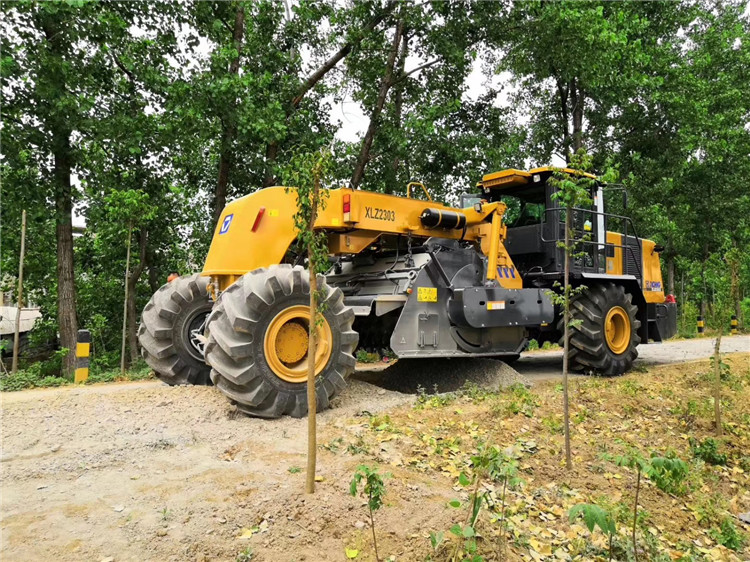

XLZ2303 road reclaimer is a set of multi-functional road maintenance equipment. It is mainly used for upgrading and reconstruction of old asphalt pavement. It is mainly used for mixing fllers, cement, limes and other objects with natural soil, So as to improve mechanical and physical properties of soil. It can be also used for milling damaged asphalt or asphalt concrete pavement with the thickness of 200mm and below.

* The milling width of the road reclaimer is 2300mm; generally, the maximum milling depth is 480mm.

* The milling/mixing rotors are driven by a ,high-speed motor and a speed reducer. The metallic milling/mixing rotors adopt double helix structures, with reasonable arrangement of cutting tools and high milling and mixing accuracy.

* The undercarriage system has two speed modes (high speed mode and low speed mode); it adopts dual full-bridge driver and four-wheeled walking mode. Its low-pres- sure wide-base big tread pattern tires have a good road holding capacity.

* Sprinkling system has the functions of sprinkling water. The sprinkling system can manually and intelligently control flow of sprinkled medium.

* Automatic depth control: built- in sensor of hydraulic cylinder is used for detection, and milling depth can be displayed on display.

* The intelligent control system can achieve on-line display, fault diagnosis, fault alarm, maintenance. hints and other advanced functions in working mode and walking mode; at the same time, various data can be directly read through display.
