XCMG official road machinery concrete paver XLY-1300 multifunction slip form paver for sale
Summary
- Model Number:XLY-1300
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Paving Width:1.5m
- Max. Paving Thickness:1.2m
- Production Capacity:15m/min
- Certification:CE/ISO9001
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
- Manual adjustment:160mm
- Horizontal stroke:770mm
- Vertical stroke:410mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

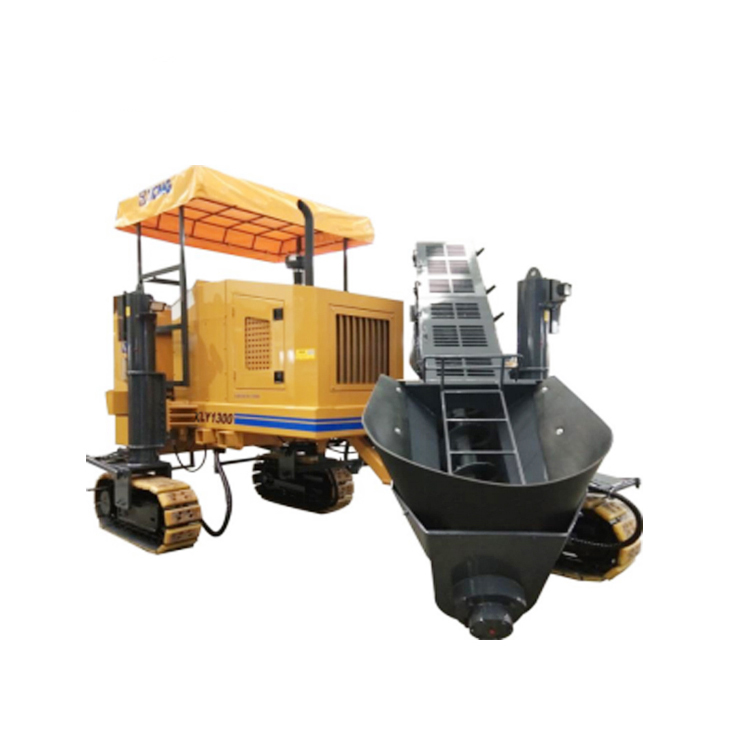

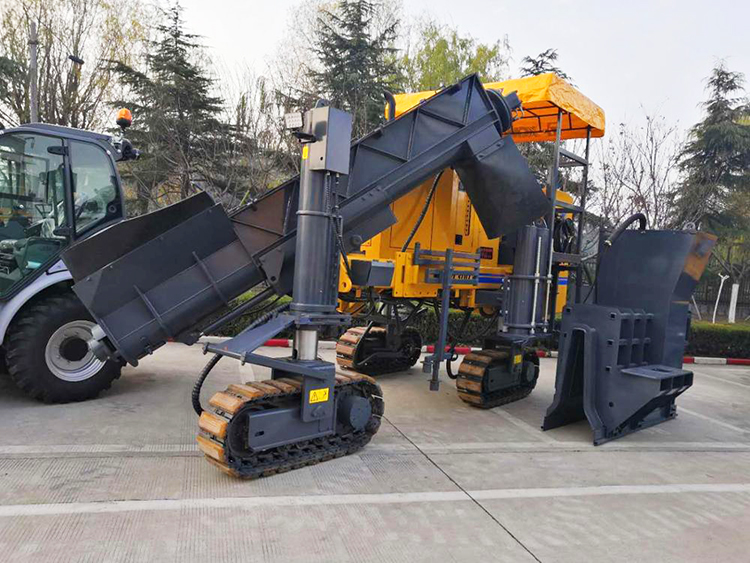

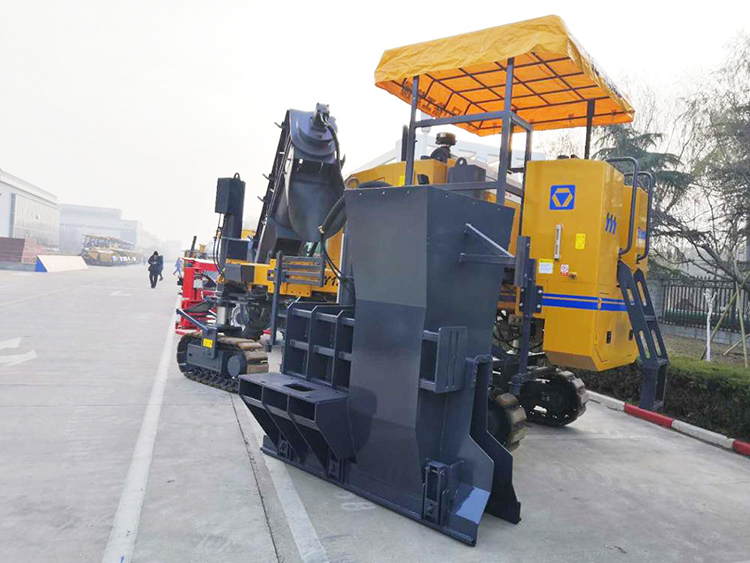

XCMG official road machinery concrete paver XLY-1300 multifunction
slip form paver.
XLY1300 is a type of paver suitable for high quality
concrete construction. Compact and reasonable structure, full hydraulic design,
easy and quick for extensions; Double independent control system provides a
strong guarantee for the perfect operation; accurate matching of mechanics,
electrics and hydraulics, suits slip-form construction for various kinds of
concrete construction including curb, road shoulder, ditch, anti-collision
wall.
* Hinged feeder: overall length 3.7m, diameter
402mm; high-strength casting spiral blade, airtight conveying structure, direct
driven by high torque hydraulic motor; hydraulic angle and length adjustment.
* Control system: providing electronic hydraulic
information of longitudinal gradient, transverse gradient and front and rear
steering.
* Crawler and column: triple crawler, hydraulic
drive, Planetary gear reducer.
* Tamper: six
hydraulic tamper circuit, independent speed adjustment, best accuracy for
sensitivity regulation and dead zone adjustment, self-diagnostic function,
off-line automatic shutdown.
|
Model |
Unit |
XLY-1300 |
|
Max. standard paving width |
m |
1.5 |
|
Max. separation barrier paving height |
m |
1.2 |
|
Horizontal stroke |
mm |
770 |
|
Vertical stroke |
mm |
410 |
|
Manual adjustment |
mm |
160 |
|
Paving speed range |
m/min |
0 -15 |
|
Minimum turning radius |
mm |
1200 |
|
Diesel tank |
L |
320 |
|
Hydraulic oil tank |
L |
130 |
|
Water tank |
L |
320 |
