XCMG 6m3 asphalt distributor XLS603 intelligent asphalt distributor trailer truck for sale
Summary
- Weight:12495kg
- Dimension(L*W*H):7580*2325*2820mm
- Power(W):115/2600kW/(r/min)
- Model Number:XLS603
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Certification:CE/ISO9001
Specifications
- Weight:12495.000kg
- Condition:New
- Moving Type:Other
- Max. spraying width:6m
- Asphalt spraying amount:0.2-3.0kg/m2
- Operating speed:1.5-15km/h
- Capacity of asphalt tank:6m3
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

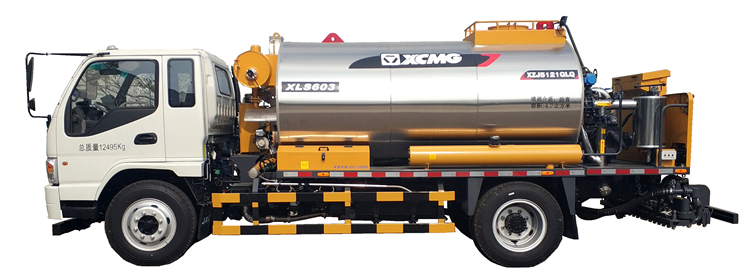

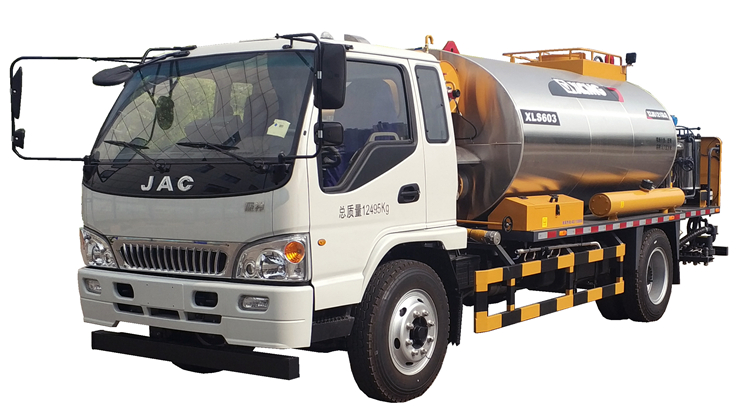

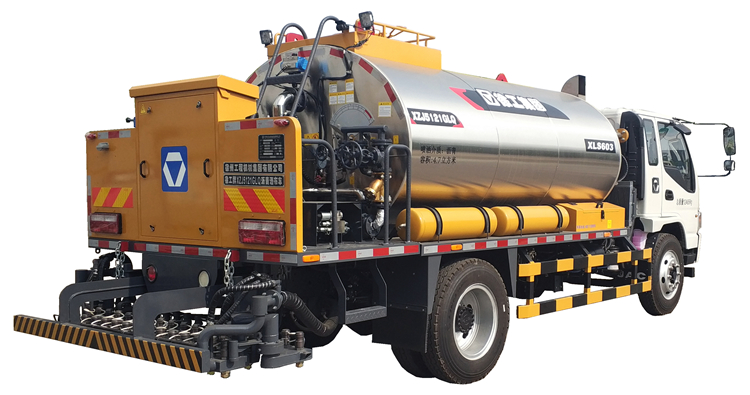

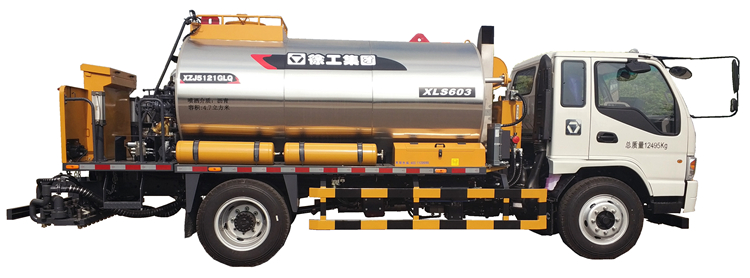

XCMG 6m3 asphalt distributor XLS603 intelligent asphalt
distributor trailer truck.
XCMG XLS603 intelligent asphalt distributor is an
automation product specialized in spraying emulsified asphalt, diluted asphalt,
hot asphalt, modified asphalt. The product controls the whole process of
asphalt spraying through the controller.
thus, the asphalt spraying amount is not affected by the
change of speed and the high-precision spraying is achieved. It is mainly used
for construction and maintenance projects of highway, all grades of roads and
municipal roads, suitable distributing construction of prime coat, bonding
layer, upper and lower sealing layers of different grades of road surface.
Main performance and characteristics:
*Realizes zero-distance starting spraying and uniform and
reliable spraying of asphalt.
*One-to-one control mode for the nozzle is adopted, the
spraying width can be adjusted.
*Automatic and manual operation systems, convenient and
reliable.
*Intelligent control system, automatic spraying can be
achieved.
*Meet construction requirements for different kinds of
asphalt.
*Manual spraying gun is optional for local asphalt
spraying to corners and special Positions.
|
Item |
Unit |
Parameter |
|
Product model |
- |
XLS603 |
|
Working
performance parameter |
||
|
Max. spraying
width |
m |
4.5(6-optional) |
|
Asphalt spraying
amount |
kg/m2 |
0.2-3.0 |
|
Capacity of asphalt
tank |
m3 |
6 |
|
Operating speed |
km/h |
1.5 -15 |
|
Chassis
performance parameter |
||
|
Type |
- |
Jianghuai HFC1120P9K1D5ZV（China Tier V） |
|
Drving model |
- |
4*2 |
|
Engine type |
- |
WP4.1Q160E50 |
|
Engine power |
kW/（r/min） |
115 / 2600 |
|
Max. travelling speed |
km/h |
90 |
|
Overall
dimension parameter |
||
|
Overall dimension
(length× width× height) |
mm |
7580*2325*2820 |
|
Mass parameters
of whole machine |
||
|
Fuel tank |
L |
150 |
|
Min. ground
clearance |
mm |
220 |
|
Curb weight |
kg |
9010 |
|
Total mass |
kg |
12495 |
