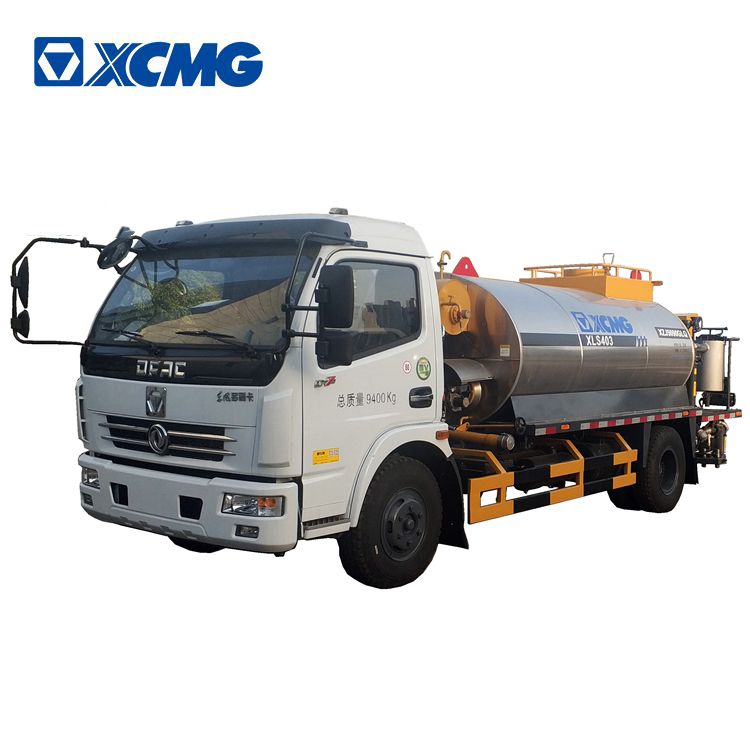

XCMG official intelligent asphalt distributor trailer truck XLS403 for sale
.jpg)
Summary
- Weight:9400kg
- Dimension(L*W*H):7010*2100*2515mm
- Power(W):115/2800kW/(r/min)
- Model Number:XLS403
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Certification:CE/ISO9001
Specifications
- Weight:9400.000kg
- Condition:New
- Moving Type:Other
- Max. spraying width:4m
- Asphalt spraying amount:0.2-3.0kg/m2
- Operating speed:1.5-15km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

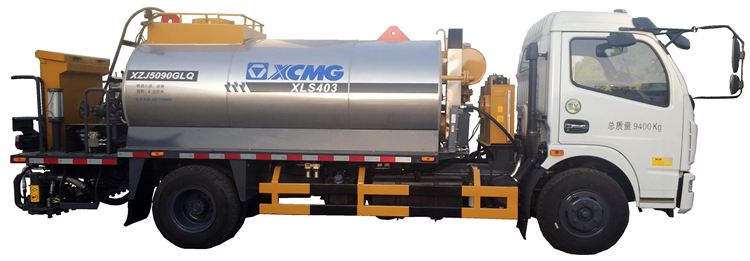

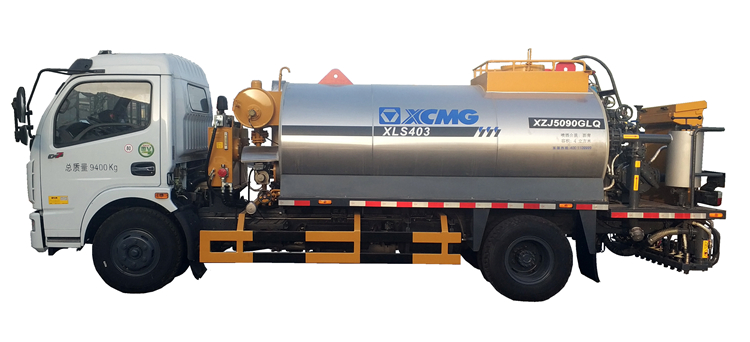

XCMG intelligent asphalt distributor trailer truck XLS403.
XCMG XLS403 intelligent asphalt distributor is an
automation product specialized in spraying emulsified asphalt, diluted asphalt,
hot asphalt, modified asphalt. The product controls the whole process of
asphalt spraying through the controller.
thus, the asphalt spraying amount is not affected by the
change of speed and the high-precision spraying is achieved. It is mainly used
for construction and maintenance projects of highway, all grades of roads and
municipal roads, suitable distributing construction of prime coat, bonding
layer, upper and lower sealing layers of different grades of road surface.
Main performance and characteristics:
*Starting strong spraying control technology realizes
zero-distance starting spraying and uniform and reliable spraying of asphalt.
*Spraying width can be adjusted freely, one-control-three
nozzles.
*Touch display in driver’s cab records asphalt spraying area,
distance and total amount.
*Automatic and manual operation systems, convenient and
reliable.
*Intelligent control system, automatic spraying can be
achieved.
|
Item |
Unit |
Parameter |
|
Product model |
- |
XZJ5090GLQ （XLS403） |
|
Working
performance parameter |
||
|
Max. spraying
width |
m |
4 |
|
Asphalt spraying
amount |
kg/m2 |
0.2-3.0 |
|
Capacity of asphalt
tank |
m3 |
4 |
|
Operating speed |
km/h |
1.5 -15 |
|
Chassis
performance parameter |
||
|
Type |
- |
Dongfeng Duolika EQ1090SJ8BDC（China Tier V） |
|
Drving model |
- |
4*2 |
|
Engine type |
- |
CY4SK251 |
|
Engine power |
kW/（r/min） |
115 / 2800 |
|
Max. travelling speed |
km/h |
103 |
|
Overall
dimension parameter |
||
|
Overall dimension
(length× width× height) |
mm |
7010×2100×2515 |
|
Mass parameters
of whole machine |
||
|
Fuel tank |
L |
120 |
|
Min. ground
clearance |
mm |
210 |
|
Curb weight |
kg |
7300 |
|
Total mass |
kg |
9400 |
