XCMG Soil Stabilizer Machine For Road Construction Machine Soil Stabilization Mixer XL2503 Price
Summary
- Weight:16500Kg
- Dimension(L*W*H):8740*3060*3450mm
- Power(W):316KW
- Model Number:XL2503
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:16500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Soil Stabilizer Machine For Road Construction
Machine Soil Stabilization Mixer XL2503 Price.

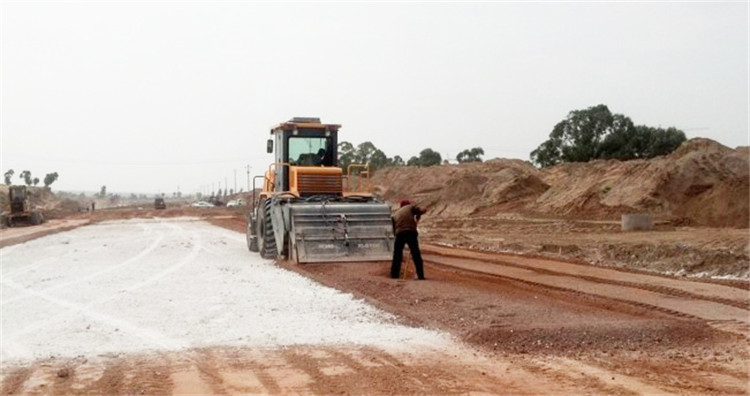

The soil stabilizer applies to site mixing operation of
stabilized oil in substratum and bottom stratum during highway, city road,
square, wharf and parking lot engineering etc.It allows also mix-in-place of
differentproportion of lime ash soil,lime fly ash stabilized aggregate
,stabilized gravel, etc.
Performance Characteristics:
* The machine adopts WP12 series electronic fuel
injection engine, this engine has low emission and noise; the engine has some
advanced functions like online display, diagnosis, and fault warning.
* Drive system adopts engine +transfer case, the transfer
case connects the rotor pump, walking pump and auxiliary pump.
* Work rotor is driven by high speed motor and speed
reducer, work rotor uses Kennametal tool bit and the tool holder, the rotor
layout is independent designed,reasonable and ensuresevenly mixing, etc.
* Travel system: front axle steering, rear axle, drive
axle has two gears, high speed used for traveling, low speed used for
operation. The low pressure wide base deep tread tyres are installed in the
drive axle, this tyre has big adhesive force and strong anti slip ability.
* This cab uses wide structure, installs the heating and
air conditioner equipped with fan device, Mp3 and radio,comfortable operating.
|
Item |
Unit |
XL2503 |
|
Mixing width |
mm |
2500 |
|
Max. milling depth |
mm |
0~400 |
|
Rotor diameter |
mm |
1280 |
|
Min. turning radius |
mm |
7100 |
|
Manufacturer |
Weichai |
|
|
Cooling mode |
Water cooled+ air intercooling |
|
|
Type |
WP12.430N |
|
|
Air cylinder number |
6 |
|
|
Rated power |
kw |
316 |
|
Rated speed |
rpm |
1900 |
|
Max. fuel consumption rate |
g/kW.h |
207.6 |
|
Electrical system |
24V |
|
|
Working speed |
km/h |
0~3 |
|
Travelling speed |
km/h |
0~23 |
|
Theoretical gradeability (working gear) |
% |
20 |
|
Ground clearance |
mm |
450 |
|
Fuel tank |
L |
450 |
|
Hydraulic oil tank |
L |
450 |
|
Machine mass |
kg |
16500 |
|
Front axle mass |
kg |
2500 |
|
Rear axle mass |
kg |
14000 |
|
Mechanical (length x width x height) |
mm |
8740*3060*3450 |
