![XCMG 24m telescopic boom lift XGS72J China new self propelled hydraulic mobile boom lift for sale XCMG 24m telescopic boom lift XGS72J China new self propelled hydraulic mobile boom lift for sale](http://www.machmall.com/images/store/357636/item/XGS72J-1.jpg_l.jpg)
XCMG 24m telescopic boom lift XGS72J China new self propelled hydraulic mobile boom lift for sale
![](/app/topc/statics/images/close.png)
![XCMG 24m telescopic boom lift XGS72J China new self propelled hydraulic mobile boom lift for sale](http://www.machmall.com/images/store/357636/item/XGS72J-1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:12500kg
- Overall Dimension:10150*2490*2800mm
- Table Size:2400*900mm
- Max Lifting Height:24m
- Rated Loading Capacity:230/340kg
- Power:55.4/(2600)kW/(r/min)
- Lift Drive / Actuation:hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS72J
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:12500.000kg
- Condition:New
- Moving Type:Other
- wheelbase:2500mm
- Maximum traveling speed:6km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

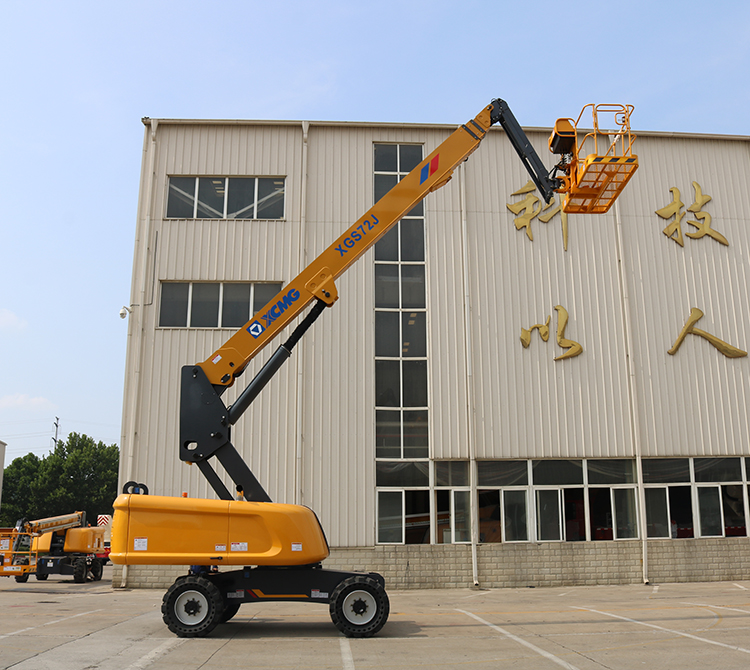

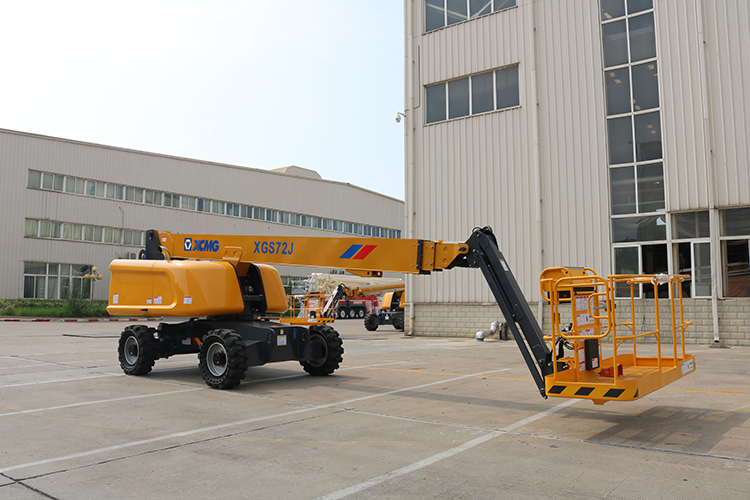

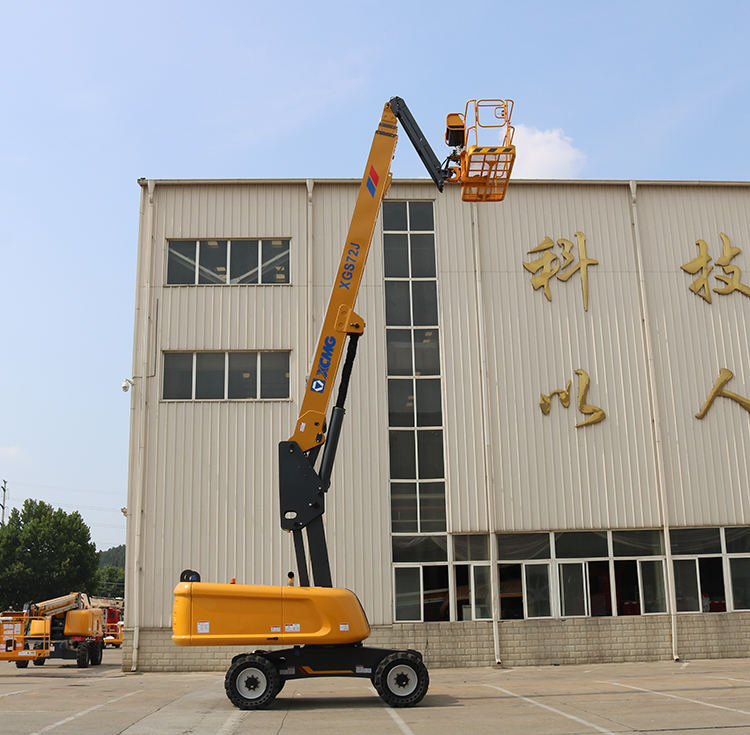

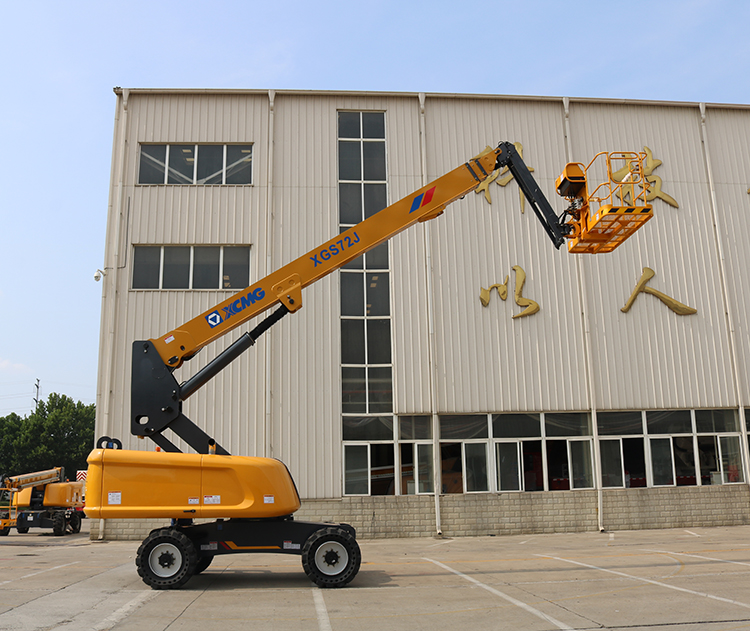

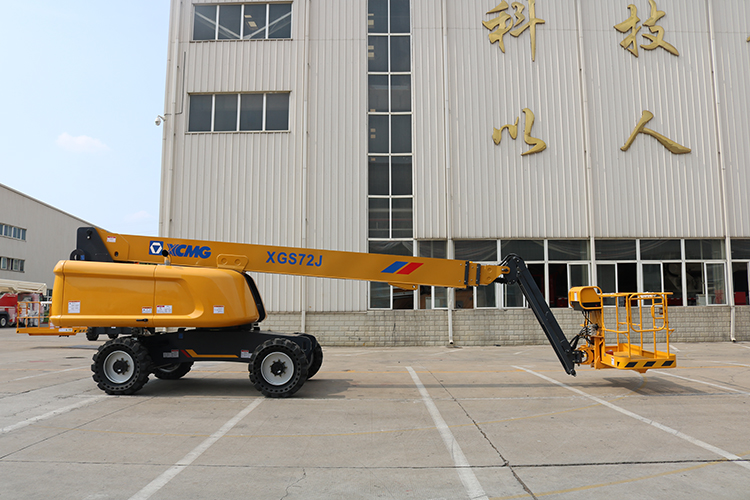

24m telescopic boom lift XGS72J China new self propelled hydraulic mobile boom lift.
XCMG XGS72J telescopic boom straight arm and self-propelled aerial operation platform highlights with outstanding performance, efficiency, dynamics and easy operation. It is leading in the industry with maximum carrying capacity of 340kg, high operation height and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
1. Realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
2. The machine is excellent in drive and adaptability to road.
3. Making its work performance at leading edge.
4. Improves safety of extending mechanism and extends service life of steel rope.
5. Implementing the auto leveling, the dynamic monitoring and the fault warning.
Item | Unit | Parameter |
Overall length of complete machine | mm | 10150 |
Overall width of complete machine | mm | 2490 |
Overall height | mm | 2800 |
Wheelbase | mm | 2500 |
Maximum working height | m | 24 |
Maximum platform height | m | 22 |
Maximum working range | m | 18.3 |
Maximum carrying weight | kg | 230 (Without limit)/340 (With limit) |
Luffing range of boom | ° | -5 ~ +75 |
Slewing angle of turntable | ° | 360 |
Maximum rearward slewing | mm | 1550 |
Dimension of platform | mm | 2400×900 |
Slewing angle of platform | ° | 160 |
Overall weight | kg | 12500 |
Maximum traveling speed | km/h | 6 |
Minimum turning radius | m | 6 |
Minimum ground clearance | mm | 230 |
Maximum gradeability | % | 45 |
Specification of tire | - | 355/55D625 |
Engine model | - | Duetz TD 2.9 L4 |
Engine rated power | kW/(r/min) | 55.4/(2600) |
uMore telescopic boom aerial work platform
