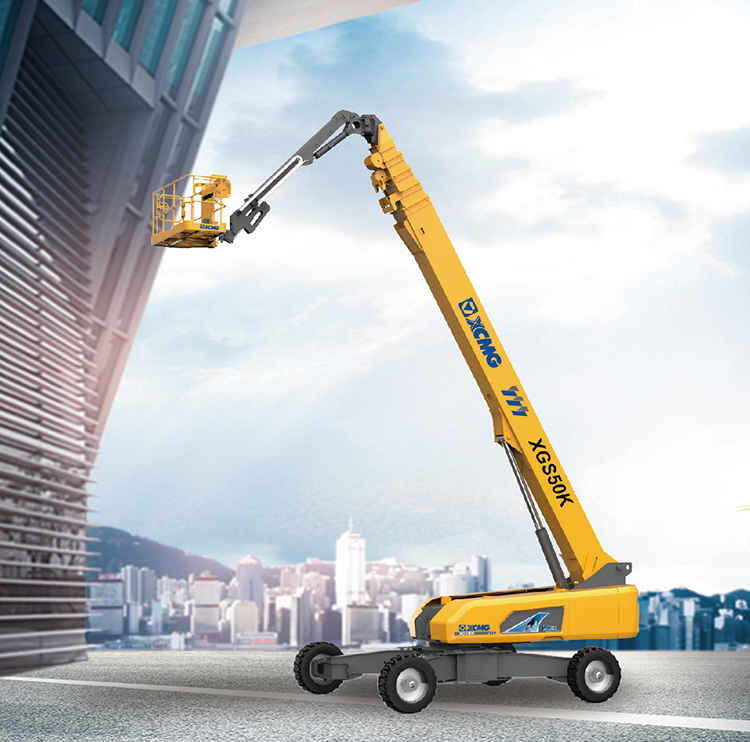

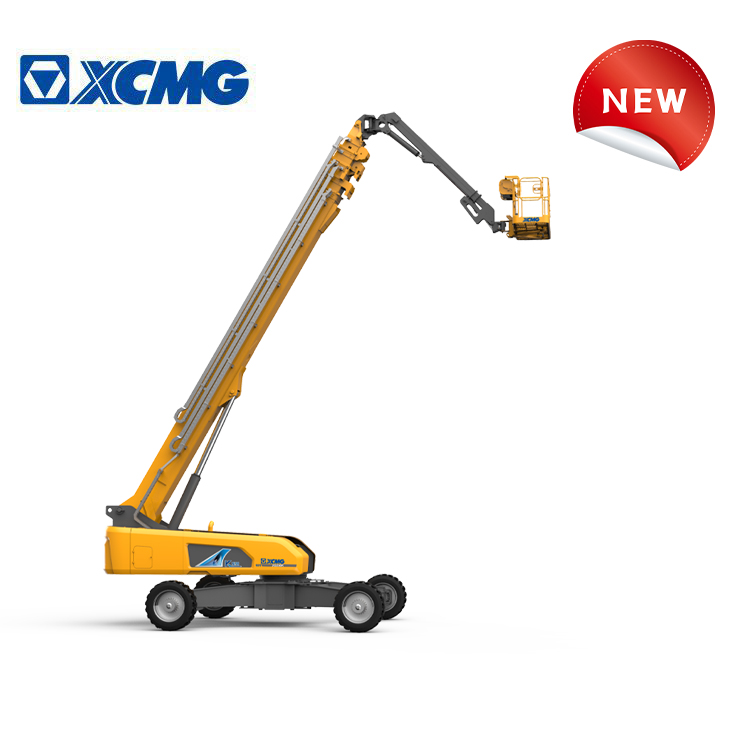

XCMG new telescopic boom lift XGS50K China 50m mobile hydraulic electric telescopic boom lift
Summary
- Weight:24000kg
- Overall Dimension:17460*2490*3000mm
- Table Size:2400*900mm
- Max Lifting Height:50.3m
- Rated Loading Capacity:300/460kg
- Power:62kW
- Lift Drive / Actuation:hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS50K
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:24000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
new telescopic boom lift XGS50K China 50m mobile
hydraulic electric telescopic boom lift.
XCMG "K Series" mobile elevating work platform
XGS50K is equipped with axle balance system as standard, electronically
controlled four-wheel steering, and has strong road adaptability.
Performance Characteristics:
1. Electronically controlled four-wheel steering,
stepless speed regulation for boarding motion, flexible and flexible operation;
2. Equipped with a load-sensing hydraulic system, the
boom weight is lowered, and the construction is more energy-efficient and
stable;
3. Configure platform active security defense device,
strong security;
4. Hyperbolic operation line, strong operation ability;
5. The whole machine adopts pre-safety control logic, is
equipped with independent emergency power source, and the emergency vehicle is
more aspect.
|
Item |
Unit |
Parameters |
|
a.Overall length (transportation state) |
m |
17.46 (12.55) |
|
b. Overall width |
m |
2.49/5.03 |
|
c. Overall height |
m |
3 |
|
d. Wheelbase |
m |
5.22/4.59 |
|
Max. working height |
m |
50.3 |
|
Max. platform height |
m |
48.3 |
|
Max. working range |
m |
24.6 |
|
Max. load capacity |
kg |
300(unlimited)/460(limited） |
|
Boom luffing range |
° |
-1～80 |
|
Slewing angle of turntable |
° |
360 |
|
Max. Tail swing |
m |
2 |
|
Dimension of platform |
m |
2.4×0.9 |
|
Slewing angle of platform |
° |
180° |
|
Overall weight |
kg |
24400 |
|
Max. traveling speed |
km/h |
4.5 |
|
Min. turning radius (shaft restricts/stretches) |
m |
9.5/6.6(Four-turn) |
|
Min. ground clearance |
m |
0.45 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
– |
445/55-25 R28 |
|
Engine model |
– |
YC 4FA85-T300 |
|
Engine rated power |
kW/(r/min) |
62/2200 |
