XCMG boom lift XGS40K China new 40m telescopic mobile hydraulic electric boom lift
Summary
- Weight:21460kg
- Overall Dimension:14060*2490*3000mm
- Table Size:2400*900mm
- Max Lifting Height:40.2m
- Rated Loading Capacity:300/460kg
- Power:55kW
- Lift Drive / Actuation:hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS40K
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:21460.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

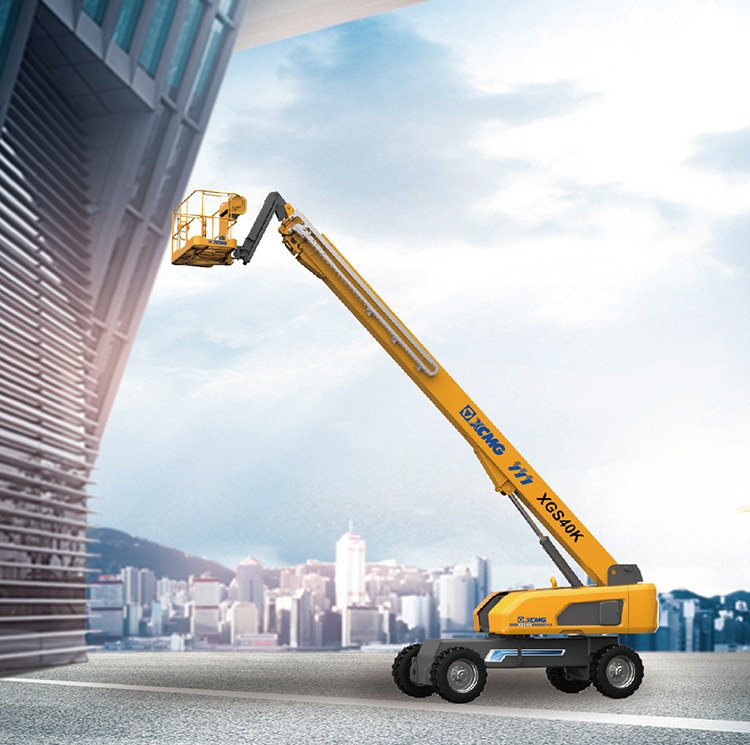

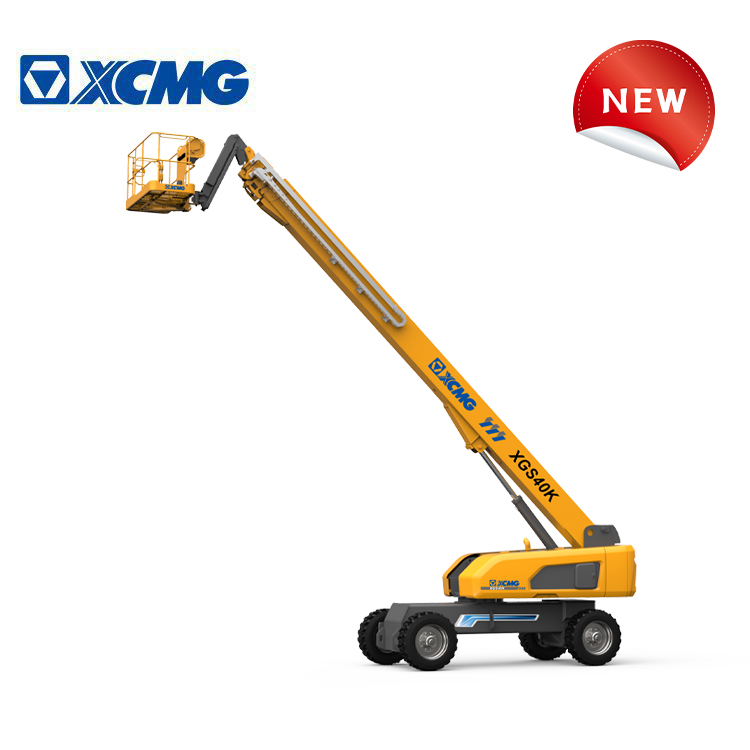

XCMG boom lift XGS40K China new 40m telescopic mobile
hydraulic electric boom lift.
XGS40K is a kind of Telescopic Mobile Elevating Work
Platform with a Max. working height of 40.2m, a Max. load capacity of 460kg and
a Max. climbing capacity of 40%. The technologies of four wheel drive, electric
control steering and its wide foam tire, climbing ability is advanced in this
field.
With double operating amplitude curve control technology,
its abilities of working height, luffing range, load capacity is excellent.
What’s more, its overall height is lower than 3m, which will be easier for
transportation.
This machine is efficient, safe and reliable, which could
meet the needs of customers in construction, bridge and equipment maintenance,
shipyard, petrochemical industry, leasing industry, etc.
Advantages and features:
1.The 2.4m wide platform would be convenient to carrying
tools and materials.
2.The technologies of four wheel drive, luffing range,
load capacity is excellent in this field.
3.Meet the demands of different working conditions.
4.Realize the independent front and rear axle steering,
all-wheel and crabs steering and other four kinds of steering model.
5.With axle balance control system, it could run on the
rough road.
6.It could run on soft road, which gives it a strong
adaptability to the road condition.
|
Unit |
Parameters |
|
|
Overall length |
mm |
14060 |
|
Overall width |
mm |
2490/3800 |
|
Overall height |
mm |
3000 |
|
Wheelbase |
mm |
3800 |
|
Max. working height |
m |
40.2 |
|
Max. platform height |
m |
38.2 |
|
Max. working range |
m |
24.6 |
|
Max. load capacity |
kg |
300(unlimited)/460(limited) |
|
Boom luffing range |
° |
-6.5～+75 |
|
Slewing angle of turntable |
° |
360 |
|
Max. Tail swing |
mm |
2255/1600 |
|
Dimension of platform |
mm |
2400/900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
21460 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius |
m |
10.8/8.2(Two-turn) 6.8/5.8(Four-turn) |
|
Min. ground clearance |
mm |
320 |
|
Max. gradeability |
% |
40 |
|
Specification of tire |
/ |
445/50D710 |
|
Engine model |
/ |
YC4FA75-T300 |
|
Engine rated power |
kW/(r/min) |
55 |
