XCMG factory 40m hydraulic telescopic boom lift XGS40 mobile elevated lift for sale
Summary
- Weight:20600kg
- Overall Dimension:14060*2490*3000mm
- Table Size:2400*900mm
- Max Lifting Height:38.2m
- Rated Loading Capacity:230/340kg
- Power:55.5kW
- Lift Drive / Actuation:hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS40
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:20600.000kg
- Condition:New
- Moving Type:Other
- Wheelbase:3800mm
- Maximum traveling speed:5km/h
- Engine brand:Perkins
- Min. ground clearance:320mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

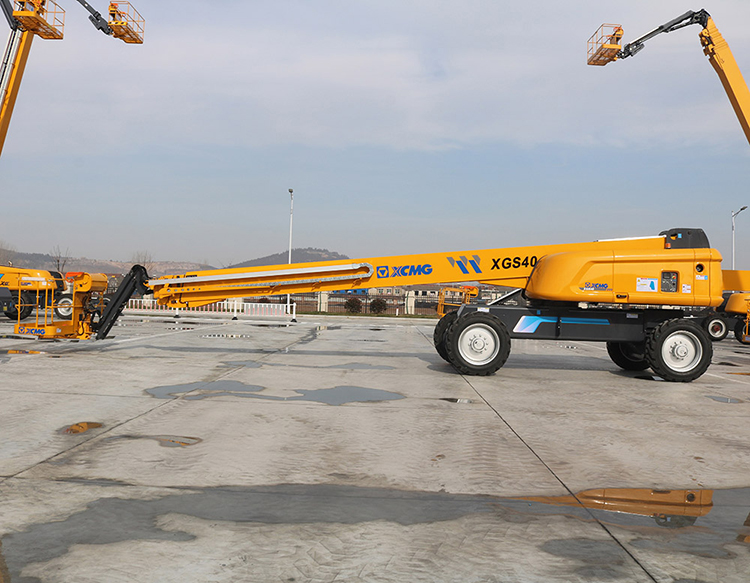

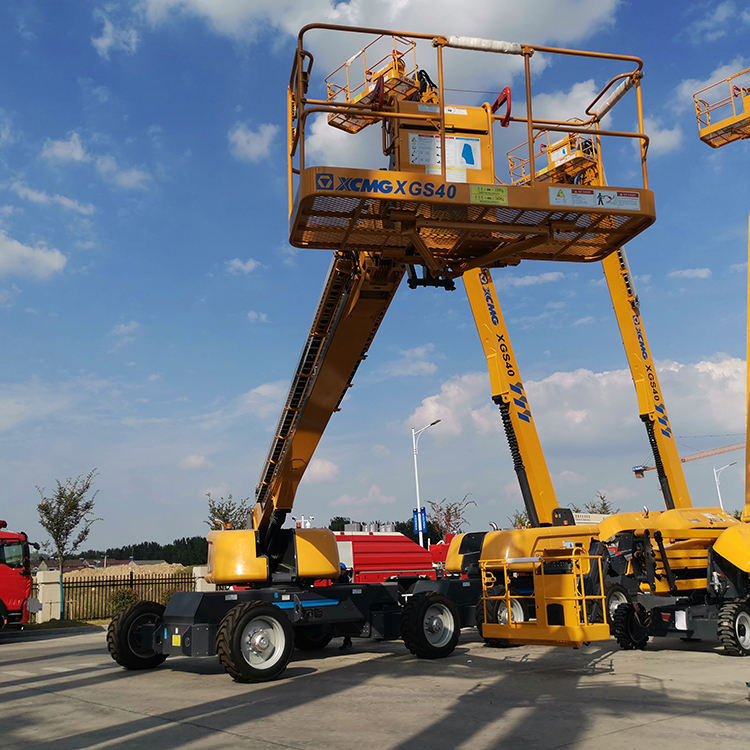

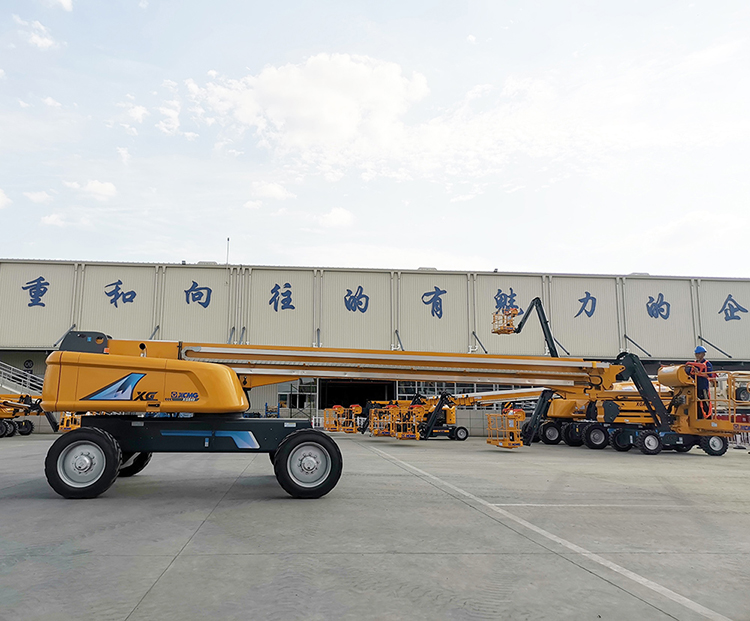

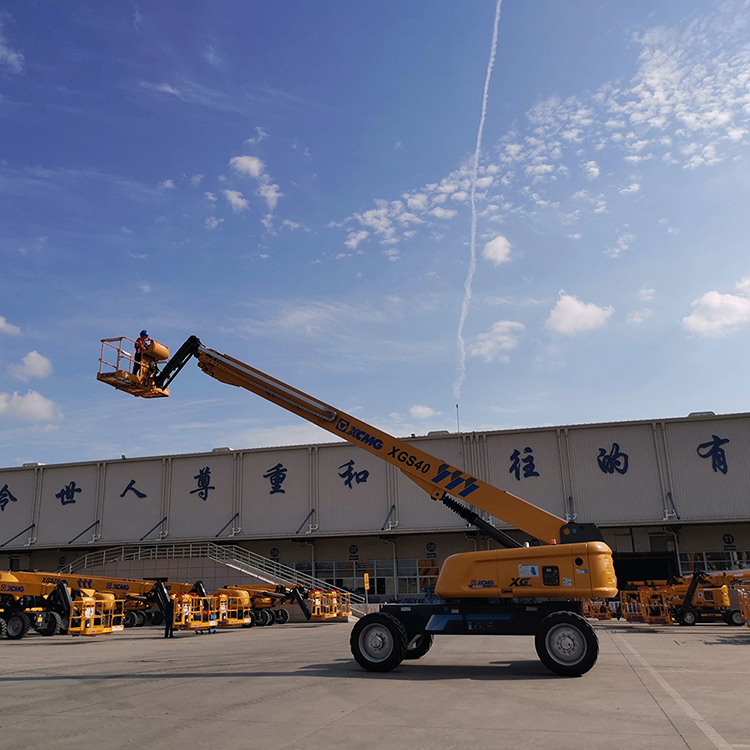

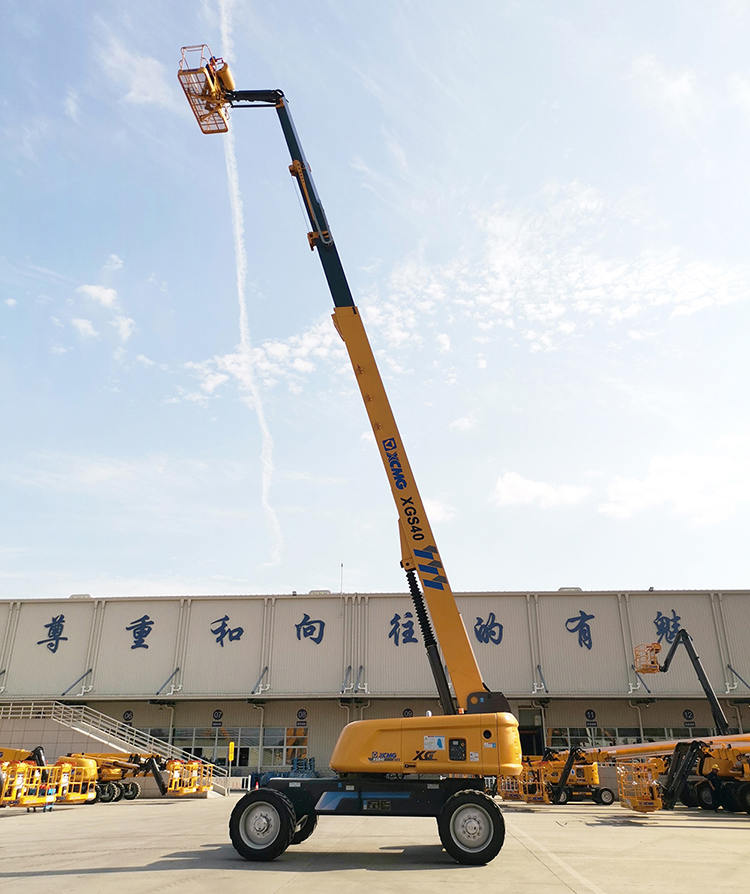

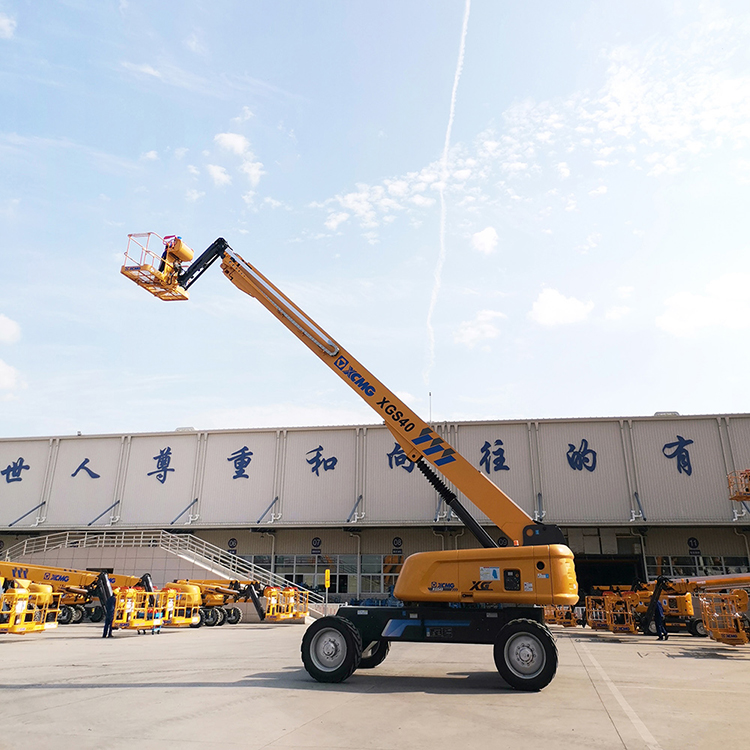

XCMG factory 40m hydraulic telescopic boom lift XGS40
mobile elevated lift.
Telescopic boom
lift XGS40 mobile elevated lift with compact driving size; maximum operation
height 40.2m, maximum carrying capacity 340kg, maximum climbing degree 40%.
Advanced in the
industry, and four-wheel driving; dual operation amplitude curves;
industry-leading operation height, amplitude and carrying capacity; no more
than 3m overall height for easier transferring; the machine is simple,
efficient, safe and reliable, meeting demands of users from building
construction, bridge and equipment maintenance, shipyard and petrochemical
industry and users from rental service.
Advantages and
feature:
1. 2.4m wide
platform, enough for carrying tools and materials.
2. 4WD and
gradeability leading the industry; dual work-amplitude curve; work height and
range.
3. 230kg and 340kg
loading capacity for different working conditions.
4. Short crank
arm, telescopic boom, 1.45m of horizontal extension and 135° of pitch range,
excellent work performance.
5. Electronic-control
four-wheel steering control technologies could carry out the four flexible
steering modes: front/rear-axle independent steering, four-wheel steering, and
crab steering.
6. Axle balance
system enables the vehicle to run on any rough road.
7. Over-wide
off-road foam tires are suitable not just for any soft road, also for others.
|
Item |
Unit |
Parameter |
|
a. Overall length of complete machine |
mm |
14060 |
|
b. Overall width |
mm |
2490/3800 |
|
c. Overall height |
mm |
3000 |
|
d. Wheelbase |
mm |
3800 |
|
Max. working height |
m |
40.2 |
|
Max. platform height |
m |
38.2 |
|
Max. working range |
m |
23.9 |
|
Max. carrying weight |
kg |
230/340 |
|
Luffing range of boom |
° |
-7 ~ +75 |
|
Slewing angle of turntable |
° |
360° |
|
Max. rearward slewing |
mm |
2085/1430 |
|
Platform size |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
20600 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius (With axle
retracted/extended) |
m |
8.2/10.8 (Two-wheel steering) |
|
5.8/6.8 (Four-wheel steering) |
||
|
Min. ground clearance |
mm |
320 |
|
Max. gradeability |
% |
40 |
|
Tire specification |
- |
445/50D710 |
|
Engine model |
- |
Perkins 1104D-44T |
|
Engine rated power |
kW/(r/min) |
55.5/2400 |
