XCMG 34m telescopic boom lift XGS34K China new mobile hydraulic electric boom lift equipment
Summary
- Weight:19300kg
- Overall Dimension:14400*2490*3000mm
- Table Size:3400*900mm
- Max Lifting Height:34.2m
- Rated Loading Capacity:300/460kg
- Power:55kW
- Lift Drive / Actuation:hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS34K
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Certification:CE/ISO9001
Specifications
- Weight:19300.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 34m telescopic boom lift XGS34K China new mobile
hydraulic electric boom lift equipment.

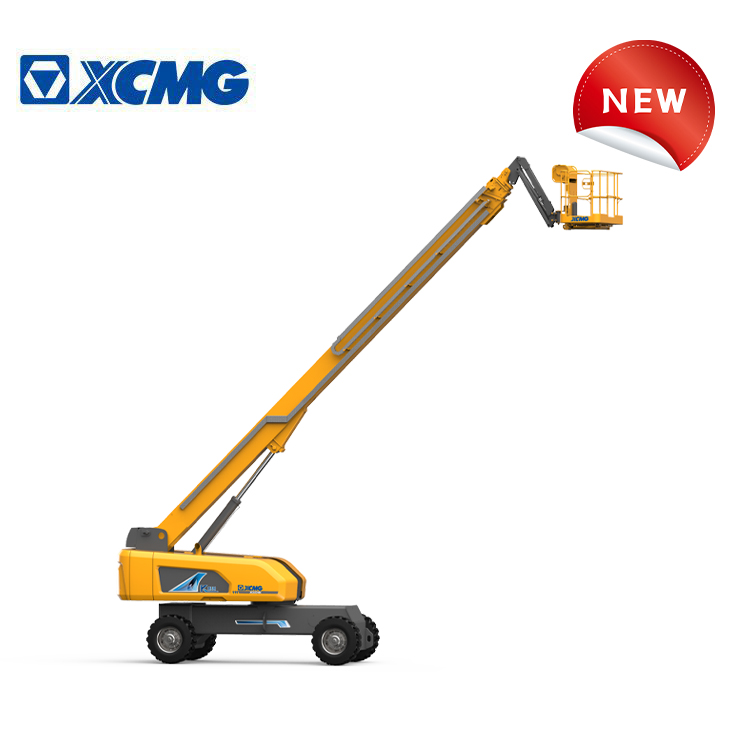

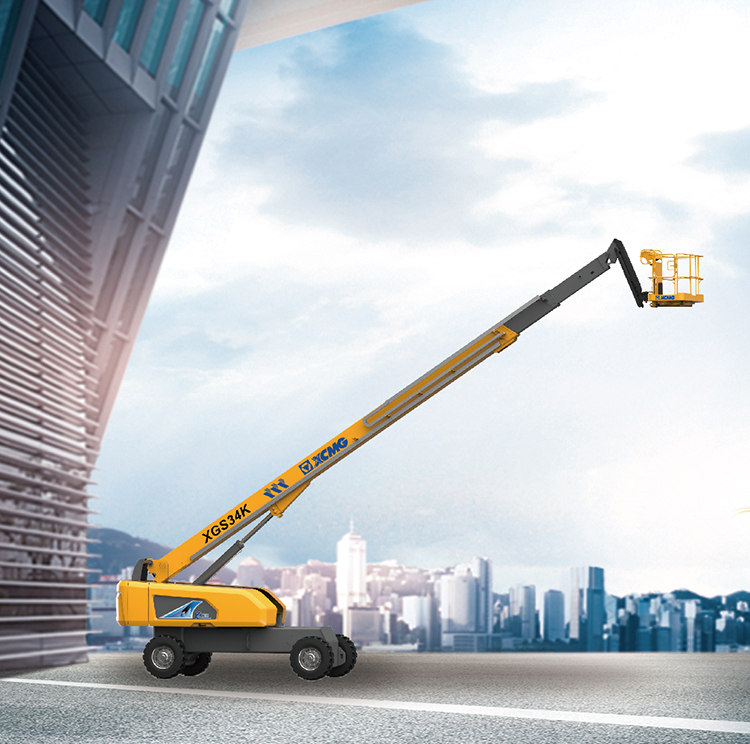

XGS34K is a telescopic mobile elevating platform with a
Max. working height of 34.3m and a Max. load capacity of 460kg. Four-wheel
drive, foam wide tire, Max. gradeability of 45%, which is advanced in this
field.
Adopt 300kg and 460kg load, which is advanced in this
field. Stepless speed regulation is adopted for more comfortable operation. The
height of the whole machine is controlled within 3m for convenient
transportation.
The machine is simple, efficient, safe and reliable,
which can meet the needs of customers in construction, bridge and equipment
maintenance, shipyard, petrochemical industry and leasing industry.
Advantages and features:
1.Load capacity of 300kg and 460kg, meet the demand of
different work conditions.
2.The boom gravity drop technology and load sensitive
systems, more energy efficient.
3.Infinitely adjustable-speed, manipulation of the
comfort is better.
4.Realize the independent front and rear axle steering,
four kinds of steering model, which is flexible.
5.Axle balance control system, which could make the
vehicle traveling on the rough road.
|
Item |
Unit |
Parameters |
|
Overall length |
mm |
14400 |
|
Overall
width |
mm |
2490/3800 |
|
Overall height |
mm |
3000 |
|
Wheelbase |
mm |
3800 |
|
Max. working height |
m |
34.3 |
|
Max.
platform height |
m |
32.3 |
|
Max. working range |
m |
24.7 |
|
Max.
carrying weight |
kg |
300(unlimited)/460(limited) |
|
Boom luffing range |
° |
-6～+75 |
|
Slewing
angle of turntable |
° |
360° |
|
Max. Tail swing |
mm |
2085/1430 |
|
Dimension
of platform |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall
weight |
kg |
19300 |
|
Max. traveling speed |
km/h |
5 |
|
Min.
turning radius |
m |
8.2/10.8(two-turns) 5.8/6.8(four-turns) |
|
Min. ground clearance |
mm |
260 |
|
Max.
gradeability |
% |
45 |
|
Specification of tire |
/ |
385/65D22.5 |
|
Engine
model |
/ |
YC4FA75-T300 |
|
Engine rated power |
kW/(r/min) |
55/(2200) |
