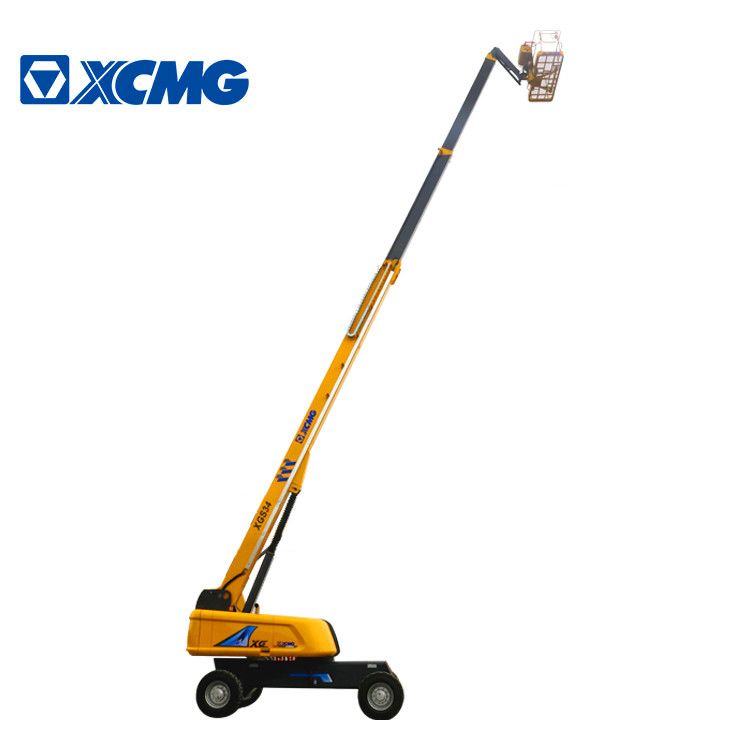

XCMG XGS34 34m mobile telescopic towable boom lift hydraulic price
![](/app/topc/statics/images/close.png)
![XCMG XGS34 34m mobile telescopic towable boom lift hydraulic price](/images/store/357636/item/xgs34 (4).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:18400kg
- Overall Dimension:14300*2490*3070mm
- Table Size:2400*900mm
- Max Lifting Height:34m
- Min Lifting Height:3m
- Rated Loading Capacity:230340kg
- Power:36.8kw
- Lift Mechanism:Telescopic lift
- Model Number:XGS34
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:18400.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG XGS34 34m mobile telescopic towable boom lift
hydraulic.
XGS34 telescopic towable boom lift: electronic control
turning, wide foam tires, excellent climbing driving, adaptive to various
complicated road conditions; dual loading operation curves for real-time
loading control; the widest operation reach of products of the same class; the
machine meets demands of users from building construction, bridge and equipment
maintenance, shipyard and petrochemical industry.
Advantages and features:
1. The widest of the products of the same class, which
improves the operation capacity; Strong driving capacity, grade ability up to
45%.
2. Enabling the machine to incomparably move in any
complicated site.
3. Real-time monitor the load, effectively making use of
boom and making its work performance at leading edge.
4. Specific human-machine interactive system, forming a
perfect safety protection system.
Item |
Unit |
Parameter |
Overall length of complete machine |
mm |
14300 |
Overall width (With shaft retracted/extended) |
mm |
2490/3800 |
Overall height |
mm |
3070 |
Wheelbase |
mm |
3800 |
Max. working height |
m |
34.2 |
Max. platform height |
m |
32.2 |
Max. working range |
m |
24.6 |
Max. load capacity |
kg |
230 (unrestricted)/340 (restricted) |
Luffing range of boom |
° |
-6 ~ +75 |
Slewing angle of turntable |
° |
360° |
Max. rearward slewing (With shaft retracted/extended) |
mm |
2085/1430 |
Dimension of platform |
mm |
2400×900 |
Slewing angle of platform |
° |
160 |
Overall weight |
kg |
18400 |
Max. traveling speed |
km/h |
5 |
Min. turning radius (axle retracted/extended) |
m |
8.2/10.8
(Two-wheel steering) |
Min. ground clearance |
mm |
260 |
Max. gradeability |
% |
45 |
Specification of tire |
- |
385/65D22.5 |
Engine model |
- |
Perkins1104D-44T |
Engine rated power |
kW/(r/min) |
55.5/(2400) |
