XCMG new 28m self propelled telescopic boom lift XGS28 hydraulic boom lift machine price
Summary
- Weight:16600kg
- Overall Dimension:12100*2490*3050mm
- Table Size:2400*900mm
- Max Lifting Height:28.2m
- Rated Loading Capacity:340kg
- Power:53kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescoping Lift
- Model Number:XGS28
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE ISO9001
Specifications
- Weight:16600.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

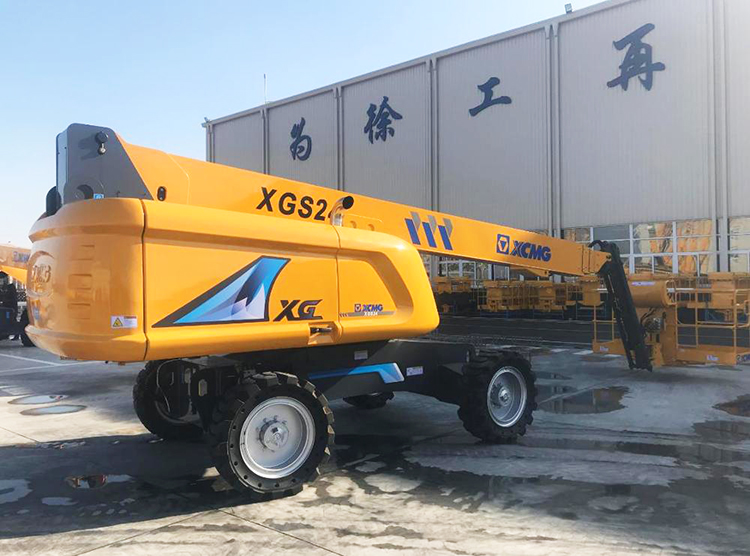

XCMG new 28m self propelled
telescopic boom lift XGS28 hydraulic boom lift machine.
XGS28 self-propelled Telescopic Mobile Elevating Work
Platform developed with Max. working height at 28.2m, max. payload at 340kg,
max. gradeability at 45%; this vehicle is structured as three sections of
telescopic arms and tower arm mechanism, with a small fly jib, featuring wide
work range. Dual payload control system is adopted to adjust the work range
depending on the payload, meeting the different loading requirements and thus
becoming an ideal selection in the construction of building, bridges, steel
structures and stadiums.
Product Highlights:
1. 4m wide platform, enough for carrying tools and
materials. The jib is enable to fly over some obstacles and thus to reach the
inaccessible position.
2. Dual payload control system could adjust the work
range by itself according to the payload, meeting the different loading
requirements.
3. The boom and the upright are luffed and raised at
the same time with one single cylinder, speeding up the approaching of work
area, making the construction more effective, suitable for the relatively low
and narrow site.
4. Maintenance-free shaft bushing and slider could
ease the friction at each articulated point and slider and better the
adaptation to the welding and dusting environments, as well as greatly dropping
the fault ratio and the service life of complete vehicle.
Item | Unit | Parameter |
a. Overall length of complete machine | mm | 12100 |
b. Overall width of complete machine | mm | 2490 |
c. Overall height | mm | 3050 |
d. Wheelbase | mm | 3000 |
Maximum working height | m | 28.2 |
Maximum platform height | m | 26.2 |
Maximum working range | m | 23.2 |
Maximum carrying weight | kg | 230 (unrestricted)/340 (restricted) |
Luffing range of boom | ° | -5~+75 |
Slewing angle of turntable | ° | 360 |
Maximum tail swing | mm | 1500 |
Platform size | mm | 2400×900 |
Slewing angle of platform | ° | 160 |
Overall weight | kg | 16600 |
Maximum traveling speed | km/h | 6.1 |
Minimum turning radius | m | 6.7 |
Minimum ground clearance | mm | 310 |
Maximum gradeability | % | 45 |
Tire specification | - | Foam tire 385/65-22.5 |
Engine model | - | QSF2.8t3TC71 |
Engine rated power | kW/(r/min) | 53/(2200) |
