XCMG official 22m hydraulic towable telescopic boom lift XGS22
Summary
- Weight:12300kg
- Overall Dimension:10040*2490*2460mm
- Table Size:2400*900mm
- Max Lifting Height:22m
- Rated Loading Capacity:300/460kg
- Power:36.8kw
- Lift Mechanism:Telescopic lift
- Model Number:XGS22
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:12300.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

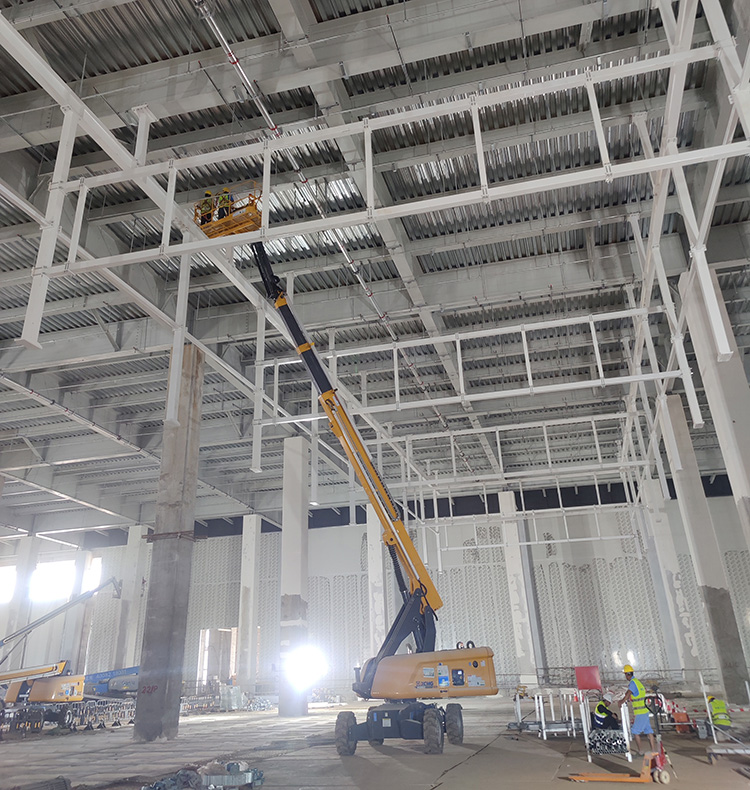

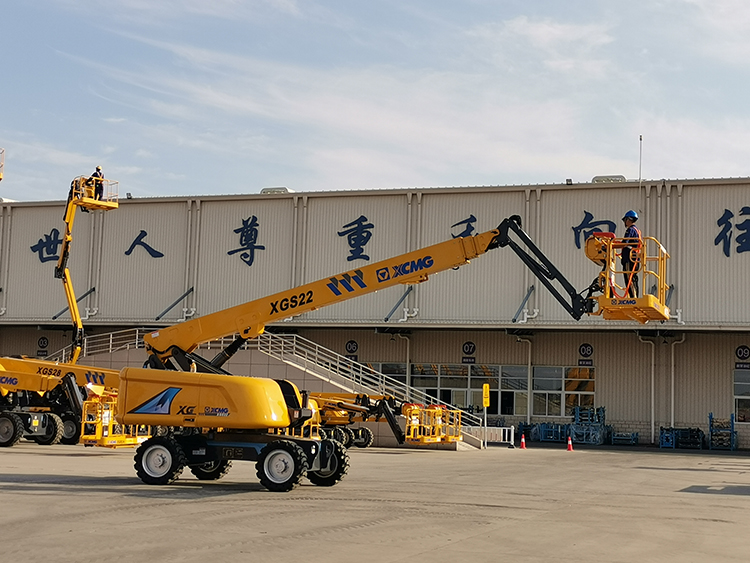

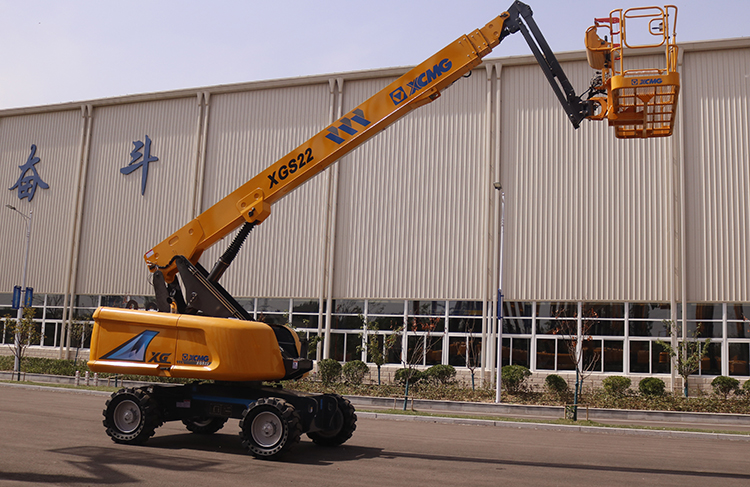

XCMG official 22m hydraulic towable telescopic boom lift
XGS22.
XGS22 towable telescopic boom lift highlights with
outstanding performance, efficiency, dynamics and easy operation. It is leading
in the industry with maximum carrying capacity of 460kg, high operation height
and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
1.Realize the dynamic adjustment of vehicle center of
gravity, making the complete vehicle more stable.
2.The machine is excellent in drive and adaptability to
road.
3.Making use of boom and making its work performance at
leading edge.
4.Improves safety of extending mechanism and extends
service life of steel rope.
5.Implementing the auto leveling, the weighting of
platform payload, the dynamic monitoring and the fault warning.
|
Item |
Unit |
XGS22 |
|
A whole machine
length |
mm |
10040 |
|
B whole machine
width |
mm |
2490 |
|
C whole machine
height |
mm |
2460 |
|
D wheelbase |
mm |
2500 |
|
Max. Operation
height |
m |
22 |
|
Max. Platform
height |
m |
20 |
|
Max. Operation
extend |
m |
16.6 |
|
Max. Load
capacity |
kg |
300/460 |
|
Luffing range of
boom |
° |
-3~+73 |
|
Rotation angle
of turntable |
° |
360 |
|
Max. Tail swing |
mm |
1270 |
|
Platform size |
mm |
2400×900 |
|
Platform
rotation angle |
° |
160 |
|
Whole machine
weight |
kg |
12300 |
|
Max. traveling
speed |
km/h |
6.3 |
|
Min. Turning
radius |
m |
6 |
|
Min. Ground
clearance |
mm |
230 |
|
Max.
gradeability |
% |
45 |
|
Tire
specification |
- |
Solid tire
36×14-20 Or Foam Tire 355/55D625 |
|
Engine model |
- |
Yuchai 4D2404 |
|
Rated engine
power |
kW/(r/min) |
36.8/ (2700) |
