XCMG official 22m hydraulic telescopic boom lift XGS22 aerial mobile elevating work platform price for sale
Summary
- Weight:12300kg
- Overall Dimension:10040*2490*2460mm
- Table Size:2400*900mm
- Max Lifting Height:22m
- Min Lifting Height:2.4m
- Rated Loading Capacity:460kg
- Lift Mechanism:Telescoping Lift
- Model Number:XGS22
- Brand Name:XCMG
- Place of Origin:China
- Certification:ISO
Specifications
- Weight:12300.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

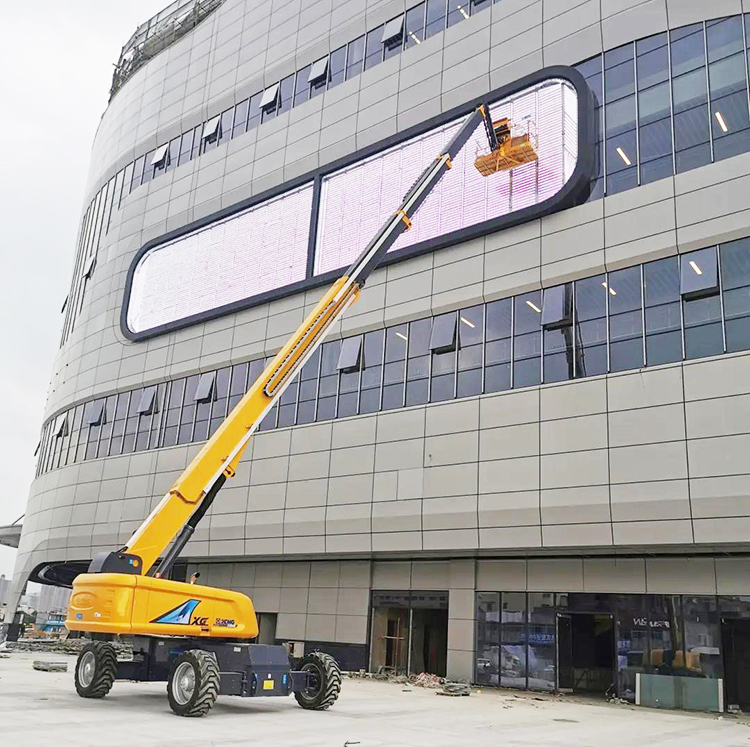

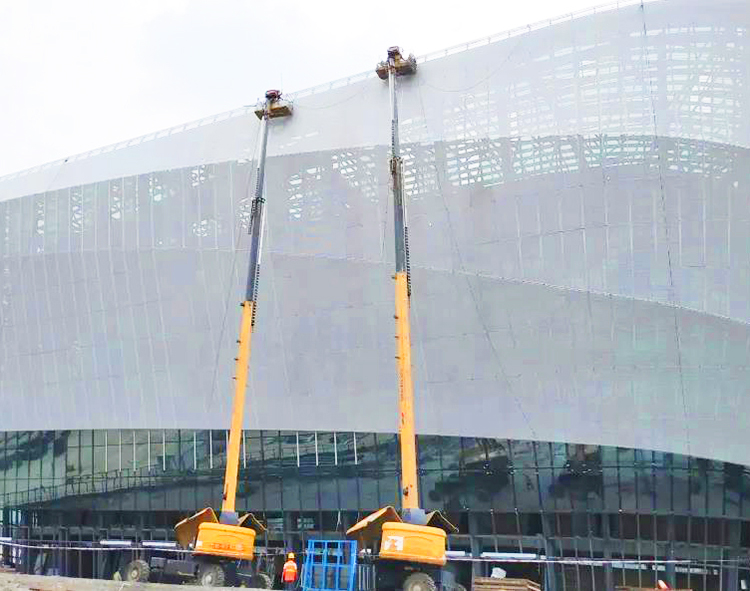

22m mobile hydraulic telescopic boom lift
aerial elevating working platform XGS22.
XGS22 self-propelled Telescopic Mobile Elevating Work
Platform highlights with outstanding performance, efficiency, dynamics and easy
operation. It is leading in the industry with maximum carrying capacity of
460kg, high operation height and amplitude, suit for construction of large load
and wide operation area.
Advantages and features:
* Dual parallel linkage and telescopic arm could realize
the dynamic adjustment of vehicle center of gravity, making the complete
vehicle more stable.
* With 4WD, off-road wide tires and axle balance system,
the machine is excellent in drive and adaptability to road.
* Multi-load envelope control technologies could
real-time monitor the load, effectively making use of boom and making its work
performance at leading edge.
* Auto balance extending mechanism improves safety of
extending mechanism and extends service life of steel rope.
* Electrical control
system adopts the distributed control technologies based on PLC and CAN,
implementing the auto leveling, the weighting of platform payload, the dynamic
monitoring and the fault warning.
|
Item |
Unit |
Parameter |
|
A whole machine length |
mm |
10040 |
|
B whole machine width |
mm |
2490 |
|
C whole machine height |
mm |
2460 |
|
D wheelbase |
mm |
2500 |
|
Max. Operation height |
m |
22 |
|
Max. Platform height |
m |
20 |
|
Max. Operation extend |
m |
16.6 |
|
Max. Load capacity |
kg |
300
(unrestricted)/460 (restricted) |
|
Luffing range of boom |
° |
-3~+73 |
|
Rotation angle of turntable |
° |
360 |
|
Max. Tail swing |
mm |
1270 |
|
Platform size |
mm |
2400×900 |
|
Platform rotation angle |
° |
160 |
|
Whole machine weight |
kg |
12300 |
|
Max. traveling speed |
km/h |
6.3 |
|
Min. Turning radius |
m |
6 |
|
Min. Ground clearance |
mm |
230 |
|
Max. gradeability |
% |
45 |
|
Tire specification |
- |
Solid tire 36×14-20 Or Foam Tire 355/55D625 |
|
Engine model |
- |
Yuchai 4D2404 |
|
Rated engine power |
kW/(r/min) |
36.8/(2700) |
