XCNG Official XGS22 Brand New 22m Self-Propelled Telescopic Boom Lift Working Platform for Sale
![](/app/topc/statics/images/close.png)
![XCNG Official XGS22 Brand New 22m Self-Propelled Telescopic Boom Lift Working Platform for Sale](/images/store/357636/item/XGS22-1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:12300kg
- Overall Dimension:10040*2490*2460mm
- Table Size:2400*900mm
- Max Lifting Height:22m
- Rated Loading Capacity:300 (unrestricted)/460 (restricted)kg
- Power:36.8kw
- Lift Mechanism:Telescoping Lift
- Model Number:XGS22
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:12300.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCNG Official XGS22 Brand New 22m Self-Propelled Telescopic
Boom Lift Working Platform.

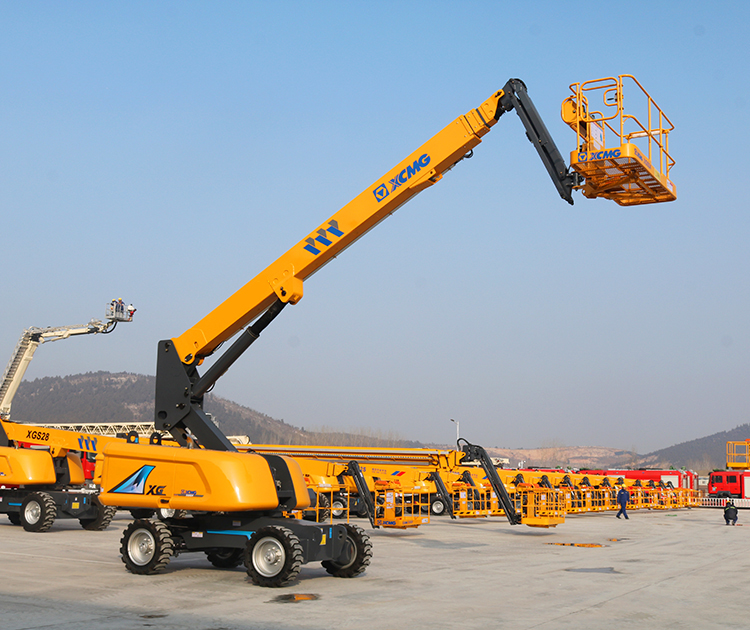

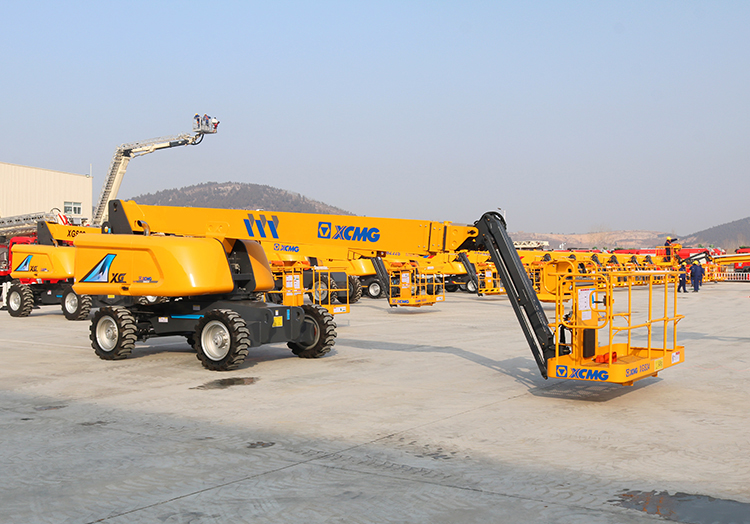

XGS22
self-propelled Telescopic Mobile Elevating Work Platform highlights with
outstanding performance, efficiency, dynamics and easy operation. It is leading
in the industry with maximum carrying capacity of 460kg, high operation height

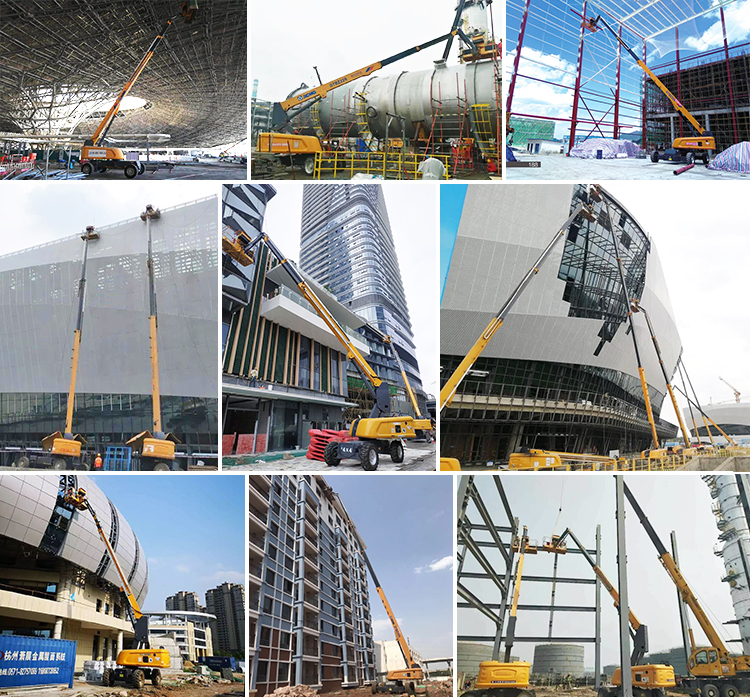

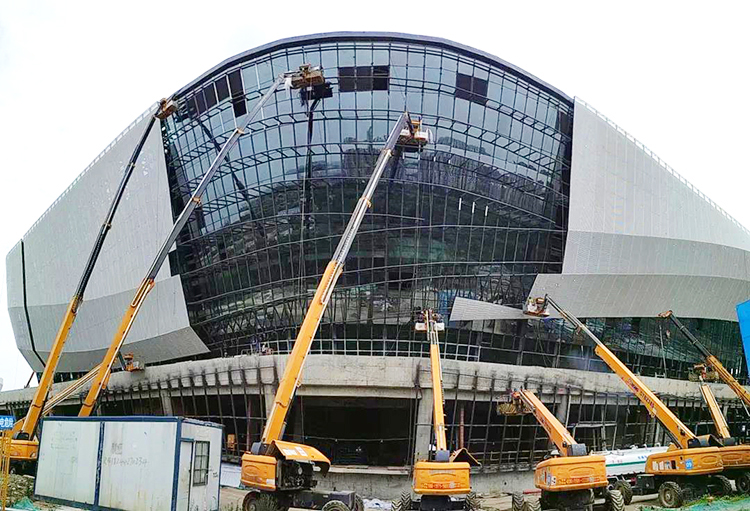

and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
* Dual parallel linkage and telescopic arm could realize the dynamic adjustment
of vehicle center of gravity, making the complete vehicle more stable.
*
With 4WD, off-road wide tires and axle balance system, the machine is excellent
in drive and adaptability to road.
*
Multi-load envelope control technologies could real-time monitor the load,
effectively making use of boom and making its work performance at leading edge.
*
Auto balance extending mechanism improves safety of extending mechanism and
extends service life of steel rope.
*
Electrical control system adopts the distributed control technologies based on
PLC and CAN, implementing the auto leveling, the weighting of platform payload,
the dynamic monitoring and the fault warning.
Item |
Unit |
XGS22 |
A whole machine length |
mm |
10040 |
B whole machine width |
mm |
2490 |
C whole machine height |
mm |
2460 |
D wheelbase |
mm |
2500 |
Max. Operation height |
m |
22 |
Max. Platform height |
m |
20 |
Max. Operation extend |
m |
16.6 |
Max. Load capacity |
kg |
300 (unrestricted)/460 (restricted) |
Luffing range of boom |
° |
-3~+73 |
Rotation angle of turntable |
° |
360 |
Max. Tail swing |
mm |
1270 |
Platform size |
mm |
2400×900 |
Platform rotation angle |
° |
160 |
Whole machine weight |
kg |
12300 |
Max. traveling speed |
km/h |
6.3 |
Min. Turning radius |
m |
6 |
Min. Ground clearance |
mm |
230 |
Max. gradeability |
% |
45 |
Tire specification |
- |
Solid tire 36×14-20 Or Foam Tire 355/55D625 |
Engine model |
- |
Yuchai 4D2404 |
Rated engine power |
kW/(r/min) |
36.8/(2700) |
