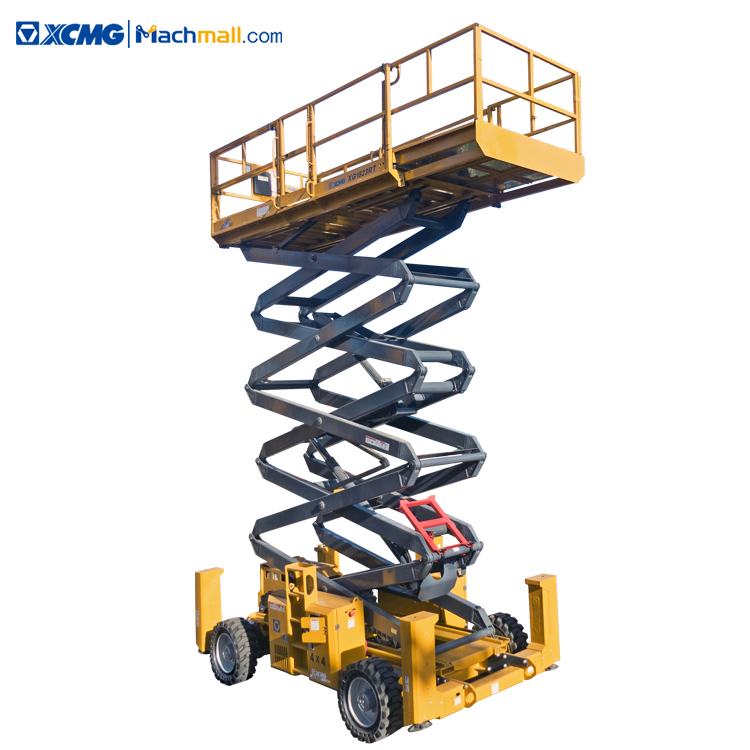

XCMG 18m scissor lift XG1823RT China mobile electric rough terrain scissor lift
Summary
- Weight:8000kg
- Overall Dimension:4.9*2.3*3.2m
- Table Size:3.98*1.83m
- Max Lifting Height:18m
- Rated Loading Capacity:230/680kg
- Power:36kW
- Lift Mechanism:scissor lift
- Model Number:XGS1823RT
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Certification:CE/ISO9001
Specifications
- Weight:8000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
18m scissor lift XG1823RT China mobile electric rough
terrain scissor lift.
XCMG rough terrain scissor lift XG1823RT layout of the
whole machine is compact, which is convenient for transportation, the gravity
of the boom is reduced, and the construction is more energy-efficient and
stable; the vehicle has a strong water passing capacity; standard off-road wide
tires and axle balancing systems are standard for efficient obstacle crossing.
Performance Characteristics:
1. Adopt a more energy-saving and fuel-efficient power
system, and the whole machine is more energy-efficient and fuel-efficient;
2. The working platform can be expanded and contracted,
with larger working space, and more convenient transportation and displacement.
3. Achieve a maximum load of 680kg, reaching the leading
level in the industry.
4. The fastest travel speed is 6.1km/h, with 40% climbing
ability, making driving operations easier.
|
Item |
Unit |
XG1823RT |
|
Overall dimension(L*W*H) |
m |
4.9*2.3*3.2 |
|
Wheelbase |
m |
2.85 |
|
Maximum working height |
m |
18 |
|
Maximum platform height |
m |
16 |
|
Maximum load |
kg |
230/680 |
|
Table size |
m |
3.98*1.83 |
|
Total Weight |
kg |
8000 |
|
Maximum speed |
Km/h |
1.1-6.1 |
|
Minimum ground clearance |
m |
0.23 |
|
Maximum gradeability |
% |
40 |
|
Engine model |
Kubota V2403-M-DI |
|
|
Engine rated power |
kW(r/min) |
36/(2600) |
