XCMG wheel excavator XGE150W China new 15 ton excavator with spreader and Cummins engine price
Summary
- Rated Speed:10-30km/h
- Max Digging Radius:8175mm
- Machine Weight:13500kg
- Maximum Digging Depth:5205mm
- Maximum Digging Height:9015mm
- Bucket Capacity:0.75m3
- Operating Weight:135000kg
- Model Number:XGE150W
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
Specifications
- Weight:13500.000kg
- Condition:New
- Moving Type:Other
- Power:93kW
- Displacement:3.922L
- Overall dimension:7645*2500*3510mm
- Bucket digging force:80KN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

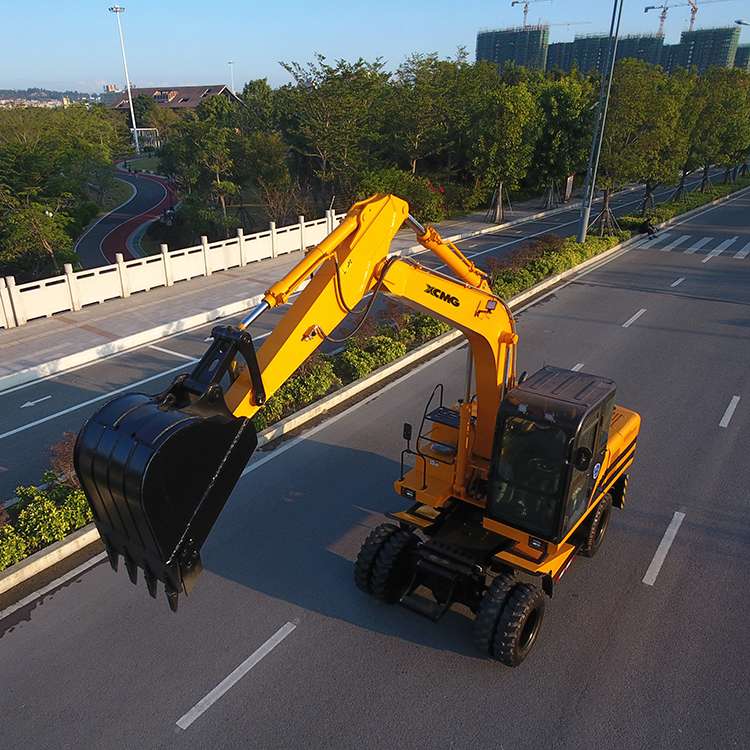

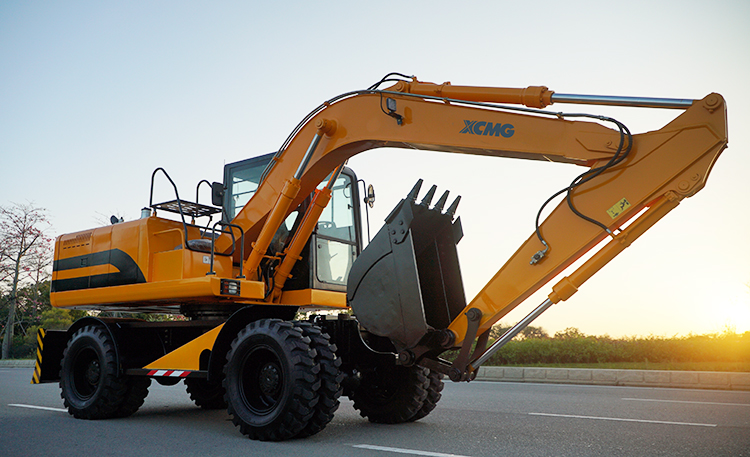

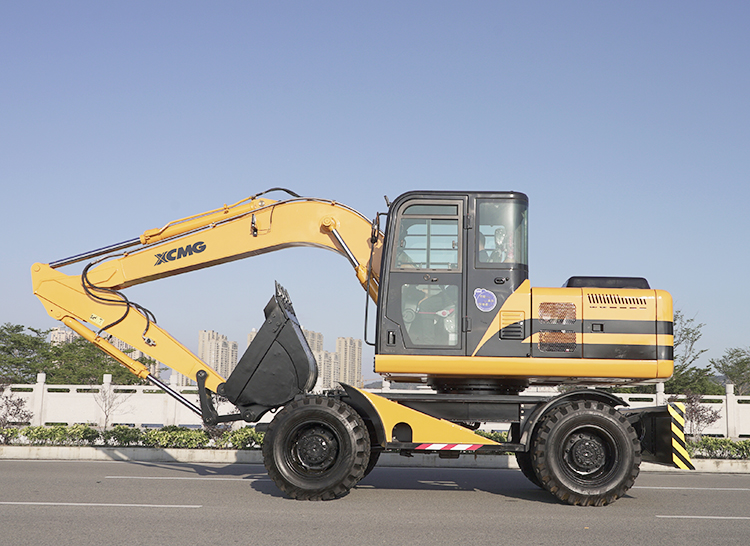

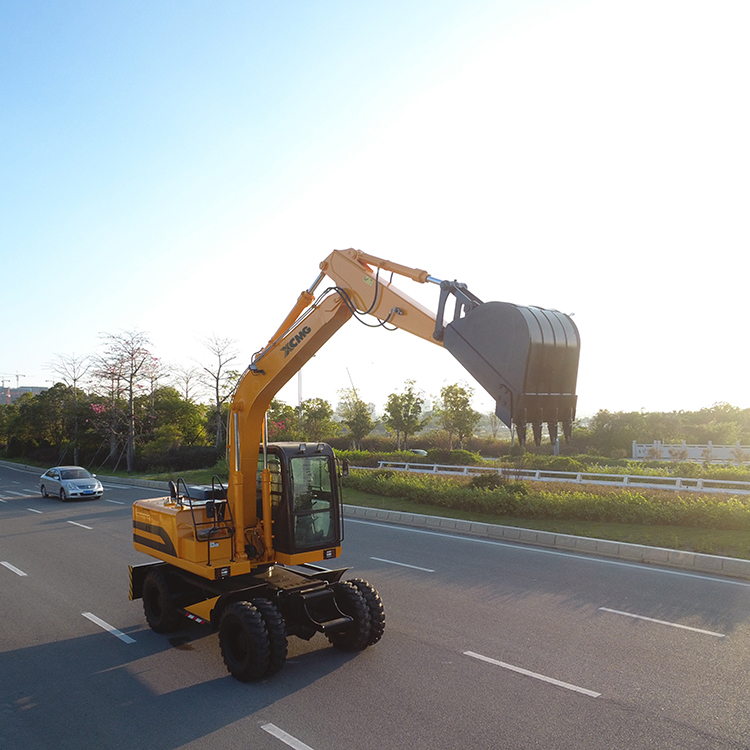

XCMG wheel excavator XGE150W China new 15 ton excavator with spreader and Cummins engine.
HNE150W wheel excavator less vibration and noise, comparing with the same type of excavator in domestic, more comfortable. More powerful, more than 15% torque reserve ratio, meet the requirement of the power to the machine.
1. Adopt Cummins turbocharging diesel engine, strong power, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.
2.Superior economic performance, the minimum fuel consumption at full load is lower.
3.Less vibration and noise, comparing with the same type of excavator in domestic, more comfortable.
4.Reliable and durable, Overhaul time is more than 10.000 working hours in ordinary working condition.
5.Features of high rotate speed, large torque converter, reliable quality.
6.Increase the reliability of the structure.
7.More powerful, meet the requirement of the power to the machine.
|
Working ranges |
|
|
Boom length |
4600mm |
|
Arm length |
3122mm |
|
Max. Digging depth |
5205mm |
|
Max. Digging height |
9015mm |
|
Max. Dumping height |
6380mm |
|
Max.Digging Reach |
8175mm |
|
Max.Digging Reach on the Ground |
7685mm |
|
Performance |
|
|
Operating weight |
13500KG |
|
Engine model |
Cummins QSB3.9-C125 |
|
Engine Rated power |
93KW/2200r/min |
|
Displacement |
3.922L |
|
Fuel Tank Capacity |
200L |
|
Bucket capacity |
0.75m³ |
|
Bucket Radius |
1328mm |
|
Swing speed |
12r/min |
|
Traveling speed |
30Km/h |
|
Bucket digging force |
80KN |
|
Arm crowd force |
65KN |
|
Max. Grade ability |
57% |
|
Ground pressure |
45Kpa |
|
Dimension |
|
|
Overall length |
7645mm |
|
Overall width |
2500mm |
|
Overall height |
3510mm |
|
Min. Ground clearance |
330mm |
|
Wheel base |
2550mm |
|
Tyre Width |
586mm |
