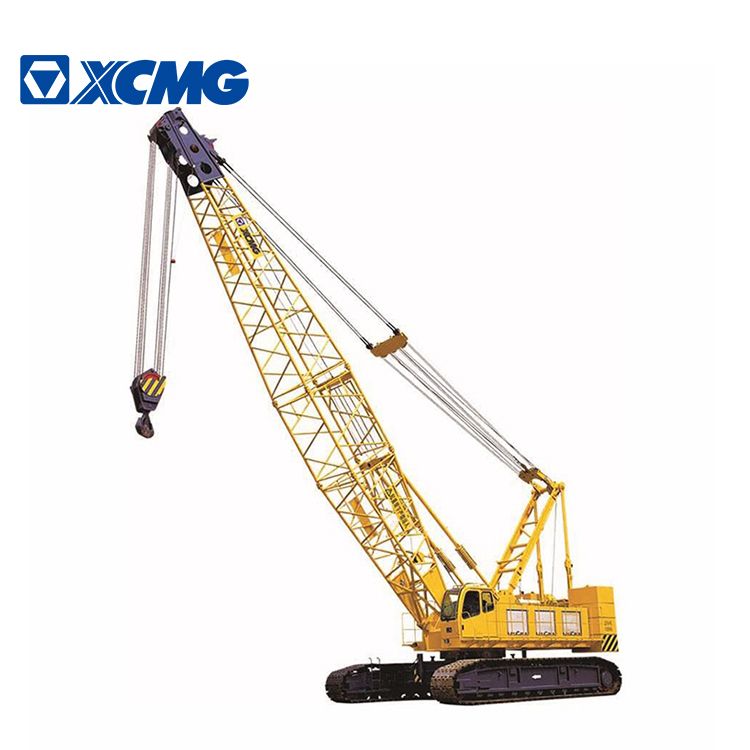

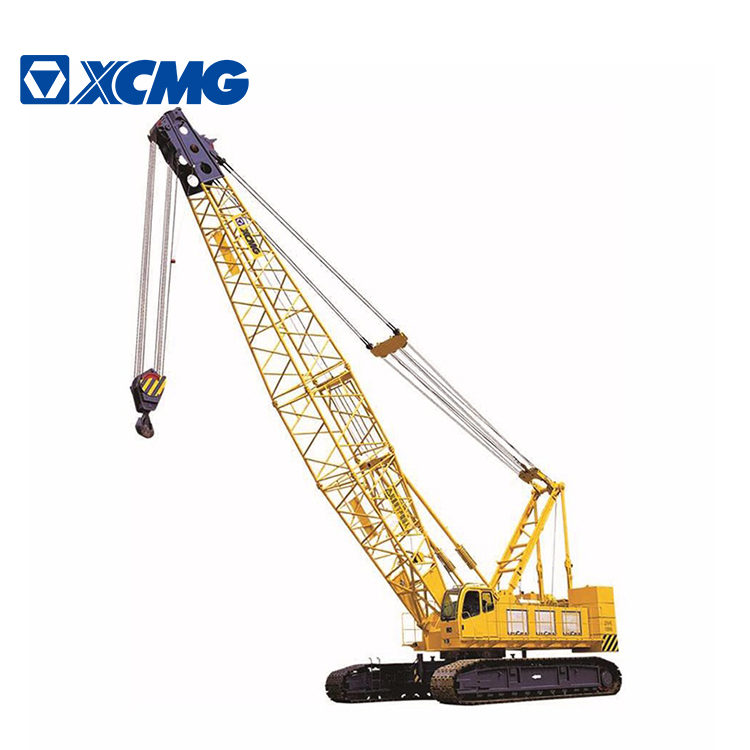

XCMG official 85 ton construction lift machine xcmg crawler crane XGC85 hot sale
.jpg)
Summary
- Model Number:XGC85
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Rated Lifting Moment:341t.m
- Rated Loading Capacity:85t
- Application:construction
- Certification:CE/ISO9001
Specifications
- Weight:71500.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
.png)
XCMG official 85 ton construction lift machine xcmg crawler crane XGC85.
Performance Characteristics:

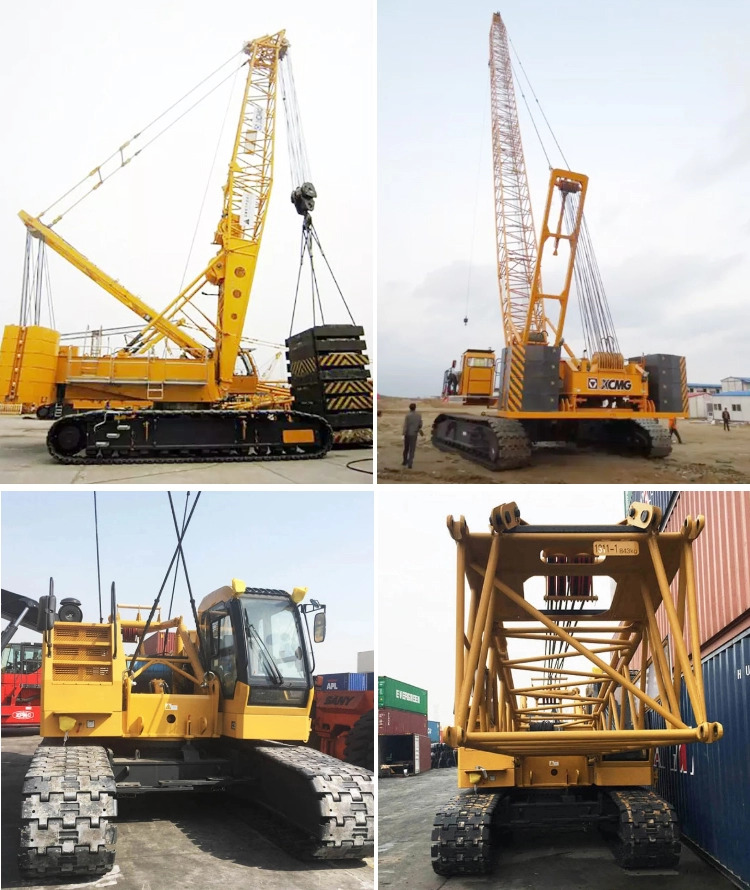

1. Optimized design of transport and assembly/ disassembly
* Basic machine is an integrated transport design, without disassembling track frame and boom base, greatly save transport costs and improve the assembly/disassembly efficiency.
* Unique A-frame gantry self-erection technology, no need of cylinder can achieve self- erection, to realize crane quick assembly.

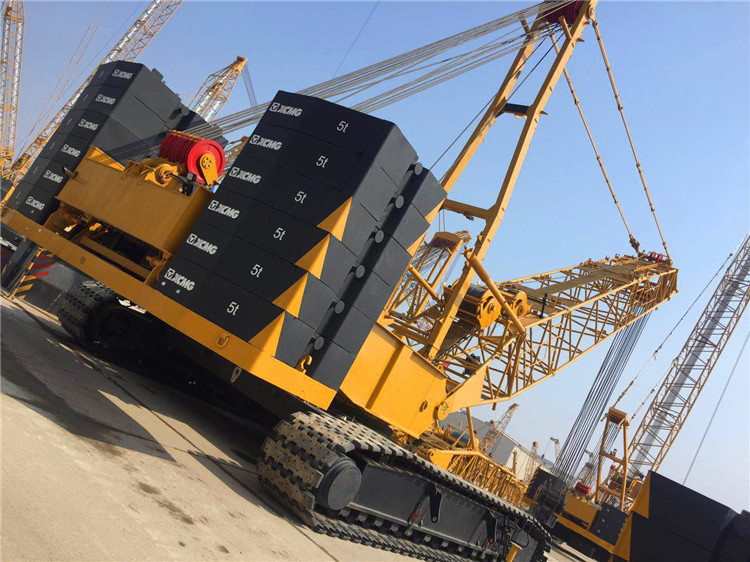

* Single counterweight weighing no more than 4t, small auxiliary lifting equipment can achieve complete counterweight assembly.
2. Optimized hydraulic system design
* Integrated design to reduce failure points, while reserve open space for assembly/ disassembly and maintenance.
* Use of highly integrated LUDV main valve, with the functions of multi-complex operation, control of combined flow, high/low speed selection, to ensure operation efficiency.
* Optional unique independent bypass filtration in the industry, strong magnetic adsorption device, strengthened hydraulic system filtration, and anti-emulsifying ability.
3. Main/ auxiliary hook one-key-switch-over function
* One-key-switch is used to easily achieve main/auxiliary hook switch-over, for wider range of applications.
.jpg)
|
tem |
Unit |
Parameter value |
|
Parameter Item |
- |
XGC85 |
|
Max. rated lifting capacity for boom |
(t) |
85 |
|
Max. rated lifting capacity for fixed jib |
(t) |
12 |
|
Max. load moment |
(t.m) |
341 |
|
Max. rated lifting capacity for boom single top |
(t) |
8 |
|
Boom length |
(m) |
13~58 |
|
Boom luffing angle |
(°) |
-3~80 |
|
Fixed jib length |
(m) |
7~19 |
|
Max. dimension of single unit in transport state(L×W×H) |
(m) |
13.05×3.4×3.3 |
|
Fixed jib offset angle |
(°) |
10,30 |
|
Max. single line speed for hoist mechanism |
(m/min) |
120 |
|
Max. single line speed for boom luffing mechanism |
(m/min) |
70 |
|
Max. slewing speed |
(r/min) |
2 |
|
Max. travel speed |
(km/h) |
0.9 |
|
Grade ability |
(%) |
30 |
|
Mean ground pressure |
(MPa) |
0.087 |
|
Model |
- |
SC9DK270G3/QSC8.3 |
|
Engine power |
(kW) |
200/183 |
|
Emission |
- |
National III/ EU III |
|
Overall crane mass |
(t) |
71.5(main hook,13m boom) |
|
Max. mass of single unit in transport state |
(t) |
41.2 |
