XCMG Official Tipper Truck Dumper Off Road XGA5902D3T New 466HP Dumper Trucks For Sale

View All >

Model： XGA5902D3T

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official Tipper Truck Dumper Off Road XGA5902D3T New 466HP Dumper Trucks For Sale

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XGA5902D3T

Specs & Compare

Details

Specifications

Weight:32000.000kg
Condition:New
Moving Type:Wheel

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

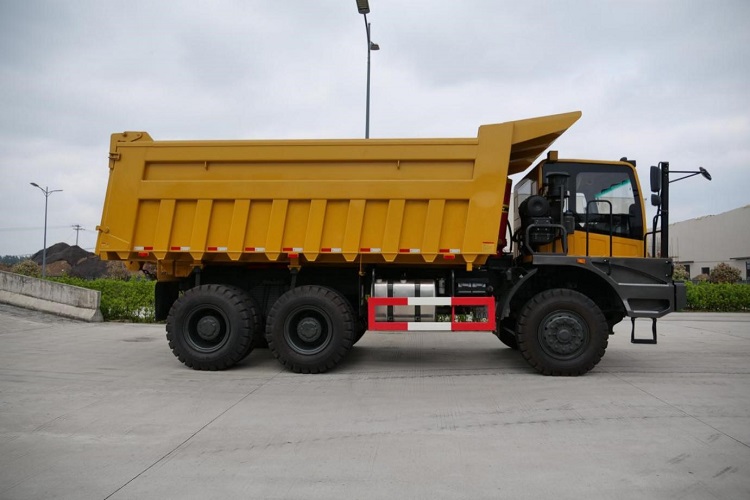

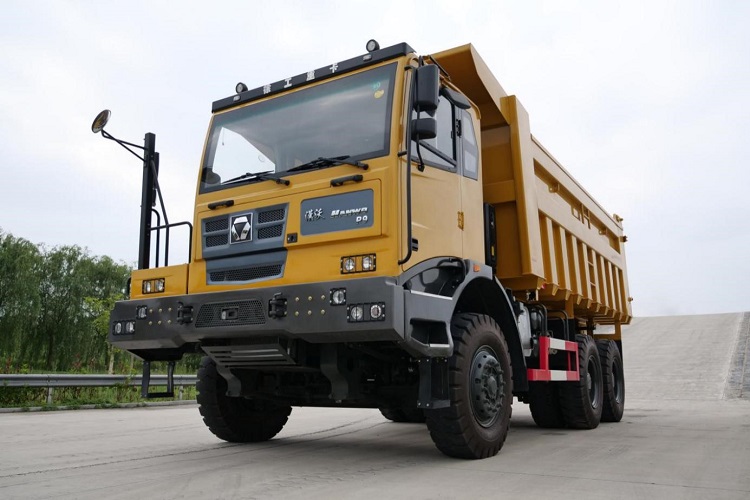

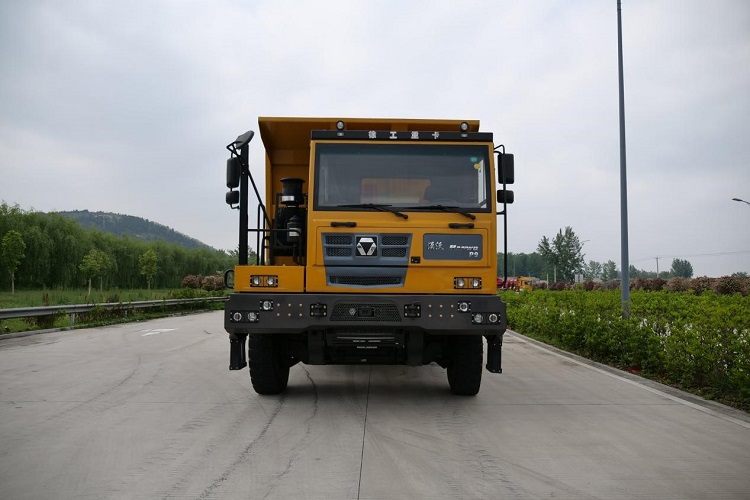

XCMG Official Tipper Truck Dumper Off Road XGA5902D3T New 466HP Dumper Trucks For Sale

XCMG Official Tipper Truck Dumper Off Road XGA5902D3T New 466HP Dumper Trucks.

* According to each of the engine torque characteristic curve, perfectly match the different types of Fast manual gearbox, Allision automatic gearbox, to protect the most energy rationalization output, the vehicle has an excellent starting ability, climbing ability.

* Optimized arrangement of the traditional system architecture, reducing the loss of energy transfer process to ensure the kinetic energy efficient, rapid transmission.

* Using the unique steering and steering follower, the steering mechanism. Steering light, the failure rate lower.

* Dual-circuit brake system equipped with high pressure geography accumulator volume increases, the brake pressure increasing 25% to 1 Mpa, shorten braking distance.

XCMG Official Tipper Truck Dumper Off Road XGA5902D3T New 466HP Dumper Trucks For Sale

	Vehicle model		XGA5902D3T
Mass parameter	Curb weight		32000kg
	GVW		90000kg
Performance	Max. speed		48km/h
	Min. turning diameter		9.9m
	Grade ability		39%
	Fuel tank		500L
Dimensions	Dimensions	Length	9045mm
		Width	3400mm
		Height	3972mm
	Wheelbase		3800+1600mm
	Wheel track	Front tire	2800mm
		Rear tire	2526mm
	Min.clearance		380mm
	Approach angle		36°
	Departure angle		45°
	Front overhang		1755mm
	Rear overhang		1890mm
	Cargo size		6000×3200×1600mm
Cab	Model		K20 HANWO P9 LHD
	Passengers		1
Engine	Model		WP12G460E310
	Displacement		11.596L
	Output power		338kW
	Max. torque speed		2000N·m
Clutch	Model		Φ430 Pull type diaphragm spring clutch
	Operation		Hydraulic manual
Transmission	Model		8DS240A
	PTO		QH70
	Operation		/Flexible shaft
	Forward ratio		8.15/6.01/4.11/3.05/2.12/1.45/1.00/0.76
	Reverse ratio		7.57
Driven axle	Model		35T PENGXIANG
	Main Reducer Ratio		15.66
	Brake type		Drum
	Differential lock		Inter-axle differential lock
Front axle	Model		19T PENGXIANG
	Brake type		Drum
Wheel	Rim		10.00W-24
	Tire		14.00-25NHS
Frame	Model		Box beam
	HxW-t		450mm
	Frame Width		1060mm
Suspension	Front	Type	Leaf spring
		Leaf springs	15
	Rear	Type	Balanced suspension
		Leaf springs	15
Steering	Model		Φ120/ Circulating ball type hydraulic power
	Steering ration		23.04
	Max pressure of pump		17MPa
Brake System	Rated pressure		1MPa
	Service brake system		Dual circuit pneumatic braking
	Parking brake system		Spring energy storage air brake
	Auxiliary braking system		Engine exhaust brake+Retarder
Electrical system	Voltage		24V
	Generator power		2.2Kw
	Battery voltage/capacitance		2×12V/165Ah
