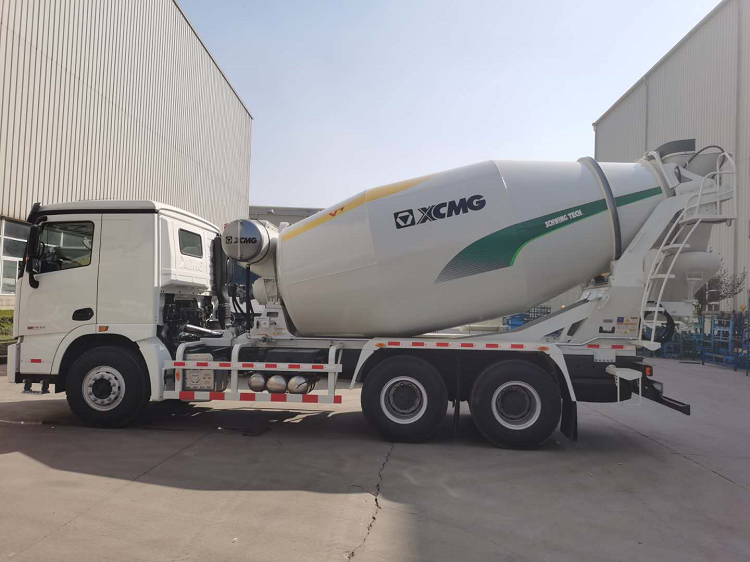

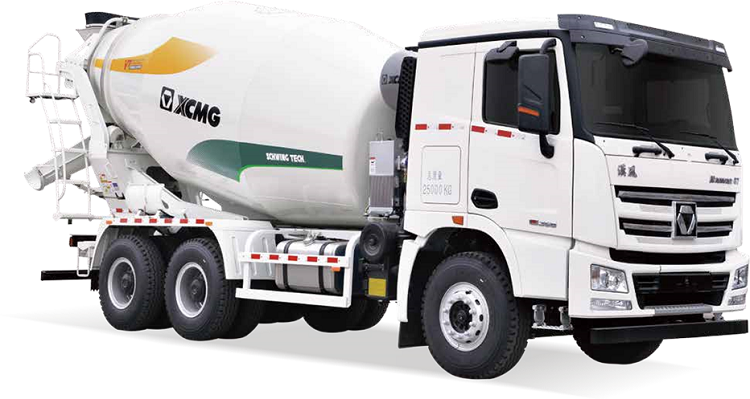

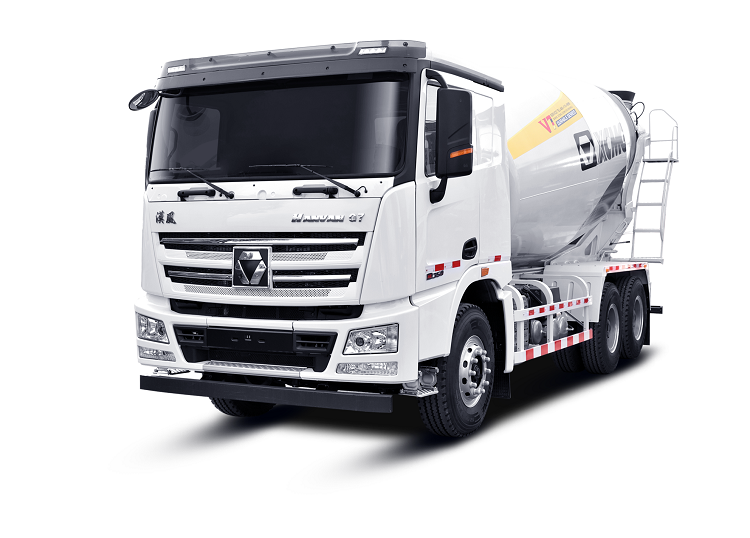

XCMG Official Concrete Truck Mixer XGA5250GJBW3 375HP Self Loading Concrete Mixer Truck for Sale
Summary
- Certification: CE/ISO9001
- Dimension(L*W*H):9965mm*2500mm*3172mm
- Weight:15900KG
- Power(W):276000
- Model Number:XGA5250GJBW3
- Brand Name:XCMG
- Place of Origin:JiangSu, China
Specifications
- Weight:15900.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official Concrete Truck Mixer XGA5250GJBW3 375HP Self Loading Concrete Mixer Truck.
1, On the basis of in-depth and integrative research on the industry, the XCMG new generation truck mixers are system optimized by taking the integrated modularization design to truly realize the integrated innovation.
2,Particular mixing technology with continuous trace, original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging. It can effectively solve the blocking problems in concrete pumps caused by nonuniform concrete.
3, Optimized chassis matches with upper parts and such parts as front base and accessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design.
4, Hydraulic pump, motor and speed reducer of such world-famous brands as ZF, Rexroth, Buonfiglio, PMP, TOP are adopted to make the power more sufficient, system more steady and reliable and service life longer.
|
|
整机型号/Vehicle Model |
XGA5250GJBW3 |
|
|
设计质量参数 /Mass parameter |
整备质量/Curb weight |
15900kg |
|
|
最大允许总质量/GVW |
45000kg |
||
|
性 能 参 数 /Performances |
最高车速/Max Speed |
83km/h |
|
|
最小转弯直径/Min. turning diameter |
20m |
||
|
最大爬坡度/Grade ability |
≥39% |
||
|
最大驻坡度/Hill-hold ability |
≥20% |
||
|
油箱容积/Fuel tank |
400L |
||
|
尺 寸 参 数 /Dimensions |
外形尺寸 /Overall dimensions |
长/Length |
8940(8m³) ；9965（10m³） |
|
宽/Width |
2500mm |
||
|
高/Height |
3172mm(底盘/Chassis） /3951mm(整车/Total） |
||
|
轴距/Wheelbase |
4000+1400mm |
||
|
轮距 Wheel tread |
前轮/Front |
2060mm |
|
|
后轮/Rear |
1860mm |
||
|
最小离地间隙/Min. Clearance |
275mm |
||
|
接近角/Approach angle |
24° |
||
|
离去角/Departure angle |
15° |
||
|
前悬/Front overhang |
1500mm |
||
|
后悬/Rear overhang |
2040（底盘）（Chassis）/3065mm（整车）（Total） |
||
|
货厢尺寸/Container size |
8方(8m³)；10方（10m³） |
||
|
重心高度（空载/满载）/Height of center of gravity (no load / full load) |
1140, 1740mm |
||
|
驾驶室 /Cab |
型号/Model |
G7LM |
|
|
乘员人数/Passengers |
2 |
||
|
发动机 /Engine |
型号/Model |
WP10.375 |
|
|
总排量/Displacement |
9.726L |
||
|
额定功率/Output power |
276kW |
||
|
最大扭矩/Mix torque speed |
1460N·m |
||
|
离合器 /Clutch |
型号/Model |
Φ430 |
|
|
操纵方式/Operation |
液压操纵气助力/Hydraulic manual |
||
|
变速器/Transmission |
型号/Model |
9JSD150T-B |
|
|
操纵方式/Operation |
软轴/Flexible shaft |
||
|
前进档速比/Forward ratio |
12.65-1.00 |
||
|
倒档速比/Reverse ratio |
13.22 |
||
|
驱动桥 /Driven axle |
型号/Model |
16T汉德/HANDE |
|
|
主减速器速比/Ratio |
5.262 |
||
|
制动器类型/Brake type |
鼓式/Drum type |
||
|
差速锁/Differential lock |
轴间、轮间差速锁 /Differential lock between axles and wheels |
||
|
前轴 /Front axle |
型号/Model |
9.5T汉德/ HANDE |
|
|
制动器类型/Brake type |
鼓式/Drum type |
||
|
车轮 /wheel |
轮辋/Rim |
8.50V-20 |
|
|
轮胎/Tire |
12.00R20 18PR |
||
|
车架 /Frame |
型式/Type |
/Straight beam of equal width |
|
|
主纵梁截面/Main beam (mm) |
300×90×8 |
||
|
衬梁截面/Auxiliary beam (mm) |
284×70×8 |
||
|
车架总成宽度 /Width of chassis structure |
865mm |
||
|
悬架 /Suspension |
前/Front |
型式/Type |
纵置多片簧/Multi-spring |
|
钢板弹簧片数 Amount of spring plate |
9 |
||
|
后/Rear |
型式/Type |
纵置多片簧/Multi-spring |
|
|
钢板弹簧片数 Amount of spring plate |
13 |
||
|
转向系 Steering |
转向器型式/型号/Steering type |
Φ120循环球式液压助力 /Φ120 Circulating ball type hydraulic power |
|
|
转向器速比/Ratio |
23.27 |
||
|
转向油泵最大压力/Max pressure of pump |
17MPa |
||
|
制动系 /Brake |
额定工作压力/Rated working pressure |
1MPa |
|
|
行车制动系型式/Driving brake |
双回路气压制动 /Dual circuit pneumatic brake |
||
|
驻车制动系型式/Parking brake |
弹簧储能断气制动 /Spring energy storage air brake |
||
|
辅助制动系型式/Assistant brake |
发动机排气制动/Engine exhaust brake |
||
|
电气系 /Electric System |
电压/Voltage |
24V |
|
|
发电机功率/Generator power |
1.68kw |
||
|
蓄电池电压/电容 /Battery voltage and Capacitance |
2×12V/165Ah |
||
