XCMG Heavy Duty Trucks 78 Ton Truck Tractor Carrier 6*4 430 HP XGA4250D3WC For Laos Prices
Specifications
- Weight:11260.000kg
- Condition:New
- Moving Type:Other
- Driving Type:left
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

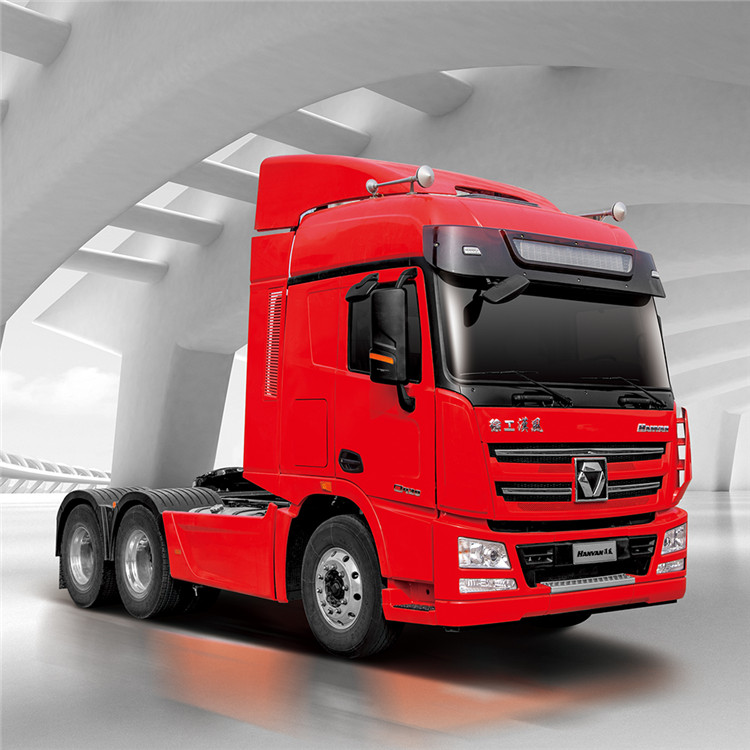

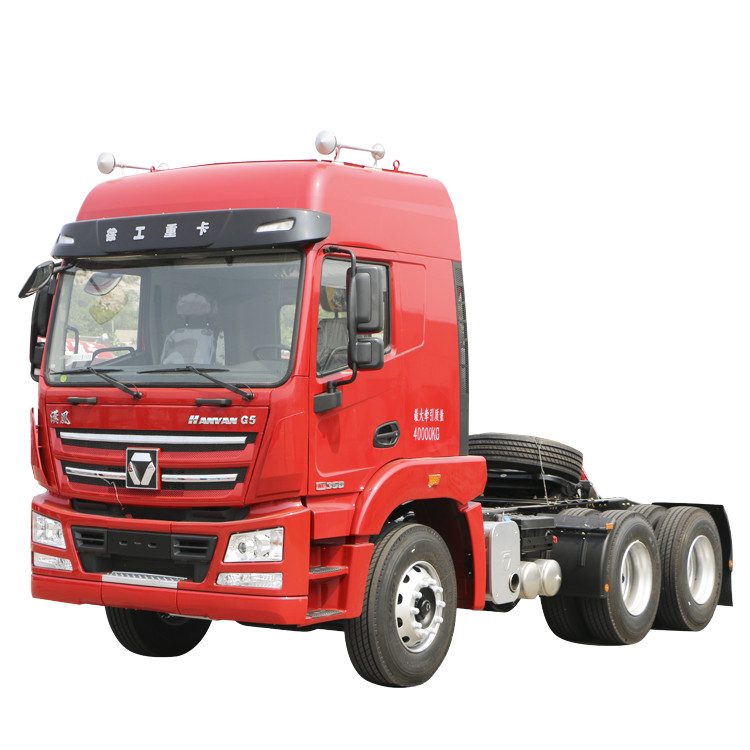

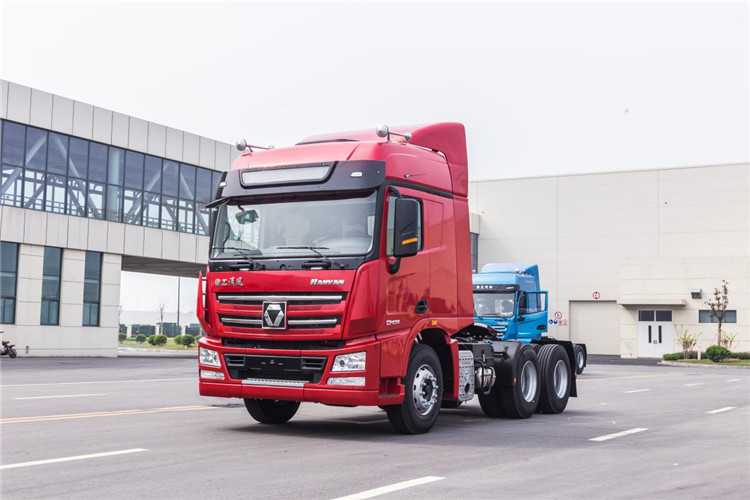

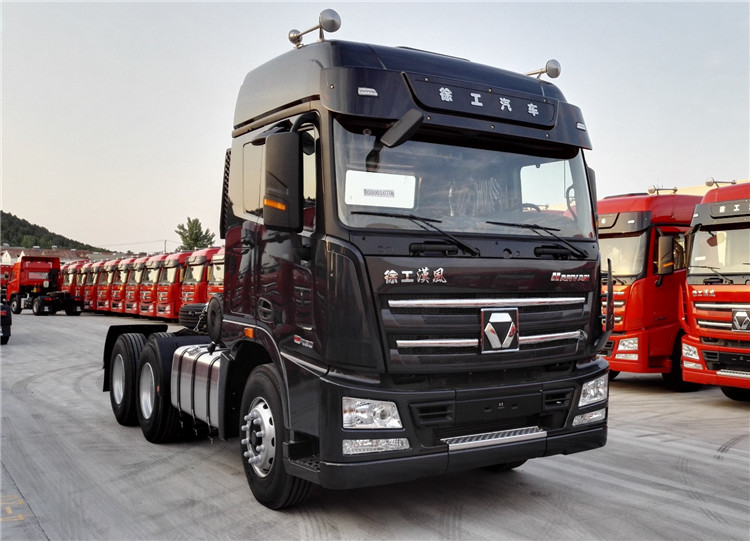

XCMG Heavy Duty Trucks 78 Ton
Truck Tractor Carrier 6*4 430 HP XGA4250D3WC For Laos Prices.
XCMG joint global
advanced technology, widely used in the internationalization of professional
team, 3 years meticulously HANVAN han wind heavy card, accumulative total
examination of more than 200 kilometers, is more reliable and safer, more
comfortable, more economical, more environmental protection of a new generation
of high-end heavy card.
HANVAN han wind heavy vehicle model,
man-machine engineering, fine reached the international advanced level,
environmental protection, reliable safety, durability, maneuverability and
power performance, comfort, function and configuration of domestic lead.
HANVAN han wind tractor is mainly suitable
for long-haul high-speed logistics, the average distance of 300 km/h to 5000
km/h, can be widely used to transport the following goods:
1, daily industrial products: cold chain,
valuables, tobacco, express delivery.
2, daily industrial products: food, fruit,
wood, stores, department stores, container, bulk.
3, iron powder, steel, iron powder, iron
ore, finished product profile.
4, bulk tank: cement, lime, fly ash and
other industrial powder.
5, dangerous goods: oil, natural gas,
chemical liquid.
6, ballast, sand, sand and gravel.
| Vehicle model | XGA4250D3WC | ||
| Mass parameter | Curb weight | 11260kg | |
| GCW | 120000(With trailerkg | ||
| Traction mass | 78610kg | ||
| Performances | Max Speed | 65kmh | |
| Min. turning diameter | 17m | ||
| ()Grade ability() | 20% | ||
| ()Hill-hold ability() | 20% | ||
| Fuel Tank | 600L | ||
| Dimensions | Overall dimensions | Length | 6810mm |
| Width | 2550mm | ||
| Height | 3605mm | ||
| Wheelbase | 3200+1400mm | ||
| Wheel track | Front tire | 2060mm | |
| Rear tire | 1860mm | ||
| Min.Clearance | 280mm | ||
| Approach angle | 18 | ||
| Departure angle | 46 | ||
| Front overhang | 1500mm | ||
| Rear overhang | 710mm | ||
| Cab | Model | G7LH | |
| Passengers | 23 | ||
| Engine | Model | SC12E430Q3B | |
| Displacement | 11.8L | ||
| Output power | 316kW | ||
| Max torque speed | 2100Nm | ||
| Clutch | Model | 430 Pull type diaphragm spring clutch | |
| Operation | Hydraulic manual | ||
| Transmission | Model | 12JSD180T | |
| Operation | Flexible shaft | ||
| Forward ratio | 15.5312.089.397.335.734.463.482.712.11.641.281 | ||
| Reverse ratio | 14.863.33 | ||
| Driven axle | Model | 16T Benz axle | |
| Ratio | 5.92 | ||
| Brake type | Drum type | ||
| Differential lock | Differential lock between axles and wheels | ||
| Front axle | Capacity | 7.5T Benz axle | |
| Brake type | Drum type | ||
| Wheel | Rim | 8.50V-20 | |
| Tire | 12.00R20-18PR | ||
| Frame | Type | 865 | |
| Main beam | 300808mm | ||
| Auxiliary beam | 284708mm | ||
| Width of chassis structure | 865mm | ||
| Suspension | Front | Type | Multi-spring |
| Amount of spring plate | 9 | ||
| Rear | Type | Multi-spring | |
| Amount of spring plate | 12 | ||
| Steering System | Steering type | 120 Circulating ball type hydraulic power | |
| Ratio | 23.27 | ||
| Max pressure of pump | 15MPa | ||
| Brake System | Rated working pressure | 1MPa | |
| Driving brake | Dual circuit pneumatic braking | ||
| Parking brake | Spring energy storage air brake | ||
| Assistant brake | Engine exhaust brake | ||
| Electric System | Voltage | 28V | |
| Generator power | 2kw | ||
| Battery voltage and capacitance | 212V165Ah | ||
