XCMG Band 50 Ton New Tractor Trucks 6*4 371hp Trailer Truck Tractor XGA4250D2WC For Sale
Specifications
- Weight:9319.000kg
- Condition:New
- Moving Type:Other
- Driving Type:right
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

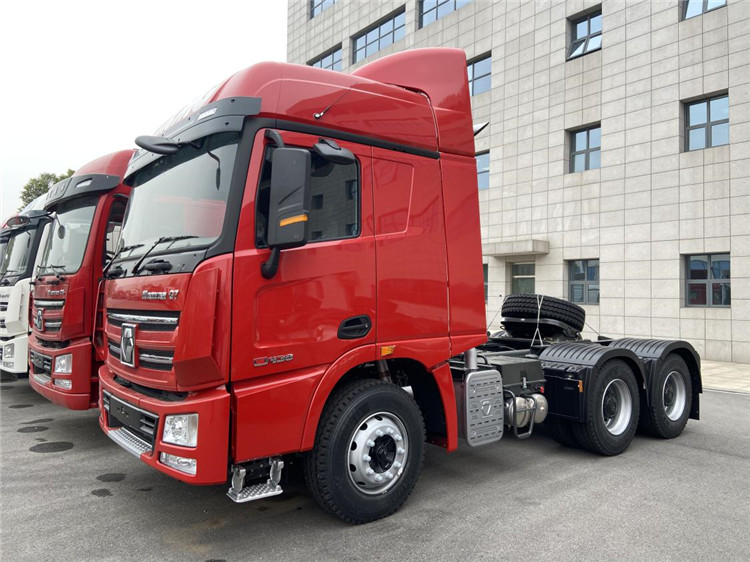

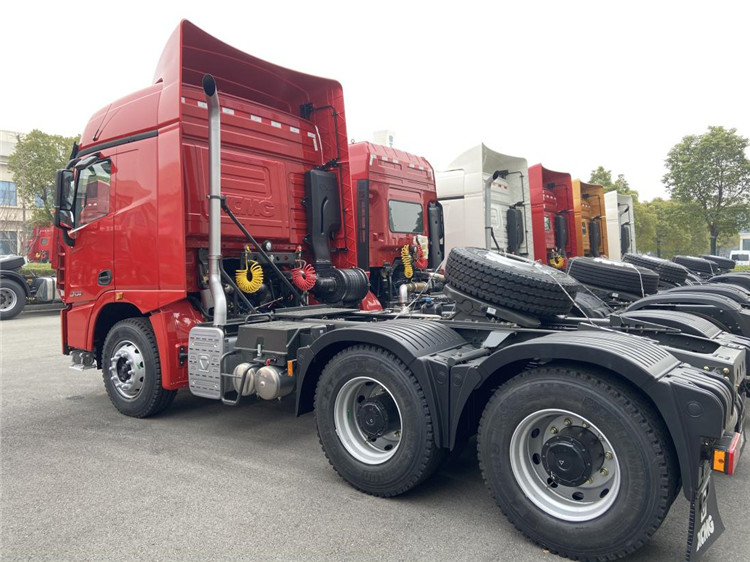

XCMG Band 50 Ton New Tractor
Trucks 6*4 371hp Trailer Truck Tractor XGA4250D2WC For Sale.
XCMG
joint global advanced technology, widely used in the internationalization of
professional team, 3 years meticulously HANVAN han wind heavy card,
accumulative total examination of more than 200 kilometers, is more reliable
and safer, more comfortable, more economical, more environmental protection of
a new generation of high-end heavy card.
HANVAN
han wind heavy vehicle model, man-machine engineering, fine reached the
international advanced level, environmental protection, reliable safety,
durability, maneuverability and power performance, comfort, function and
configuration of domestic lead.
HANVAN
han wind tractor is mainly suitable for long-haul high-speed logistics, the
average distance of 300 km/h to 5000 km/h, can be widely used to transport the
following goods:
1,
daily industrial products: cold chain, valuables, tobacco, express delivery.
2,
daily industrial products: food, fruit, wood, stores, department stores,
container, bulk.
3,
iron powder, steel, iron powder, iron ore, finished product profile.
4,
bulk tank: cement, lime, fly ash and other industrial powder.
5,
dangerous goods: oil, natural gas, chemical liquid.
6,
ballast, sand, sand and gravel.
|
Vehicle model |
XGA4250D2WC |
||
|
Mass parameter |
Curb weight |
9319kg |
|
|
GCW |
60000(Trailer）kg |
||
|
Traction mass |
50670kg |
||
|
Performances |
Max Speed |
83km/h |
|
|
Min. turning diameter |
14m |
||
|
Grade ability |
≥25% |
||
|
Hill-hold ability |
≥20% |
||
|
Fuel Tank |
600L |
||
|
Dimensions |
Overall dimensions |
Length |
6810mm |
|
Width |
2500mm |
||
|
Height |
3075mm |
||
|
Wheelbase |
3200+1400mm |
||
|
Wheel tread |
Front |
2060mm |
|
|
Rear |
1865mm |
||
|
Min. Clearance |
250mm |
||
|
Approach angle |
18° |
||
|
Departure angle |
52° |
||
|
Front overhang |
1500mm |
||
|
Rear overhang |
710mm |
||
|

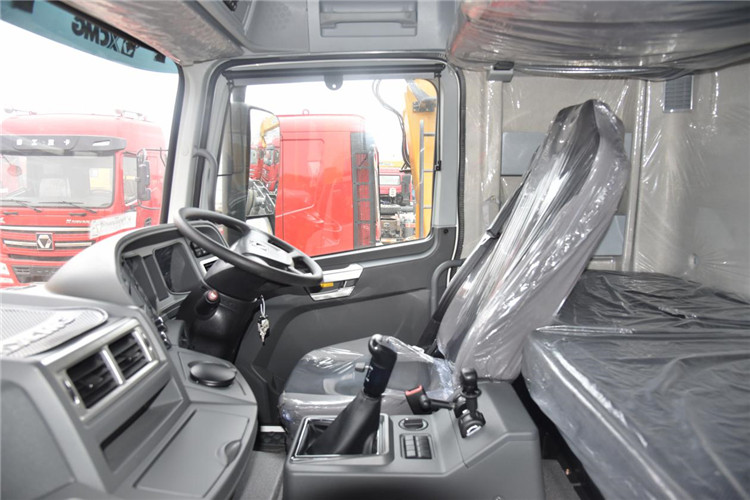

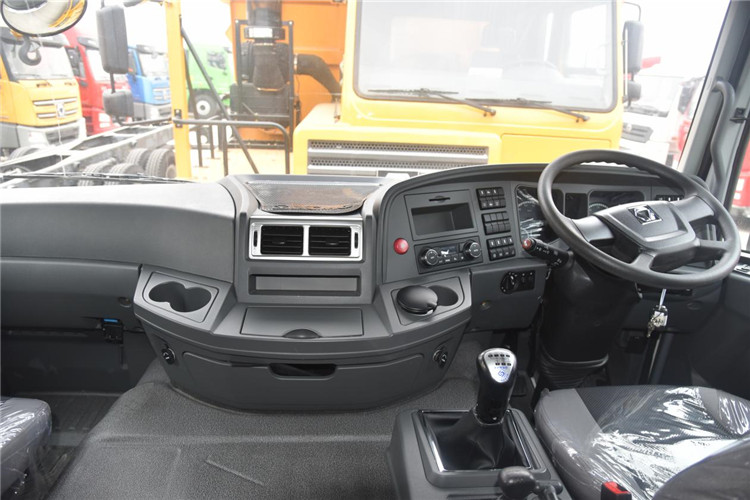

Cab |
Model |
G7LMR |
|
|
Passengers |
2 |
||
|
Engine |
Model |
WD615.47 |
|
|
Displacement |
9.726L |
||
|
Output power |
273kW |
||
|
Max torque speed |
1460N·m |
||
|
Clutch |
Model |
Φ430 Pull type
diaphragm spring clutch |
|
|
Operation |
Hydraulic manual |
||
|
Transmission |
Model |
12JSD160T（PTO Optional ） |
|
|
Manipulation |
Hard shaft |
||
|
Forward ratio |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1 |
||
|
Reverse ratio |
14.86/3.33 |
||
|
Driven axle |
Model |
457 |
|
|
Ratio |
4.444 |
||
|
Brake type |
Drum type |
||
|
Differential lock |
Differential
lock between axles and wheels |
||
|
Front axle |
Model |
7.5T |
|
|
Brake type |
Drum type |
||
|
Tire |
Rim |
22.5×9.00/22.5×9.00 |
|
|
Tire |
315/80R22.5-18PR/12R22.5 |
||
|
Frame |
Type |
865 Equal width
straight beam |
|
|
Main beam |
300×80×8mm |
||
|
Auxiliary beam |
284×70×8mm |
||
|
Width of chassis structure |
865mm |
||
|
Suspension |
Front |
Type |
Multi-spring |
|
Amount of spring plate |
9 |
||
|
Rear |
Type |
Multi-spring |
|
|
Amount of spring plate |
12 |
||
|
Steering |
Steering type |
Φ120 Circulating
ball type hydraulic power |
|
|
Ratio |
23.27 |
||
|
Max pressure of pump |
15MPa |
||
|
Brake |
Rated working pressure |
1MPa |
|
|
Driving brake |
Dual circuit
pneumatic braking |
||
|
Parking brake |
Spring energy
storage air brake |
||
|
Assistant brake |
Engine exhaust
brake |
||
|
Electric System |
Voltage |
24V |
|
|
Generator power |
2.2kw |
||
|
Battery voltage and capacitance |
2×12V/165Ah |
||
