XCMG Official 40 Ton Dump Truck 371HP Dumper Truck 6*4 Rc Dump Truck For Sale
Specifications
- Weight:15620.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

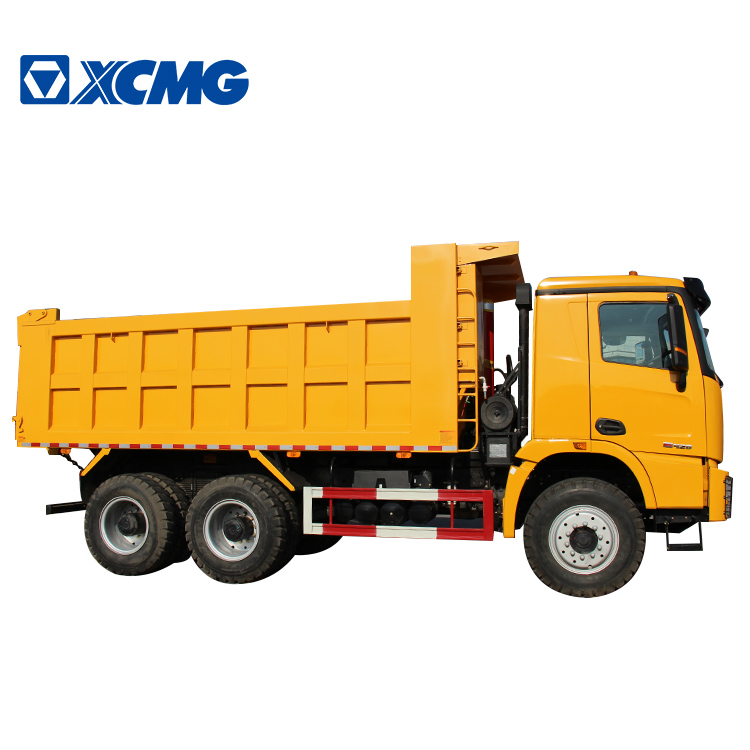

XCMG Official XGA3250D2WC Tipper Truck Dumper 20 Cubic
Meters 6*4 China Tipper Trucks.
Qilong
T-series dump truck is designed for sand, stone, ore, ore powder, iron powder,
construction slag and other different loads. Based on the construction site and
urban road driving, it has a series of products of heavy load type, composite
type and urban construction slag type.This kind of product is characterized by
strong power and efficient transportation, and has passed thousands of
industrial verification experiment.After three years of practice and
improvement, the power system, steering system and braking system have been
comprehensively optimized and improved, which is more suitable for all kinds of
heavy loads and complex working conditions.It has the obvious advantages of
high bearing capacity, high reliability, high safety and high economy.
Advantages and Highlights:
Comfortable
Driving, Pleasant Enjoyment
*
Symmetrical, refined, excellent and ergonomic design, facilitates your driving
operation; covering fttings adopt leather package, strong light absorption, no
high-light points, reduce visual fatigue.
*
Multi-functional configuration, large storage space; strictly control the gap
and chromatism, meticulous work; silkstocking airbag seats.
Maximum Supporting capacity and practicability:
*
Golden power assembly-For the economic and reliabilit, reliable brands engine,
Fast gearbox, Steyr axles are adopted for our manufacturing. The range of power
output are from 280hp to 420hp to achieve multi-working-condition.
*
Modular designed chassis, neat arrangement highly universalizable. Meanwhile,
the reliability and convenience of maintenance have been improved.
*
HANVAN is the industry leader of Chinese heavy- -duty truck market, we provide
standard model, composite model, heavy model, super -duty model for your
personal needs.
* The key part have
been optimized by CAE and passed relative quality test, the reliability of
vehicle can be guaranteed.
Dimensions(mm) |
Overall size (length×width×height) |
8638×2500×3307 |
Cargobody size (length×width×height) |
5800×2300×1300 |
|
Wheelbase |
3800+1400 |
|
Wheel tread (Front/Rear) |
2060/1860 |
|
Min. ground clearance |
281mm |
|
Weight(kg) |
Kerb mass |
15620kg |
Gross vehicle weight |
55620kg |
|
Rated loading capacity |
40000kg |
|
Performance |
Max. travel speed |
79km/h |
Min. turning diameter |
17m |
|
Max. gradeability(%) |
20% |
|
Approach angle |
23° |
|
Departure angle |
25° |
|
Engine |
Brand |
SINOTRUK engine |
WD615.47, water-cooling, turbocharging and
intercooling, Euro emission standard, direct injection diesel |
||
Rated output at 2,200rpm |
HP(371kw) |
|
Max. torque at 1400r/pm |
1460N.m |
|
Transmission |
Brand |
FAST |
Type |
9JSD150A |
|
Wheels rim& Tyres |
Rims |
8.50V-20 |
Tyres |
12.00R20 |
|
Electric System |
Negative grounded |
|
Operating voltage |
24V |
|
Alternator |
70A/28V |
|
Batteries |
6-QAW-165 |
|
Fuel tank |
Capacity |
400L |
