XCMG XGA26 Brand New 26m Aerial Articulating Arm Boom Platform for Sale
Summary
- Weight:17800kg
- Overall Dimension:11280*2490*3000mm
- Table Size:2400*900mm
- Max Lifting Height:26.38m
- Rated Loading Capacity:230kg
- Power:53KW
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Articulated Lift
- Model Number:XGA26
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:17800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

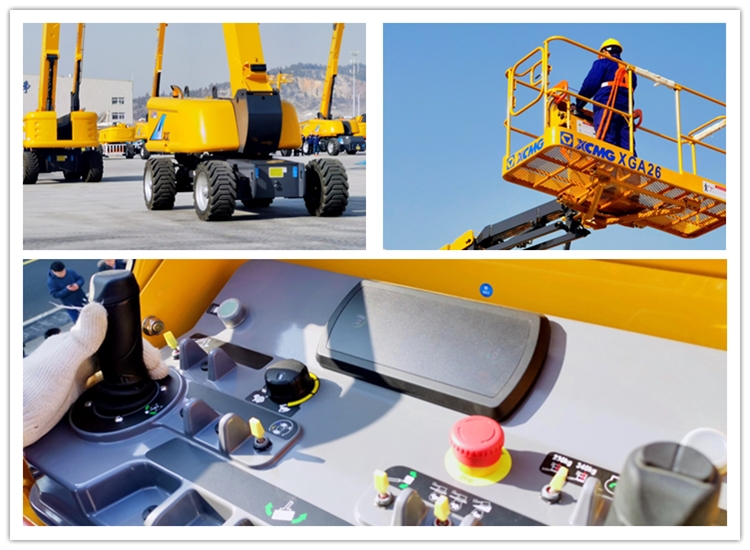

XCMG XGA26 Brand New 26m Aerial Articulating Arm Boom
Platform.
XGA26
articulated mobile elevating work platform reaches as high as 26.38m operation
height. It is outstanding in terms of extending and operation range and
efficient operation efficiency. The initial energy saving system according to
power improves fuel efficiency to the maximum extend.
It
features advanced performance, precise control, safe and reliable operation,
meeting demands from building construction, bridge and equipment maintenance,
shipyard and petrochemical industry and users from rental service.
Advantages and highlights:
*
Maximum working range 9m to reach operation area at different directions
* This vehicle is equipped with No. 1, No. 2 booms and a full section of
articulated boom, available to implement all-directional aerial work through
the elevating, telescopic and slewing control, and thus making the machine more
flexible.
* Flexible 4WD multi-mode steering system and the leading grade
* The customized valve control system and all accurately controlled motions
effectively improve the motion smoothness
* The flow anti-saturation design is applied to provide efficient and stable
composite motion experiences.
* Initial power self-matching system could save the energy, dropping the
comprehensive fuel consumption under each work condition by 30% or higher.
|
Item |
Unit |
XGA26 |
|
a. Overall length of complete
machine |
mm |
11280 |
|
b. Overall width of complete
machine |
mm |
2490 |
|
c. Overall height |
mm |
3000 |
|
d. Wheelbase |
mm |
3000 |
|
Max. working height |
m |
26.38 |
|
Max. platform height |
m |
24.38 |
|
Max. working range |
m |
18.9 |
|
Max. carrying weight |
kg |
230 |
|
Scope of luffing of No. 1 arm |
° |
-1 ~ +70 |
|
Scope of luffing of No. 2 arm |
° |
-35 ~ +68 |
|
Slewing angle of turntable |
° |
360° |
|
Max. Tail swing |
mm |
1330 (boom lifting) |
|
Dimension of platform |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
17800 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius |
m |
4.2m(Four-wheel steering) /
6.7m(Two-wheel steering) |
|
Min. ground clearance |
mm |
260 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
- |
18-625 |
|
Engine model |
- |
Cummins QSF2.8 71BHP |
|
Engine rated power |
kW/(r/min) |
53/(2200) |
