XCMG official manufacturer 26m hydraulic aerial work platform XGA26 articulated boom lift price
Summary
- Weight:17800kg
- Overall Dimension:11280*2490*3000mm
- Table Size:2400*900mm
- Max Lifting Height:26.38m
- Min Lifting Height:3m
- Rated Loading Capacity:230kg
- Power:53kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Articulated Lift
- Model Number:XGA26
- Brand Name:XCMG
- Place of Origin:China
- Certification:ISO
Specifications
- Weight:17801.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
26m hydraulic aerial work platform articulated boom lift
XGA26.

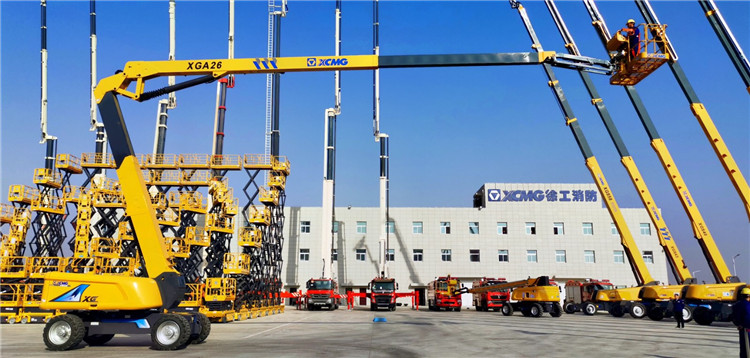

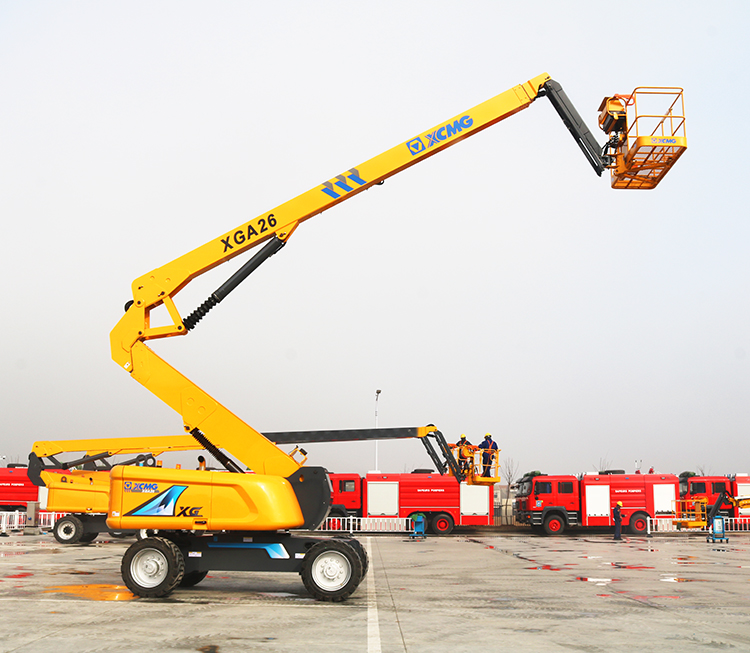

XGA26 articulated mobile elevating work platform reaches
as high as 26.38m operation height. It is outstanding in terms of extending and
operation range and efficient operation efficiency. The initial energy saving
system according to power improves fuel efficiency to the maximum extend. It
features advanced performance, precise control, safe and reliable operation,

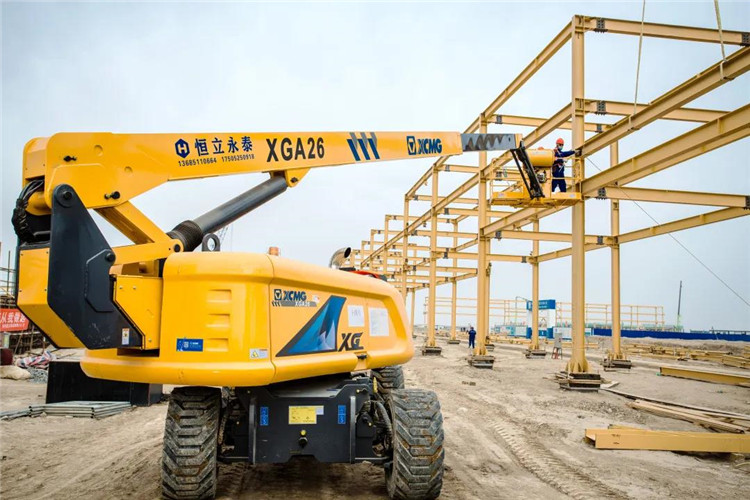

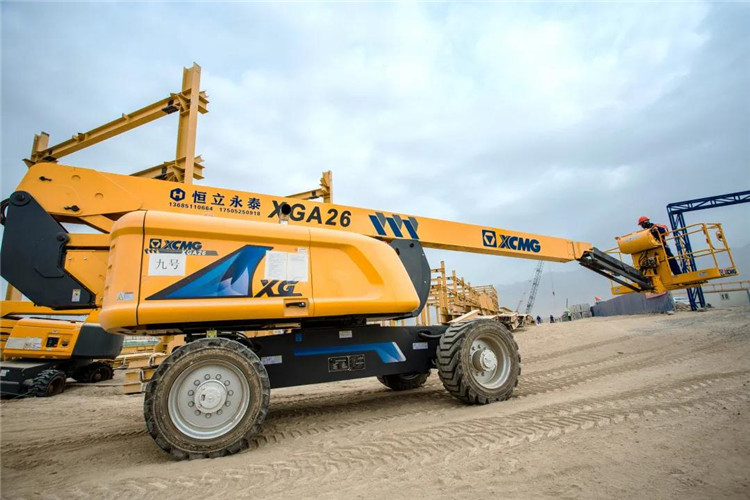

meeting demands from building construction, bridge and equipment maintenance,
shipyard and petrochemical industry and users from rental service.
Advantages and highlights:
* Maximum working range 9m to reach operation area at
different directions.

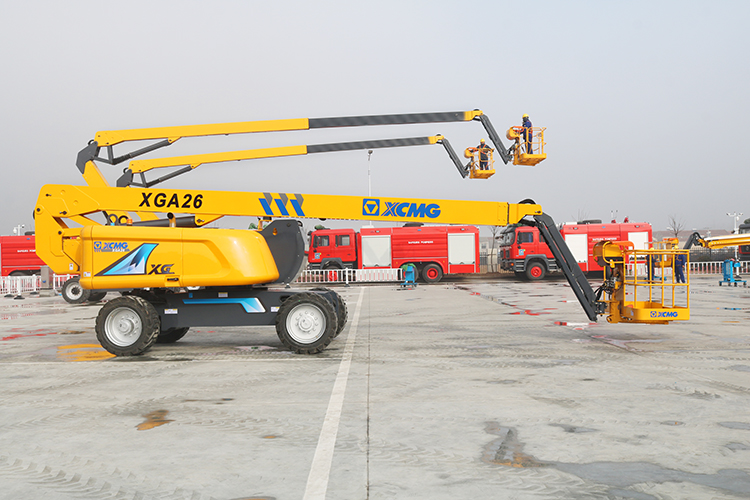

* This vehicle is equipped with No. 1, No. 2 booms and a
full section of articulated boom, available to implement all-directional aerial
work through the elevating, telescopic and slewing control, and thus making the
machine more flexible.
* Flexible 4WD multi-mode steering system and the leading
grade.

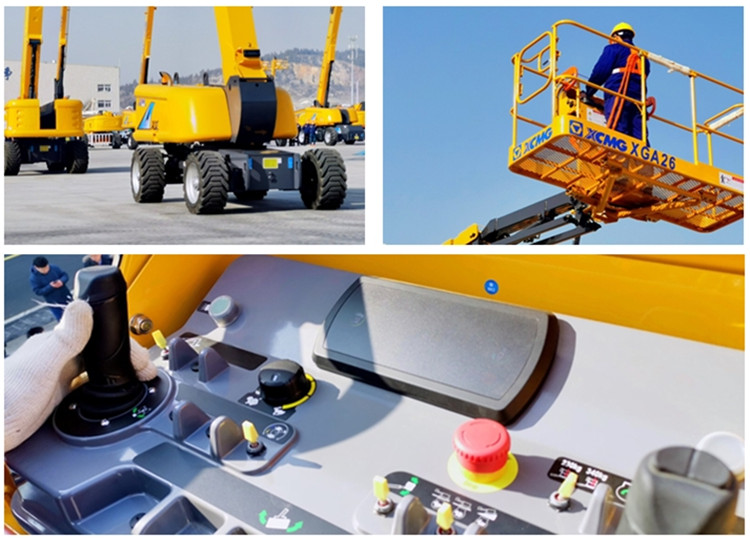

* The customized valve control system and all accurately
controlled motions effectively improve the motion smoothness.
* The flow anti-saturation design is applied to provide
efficient and stable composite motion experiences.
* Initial power self-matching system could save the
energy, dropping the comprehensive fuel consumption under each work condition
by 30% or higher.
|
Item |
Unit |
Parameter |
|
a. Overall length of complete machine |
mm |
11280 |
|
b. Overall width of complete machine |
mm |
2490 |
|
c. Overall height |
mm |
3000 |
|
d. Wheelbase |
mm |
3000 |
|
Max. working height |
m |
26.38 |
|
Max. platform height |
m |
24.38 |
|
Max. working range |
m |
18.9 |
|
Max. carrying weight |
kg |
230 |
|
Scope of luffing of No. 1 arm |
° |
-1 ~ +70 |
|
Scope of luffing of No. 2 arm |
° |
-35 ~ +68 |
|
Slewing angle of turntable |
° |
360° |
|
Max. Tail swing |
mm |
1330 (boom
lifting) |
|
Dimension of platform |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
17800 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius |
m |
4.2m(Four-wheel steering) / 6.7m(Two-wheel steering) |
|
Min. ground clearance |
mm |
260 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
- |
18-625 |
|
Engine model |
- |
Cummins QSF2.8 71BHP |
|
Engine rated power |
kW/(r/min) |
53/(2200) |
