XCMG self propelled 20m XGA20 aerial articulated work platform for sale
Summary
- Weight:10600kg
- Overall Dimension:9080*2490*2680mm
- Table Size:1830*760*1150mm
- Max Lifting Height:20.4m
- Min Lifting Height:2.7m
- Rated Loading Capacity:230kg
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Articulated Lift
- Model Number:XGA20
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:10600.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

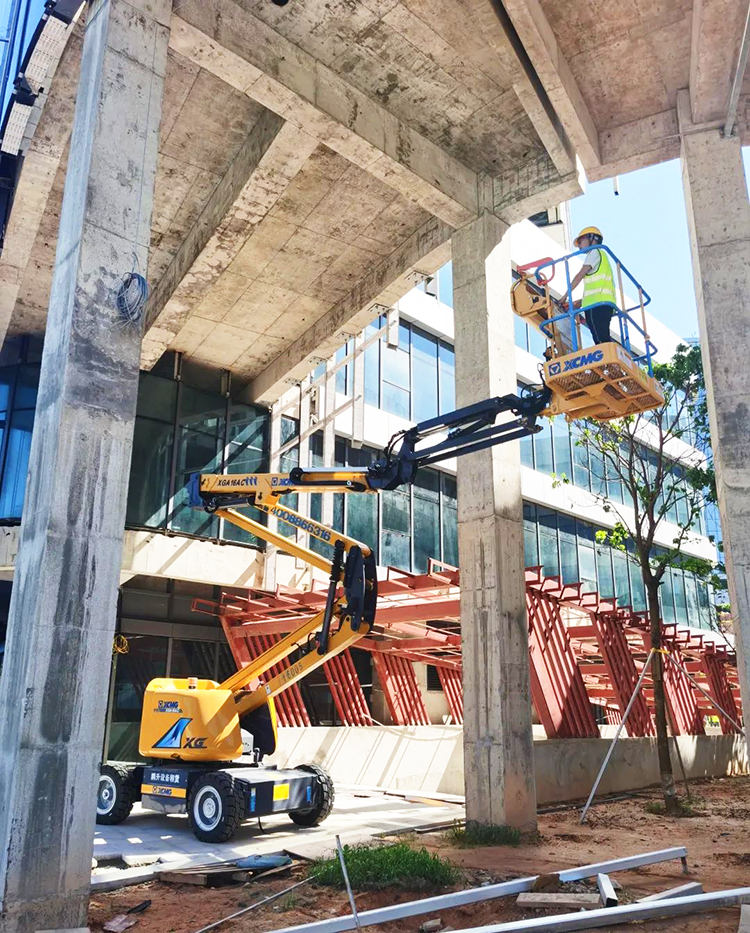

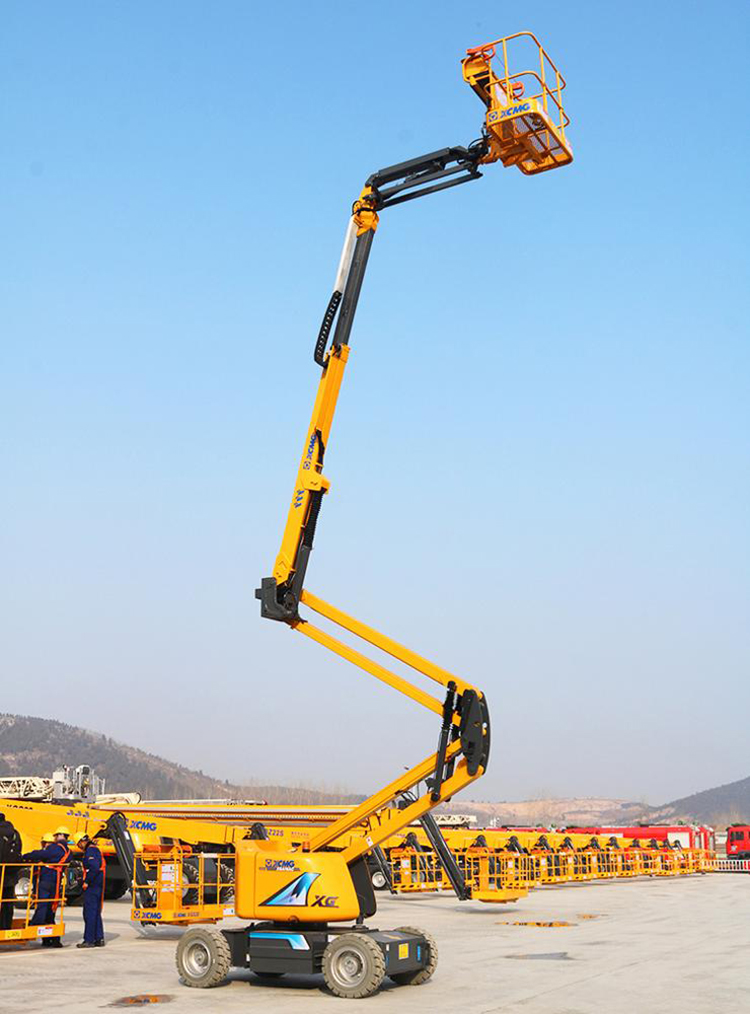

XCMG self propelled 20m XGA20 aerial articulated work
platform.
20m aerial articulated work platform XGA20 features
compact composition, obstacle-crossing, precise control, powerful driving and
easy operation.
The machine is simple, efficient, safe and reliable,
meeting demands of users from building construction, bridge and equipment
maintenance, shipyard and petrochemical industry and users from rental service.
Advantages and highlights:
1.Multi-directional precise position and excellent
extension.
2.The proportional valve being of self-adaptation method,
leading the products in the terms of adaptability.
3.Limitless angle in full work range, easy operation,
reliable.
4.Off-road wide tires and axle-balancing device enable
the machine to be excellently suitable for any terrain, with gradeability up to
45% ranking the top in industry.
5.The complete vehicle is compact. Before transportation,
the crank is retracted back, shortening the transportation length to only 7m.
6.Zero tail swing design could facilitate the entering of
narrow room and the storage.
|
Item |
Unit |
Parameter |
|
Overall length of complete machine |
mm |
9080 |
|
Overall width of complete machine |
mm |
2490 |
|
Overall height |
mm |
2680 |
|
Wheelbase |
mm |
2500 |
|
Max. working height |
m |
20.4 |
|
Max. platform height |
m |
18.4 |
|
Max. working range |
m |
11.9 |
|
Max. carrying weight |
kg |
230 |
|
Scope of luffing of No.1 arm |
° |
0~+70 |
|
Scope of luffing of Boom No.2 |
° |
0~+75 |
|
Crank arm luffing range |
° |
-65~70 |
|
Slewing angle of turntable |
° |
360 |
|
Max. Tail swing |
mm |
0 |
|
Dimension of platform |
mm |
1830×760×1150 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
10600 |
|
Max. traveling speed |
km/h |
6 |
|
Min. turning radius |
m |
6 |
|
Min. ground clearance |
mm |
230 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
355/55D625 |
|
|
Engine model |
Perkins 404D-22 |
|
|
Engine rated power |
kW/(r/min) |
38/(3000) |
