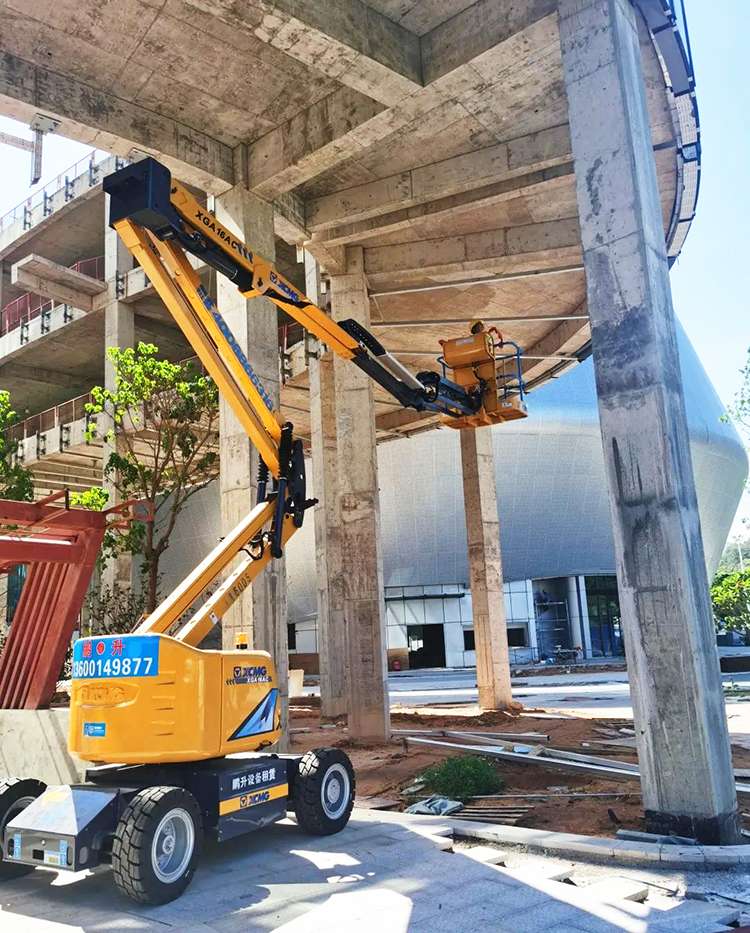

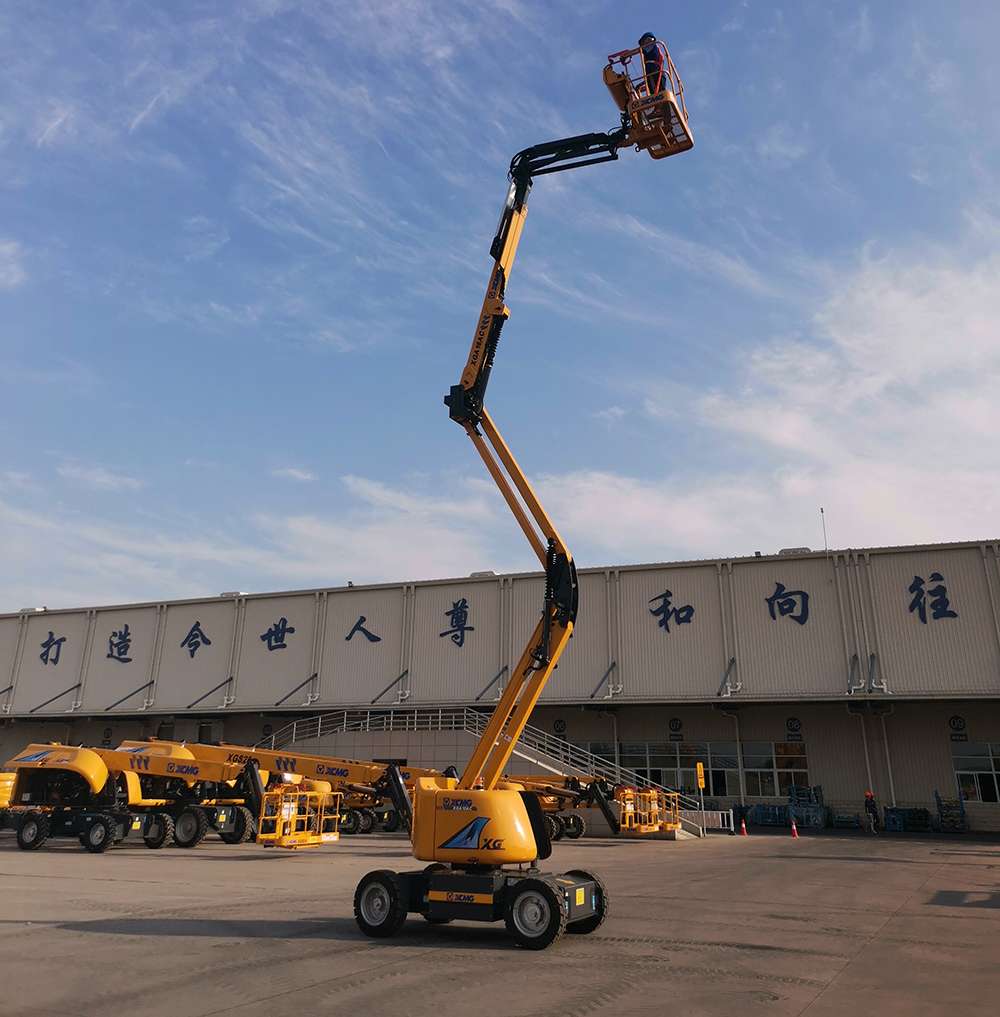

XCMG AWP 16m articulated aerial work platform XGA16AC
Summary
- Weight:6500kg
- Overall Dimension:6.42*1.75*2m
- Table Size:1.4*0.7m
- Max Lifting Height:16m
- Min Lifting Height:2m
- Rated Loading Capacity:227kg
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Articulated Lift
- Model Number:XGA16AC
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:6500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG AWP 16m articulated aerial work platform XGA16AC.
AWP articulated aerial work platform XGA16AC are
developed by XCMG, compact structures and vehicle body 1.75m wide.
Intelligent and perfect control system features the
humanized layout, the maintenance-free design and easy use and maintenance,
providing the multiple options and comprehensive safety.
Advantages and highlights:
1.Σ-shaped boom combine and zero tail swing design make
it more productive.
2.As small as 3.15m turning radius enables the machine to
work in narrow space.
3.48V and 420Ah large-capacity battery makes the cruising
ability longer.
4.Advanced AC motor driven technologies; steering
differential control technologies; powerful and steady actions; grade ability
up to 30%.
5.DC pump and proportional control technologies are
energy-saving and effective, making the work steadier and safer.
6.Environment friendly, zero emission, low noise,
traceless traveling, suitable for indoor construction.
|
Item |
Parameter |
|
Parameters of running state |
|
|
Overall
dimensions (L × W × H) |
6.42×1.75×2 m |
|
Working platform
overall dimensions |
1.4×0.7×1.15 m |
|
Max. speed |
5.2 km/h |
|
Max.
gradeability |
≥30% |
|
Min. external
turning radius |
≤3.15 m |
|
Ground
clearance/m (center) |
0.21 m |
|
Wheelbase |
2 m |
|
Total mass |
6500 kg |
|
Main Operation Performance Parameters |
|
|
Rated working
height |
15.5 m |
|
Max. platform
height |
13.8 m |
|
Max. working
range |
8 m |
|
Max. net
spanning height |
7.03 m |
|
Scope of
platform swing |
160° |
|
Slewing radius
of turntable |
0.875 m |
|
Max. load
capacity |
227 kg |
|
Max. rearward
slewing |
0 m |
|
Control system |
12V DC
proportional control |
|
Tire |
250-15 solid
tire, optional foam tire 240/55 D17.5 |
|
Power parameters |
|
|
Power source |
420 Ah/48 V DC |
|
Power unit |
4 kw/48 V DC |
|
Auxiliary power
unit |
2.2 kw/24 V DC |
|
Traveling motor |
3.3 kw/32 V AC |
