XCMG official 16m mobile electric articulated boom lift XGA16AC Aerial Work Platform price
![](/app/topc/statics/images/close.png)
![XCMG official 16m mobile electric articulated boom lift XGA16AC Aerial Work Platform price](http://www.machmall.com/images/store/357636/item/XGA16AC (8).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:6500kg
- Overall Dimension:6.42*1.75*2 m
- Table Size:1.4*0.7m
- Max Lifting Height:15.5m
- Rated Loading Capacity:227 kg
- Power:420 Ah/48 V DC
- Lift Drive / Actuation:Electric Motor
- Lift Mechanism:Articulated Lift
- Model Number:XGA16AC
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO
Specifications
- weight:6500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

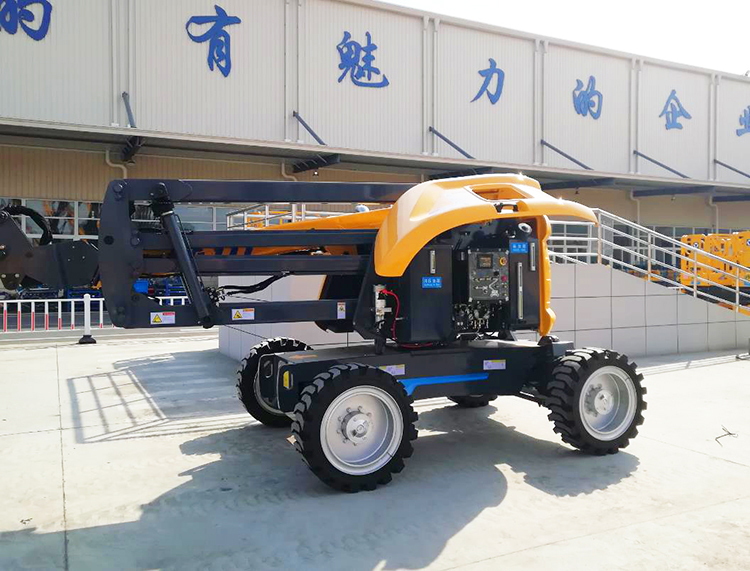

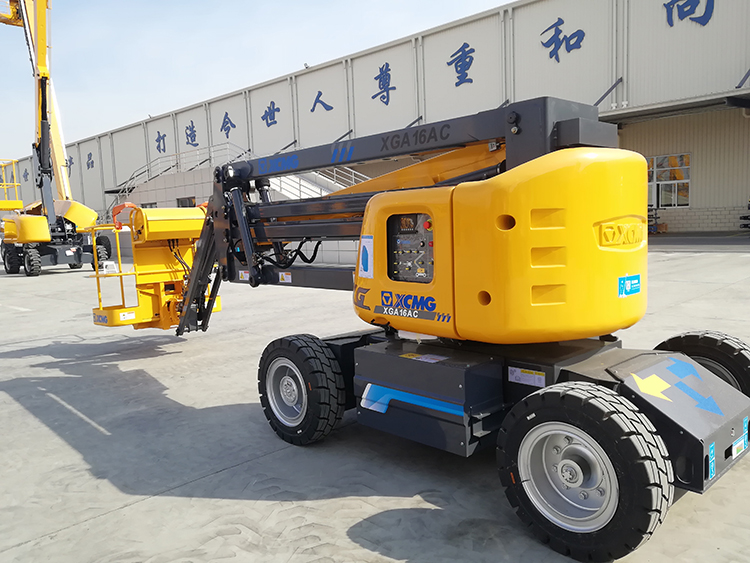

XCMG official 16m electric articulating boom lift XGA16AC.
Electric
articulated mobile elevating work platform are developed by XCMG, compact
structures and vehicle body 1.75m wide.
Intelligent
and perfect control system features the humanized layout, the maintenance-free
design and easy use and maintenance, providing the multiple options and
comprehensive safety.
Advantages and highlights:
*
Σ-shaped boom combine and zero tail swing design make it more productive.
*
As small as 3.15m turning radius enables the machine to work in narrow space.
*
48V and 420Ah large-capacity battery makes the cruising ability longer.
*
Advanced AC motor driven technologies; steering differential control
technologies; powerful and steady actions; grade ability up to 30%
*
DC pump and proportional control technologies are energy-saving and effective,
making the work steadier and safer.
*
Environment friendly, zero emission, low noise, traceless traveling, suitable
for indoor construction.
Item |
Parameter |
Parameters of traveling state |
|
Overall dimensions (L × W × H) |
6.69×2.26×2.13 m |
Working platform overall dimensions |
1.83×0.76×1.15 m |
Max. speed |
6.12 km/h |
Max. gradeability |
≥30%(2WD) ≥45%(4WD) |
Min. external turning radius |
≤4.5m |
Ground clearance/m (centre) |
0.41 m |
Wheelbase |
2.1 m |
Total mass |
6900 kg |
Main Operation Performance Parameters |
|
Rated working height |
16.05m |
Max. platform height |
14.05m |
Max. working range |
8.22m |
Max. net spanning height |
7.14 m |
Scope of luffing of No. 1 arm |
0°~60° |
Scope of luffing of No. 2 arm |
-9°~75° |
Scope of crank arm luffing |
-60°~80° |
Scope of platform swing |
160° |
Slewing angle |
355° discontinuous slewing |
Slewing radius of turntable |
1.145 m |
Max. Load capacity |
230 kg |
Max. Tail swing |
0 m |
Control system |
12V DC proportional control |
Emergency control unit |
12V DC battery |
Tire |
33×12-20 off-road solid type (optional: 315/55 D20
off-road foam tire) |
Weighing detection |
Standard configuration |
Axle balance system |
Standard configuration |
Working speed |
|
Platform lifting/lowering speed |
0.1~0.3m/ s |
Extending/Retracting speed of Boom No.2 |
0.1~0.3m/ s |
Slewing speed |
0.5~1r/min |
Engine Parameters |
|
Engine manufacturer |
British Perkins / Germany Deutz |
Engine model |
Perkins 404D-22/ Deutz D2011 L03i |
Engine rated power |
38KW/3000rpm, 36.3KW/2800rpm |
