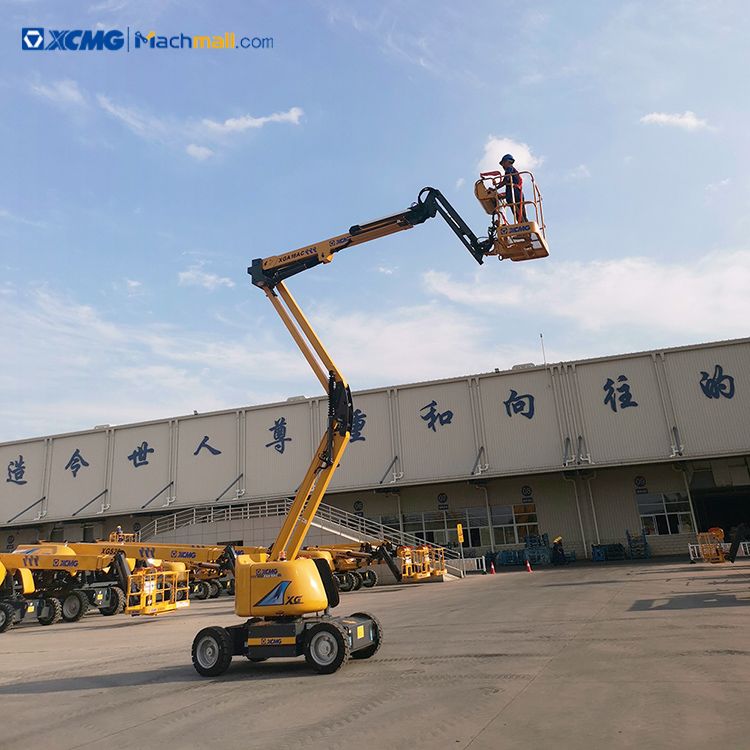

XCMG 16m AWP XGA16 electric articulated boom aerial work platform price
Summary
- Weight:6900kg
- Overall Dimension:6.69*2.26*2.13m
- Table Size:1.83*0.76m
- Max Lifting Height:16.05m
- Rated Loading Capacity:230kg
- Power:38KW
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Articulated Lift
- Model Number:XGA16
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:6900.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 16m AWP XGA16 electric articulated boom aerial work
platform.
XGA16 16m electric articulated boom AWP aerial work
platform aiming to satisfy customers’ requirements. Intelligent and perfect
control system features the humanized layout, the maintenance-free design and
easy use and maintenance, providing the multiple options and comprehensive
safety.
Advantages and highlights:
1.Σ-shaped boom, compact and flexible, able to ascend and
descend vertically or extend horizontally to cross obstacles;
2.Compact and narrow turntable eliminates tail swing and
improves operation efficiency;
3.Work platform is enabling to extend out, enlarging the
work space, together with the foldable fence making the transportation easier;
4.Full - range work; direct and friendly control panel
easy to control;
5.Platform overloading warning, emergent lowering, safety
speed limit, flexible start/stop technologies.
|
Item |
XGA16 |
|
Parameters of
traveling state |
|
|
Overall
dimensions (L × W × H) |
6.69×2.26×2.13 m |
|
Working platform
overall dimensions |
1.83×0.76×1.15 m |
|
Max. speed |
6.12 km/h |
|
Max.
gradeability |
≥30%(2WD)
≥45%(4WD) |
|
Min. external
turning radius |
≤4.5m |
|
Ground
clearance/m (center) |
0.41 m |
|
Wheelbase |
2.1 m |
|
Total mass |
6900 kg |
|
Main Operation
Performance Parameters |
|
|
Rated working
height |
16.05m |
|
Max. platform
height |
14.05m |
|
Max. working
range |
8.22m |
|
Max. net
spanning height |
7.14 m |
|
Scope of
platform swing |
160° |
|
Slewing radius
of turntable |
1.145 m |
|
Max. Load
capacity |
230 kg |
|
Max. Tail swing |
0 m |
|
Control system |
12V DC
proportional control |
|
Working speed |
|
|
Platform
lifting/lowering speed |
0.1~0.3m/ s |
|
Slewing speed |
0.5~1r/min |
|
Engine
Parameters |
|
|
Engine
manufacturer |
British Perkins
/ Germany Deutz |
|
Engine model |
Perkins 404D-22/
Deutz D2011 L03i |
|
Engine rated
power |
38KW/3000rpm,
36.3KW/2800rpm |
